GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-10 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-3 17 INCH LCDMON ASSY

8-2-3-1 Tools

•L wrench

8-2-3-2 Preparation

• Shut down the system and switch off the main breaker

8-2-3-3 17" LCDMON ASSY Replace Procedure

1.) Remove the LCD Cable cover.

2.) Unscrew 1 screw (2306565,BH M4 x 16WHT) to remove the power code bracket assembled under

the LCD cable cover.

3.) Disconnect power and DVI cable.

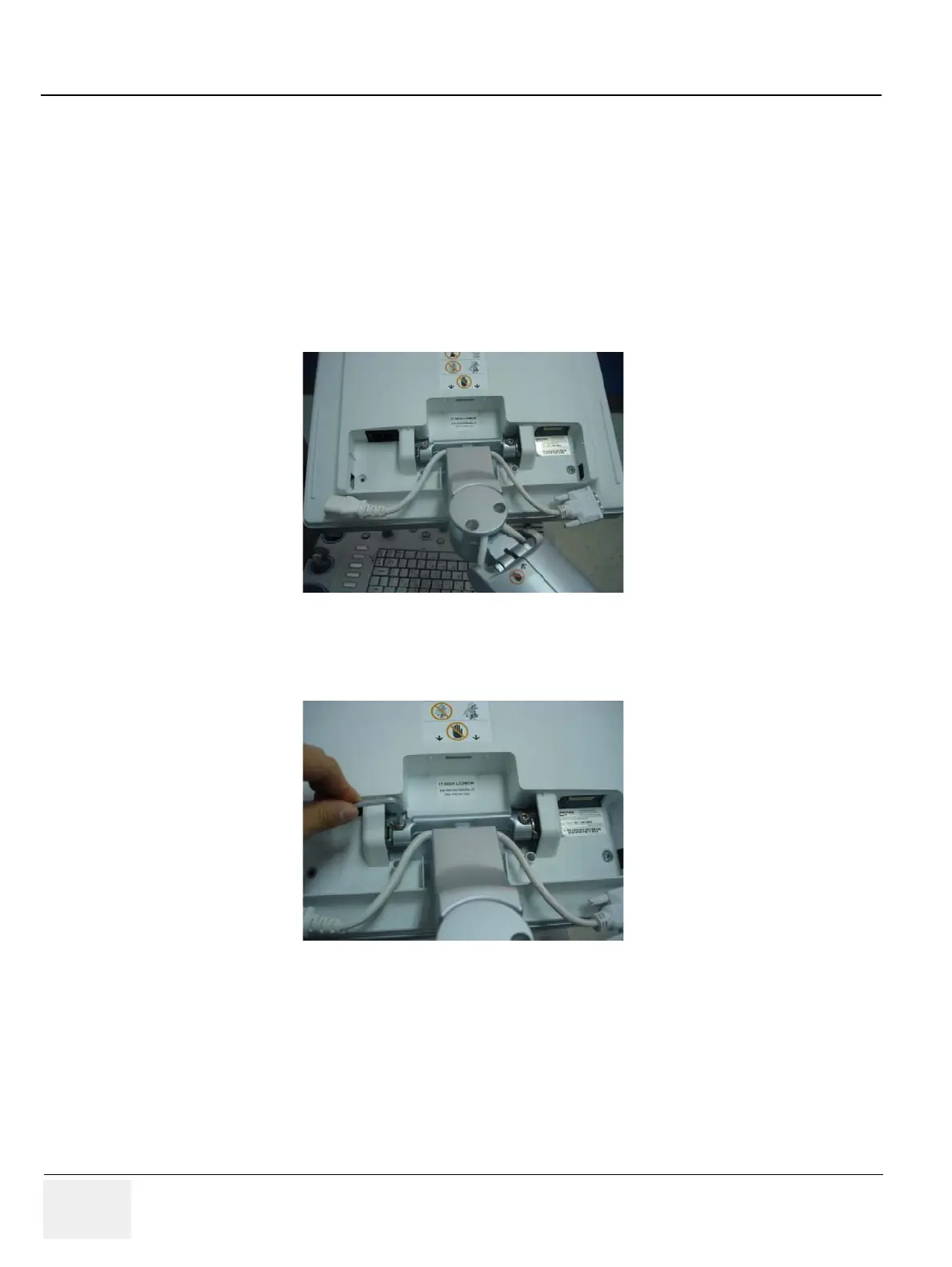

Figure 8-14 Removing the LCD Cable Cover
