8-2-36 Probe Holder
8-2-36-1 Tools
• No need tool
8-2-36-2 Removal procedure
1.) Remove the probe holders from the Keyboard.
2.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-36-3 Mounting Procedure
Install the new parts in the reverse order of removal.

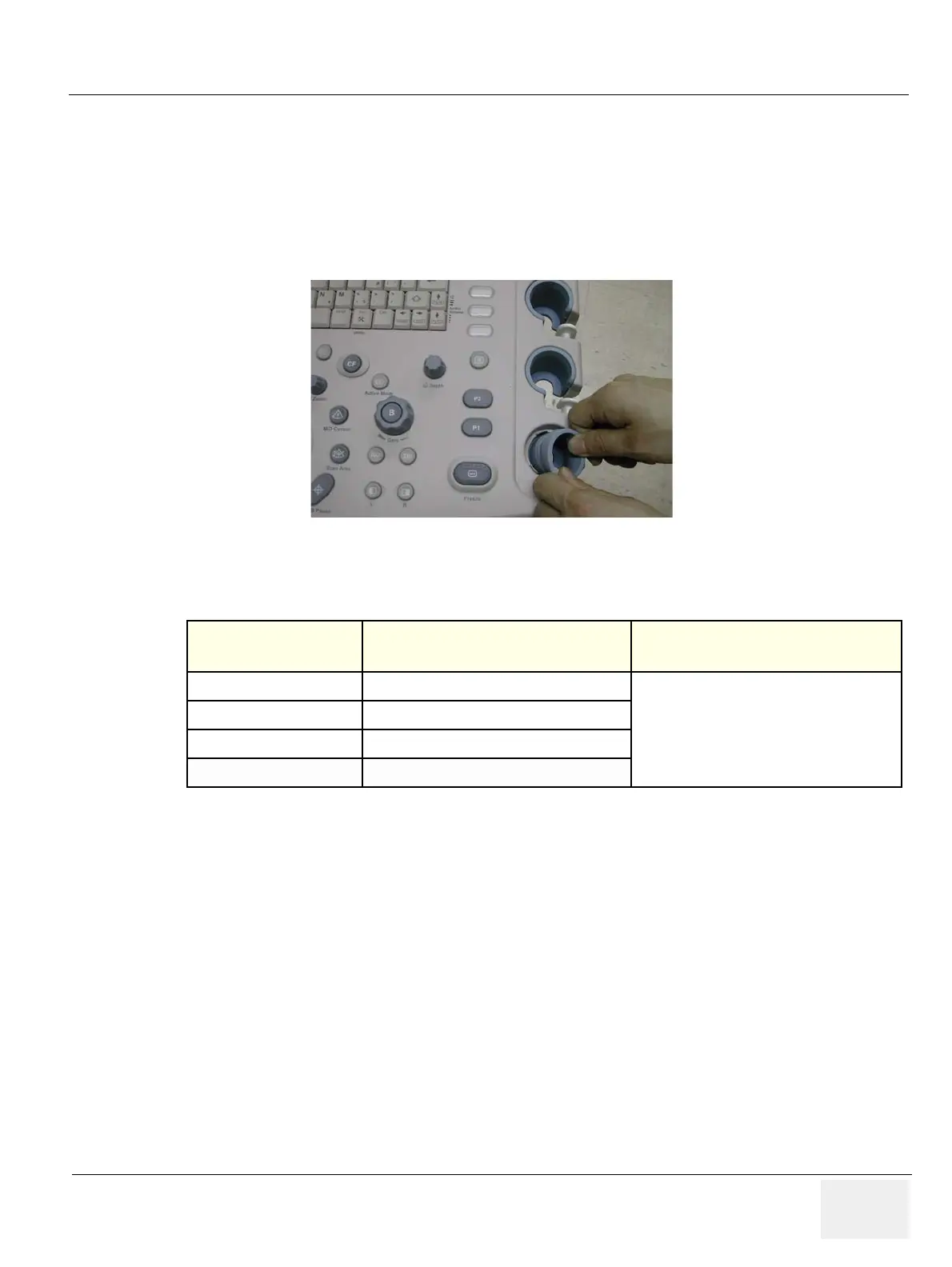

Figure 8-124 Probe Holders
Table 8-37 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394152, Rev 1+, Section 8-2-36. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
