GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-95

8-2-44 ACPC II Assy

8-2-44-1 Tools

• Common Phillips screwdrivers

• Allen/Unbraco wrench

• Stubby screwdriver (Flat tip and Cross tip)

8-2-44-2 Preparations

• Shut down the system and switch off the main breaker.

8-2-44-3 Removal procedure

1.) Remove the AC Input Box Assy. Refer to the 8-2-42 "ARP II Assy 110V/220V" on page 8-91.

2.) Disconnect 5 connectors.

3.) Unscrew 5 screws to remove the ACPC Assy.

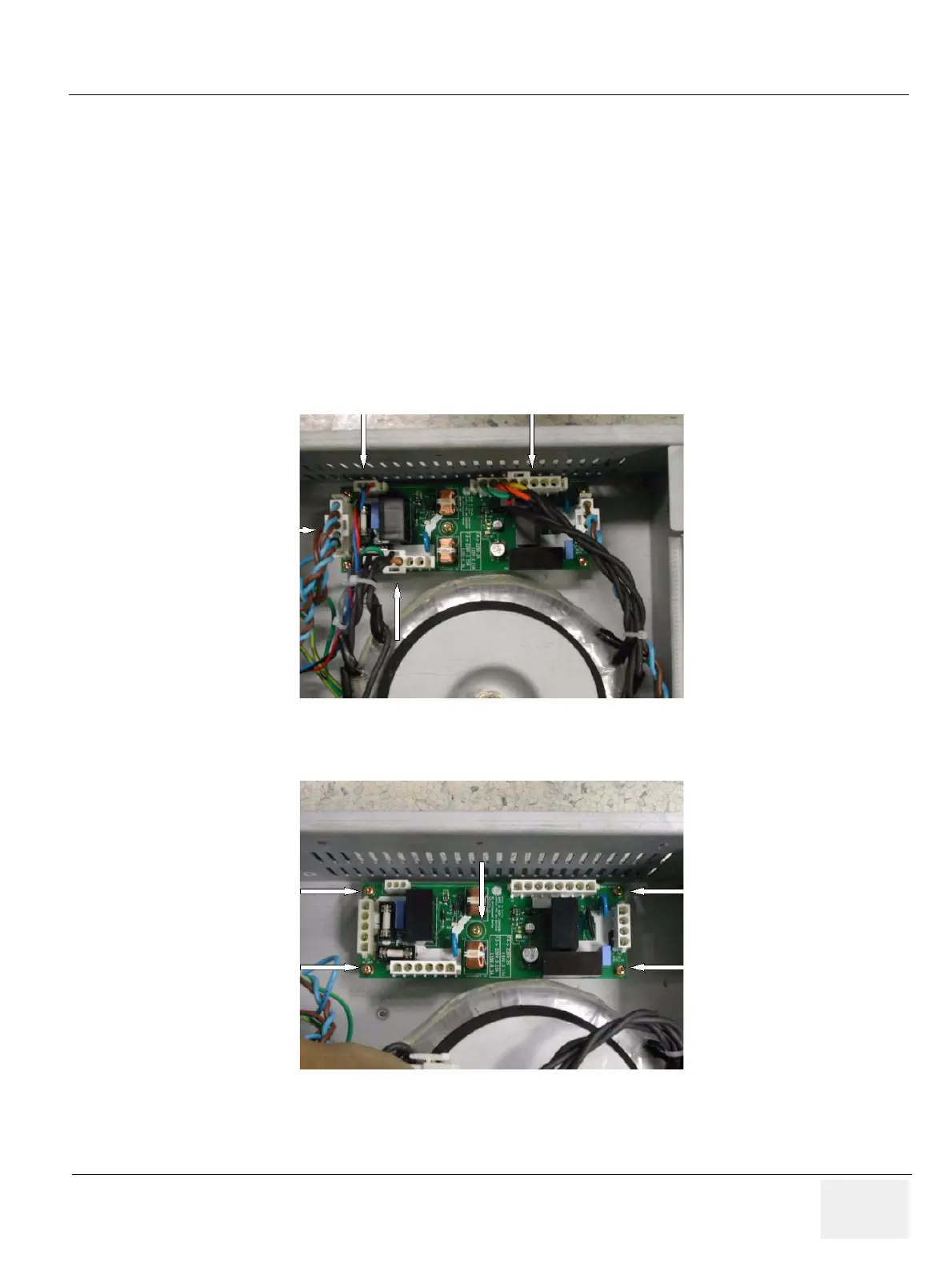

Figure 8-139 ACPC in Transbox

Figure 8-140 Screws of ACPC assy
