GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-53
8-2-17 Middle Cover
8-2-17-1 Tools
• Common Phillips screwdrivers
• Stubby screwdriver (Flat tip and Cross tip)
8-2-17-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-17-3 Removal procedure
1.) Remove the Left and Right side covers. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-48
2.) And remove the Rear Cover. Refer to the 8-2-16 "Rear Cover" on page 8-52.
3.) Remove 2 rubber caps and the two screws from the top of the middle cover of the system.
4.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-17-4 Mounting Procedure
Install the new parts in the reverse order of removal.

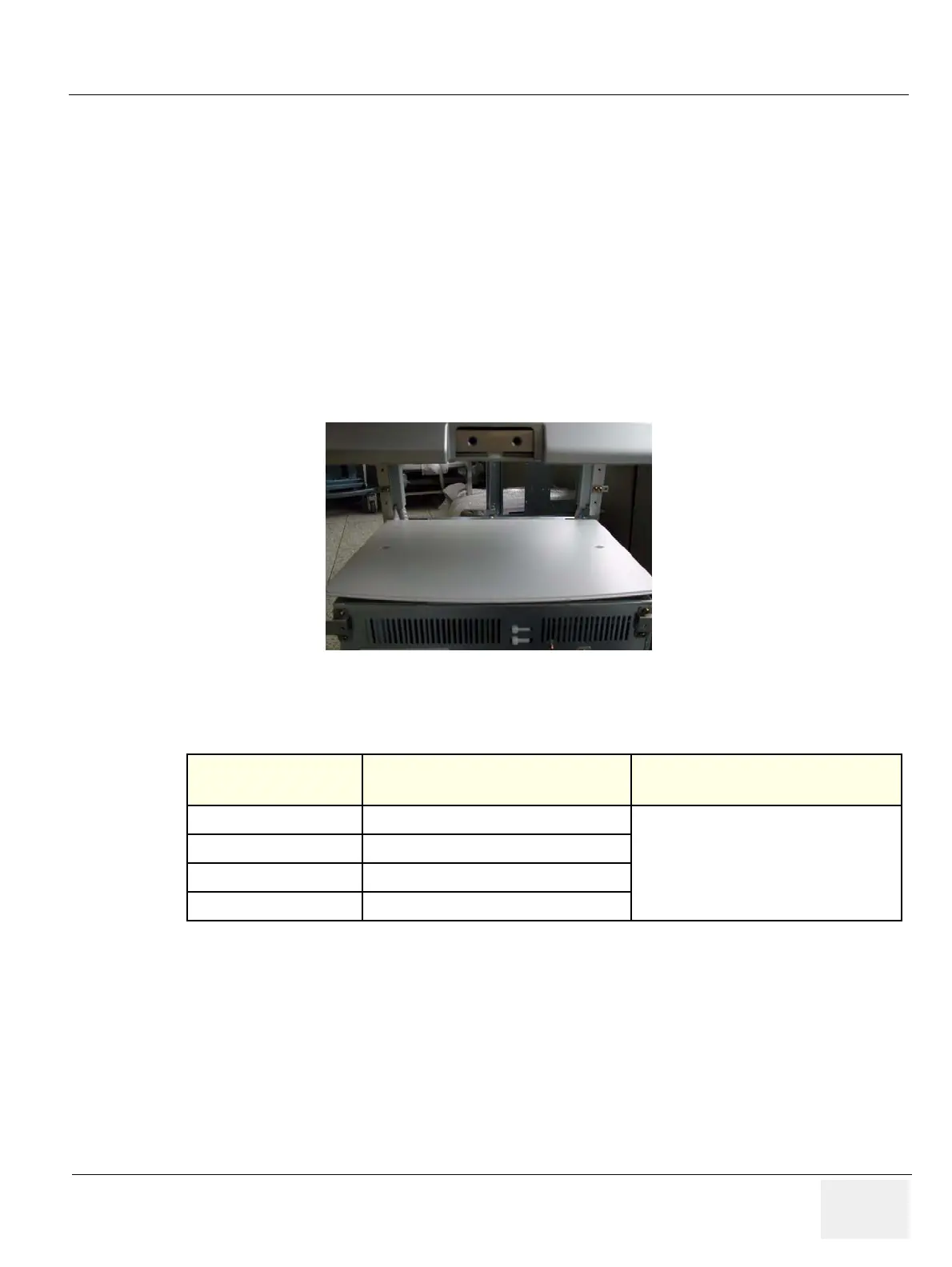

Figure 8-92 2 rubber cap of middle cover
Table 8-18 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394152, Rev 1+, Section 8-2-17. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
