GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-66 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-26 DTRX64II Assy

8-2-26-1 Tools

• Common Phillips screwdrivers

8-2-26-2 Preparations

• Shut down the system and switch off the main breaker.

8-2-26-3 Removal procedure

1.) Remove the Side Right Cover. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-48.

2.) Remove the EMI Cover R. Refer to the 8-2-24 "EMI Cover L and R" on page 8-63.

3.) Unscrew 2 screws (1-2) and eject the PCB.

4.) The DTRX64II Assys are settled in #1 and #2 slots in nest box.

5.) Pull the DTRX64II assy(s) out.

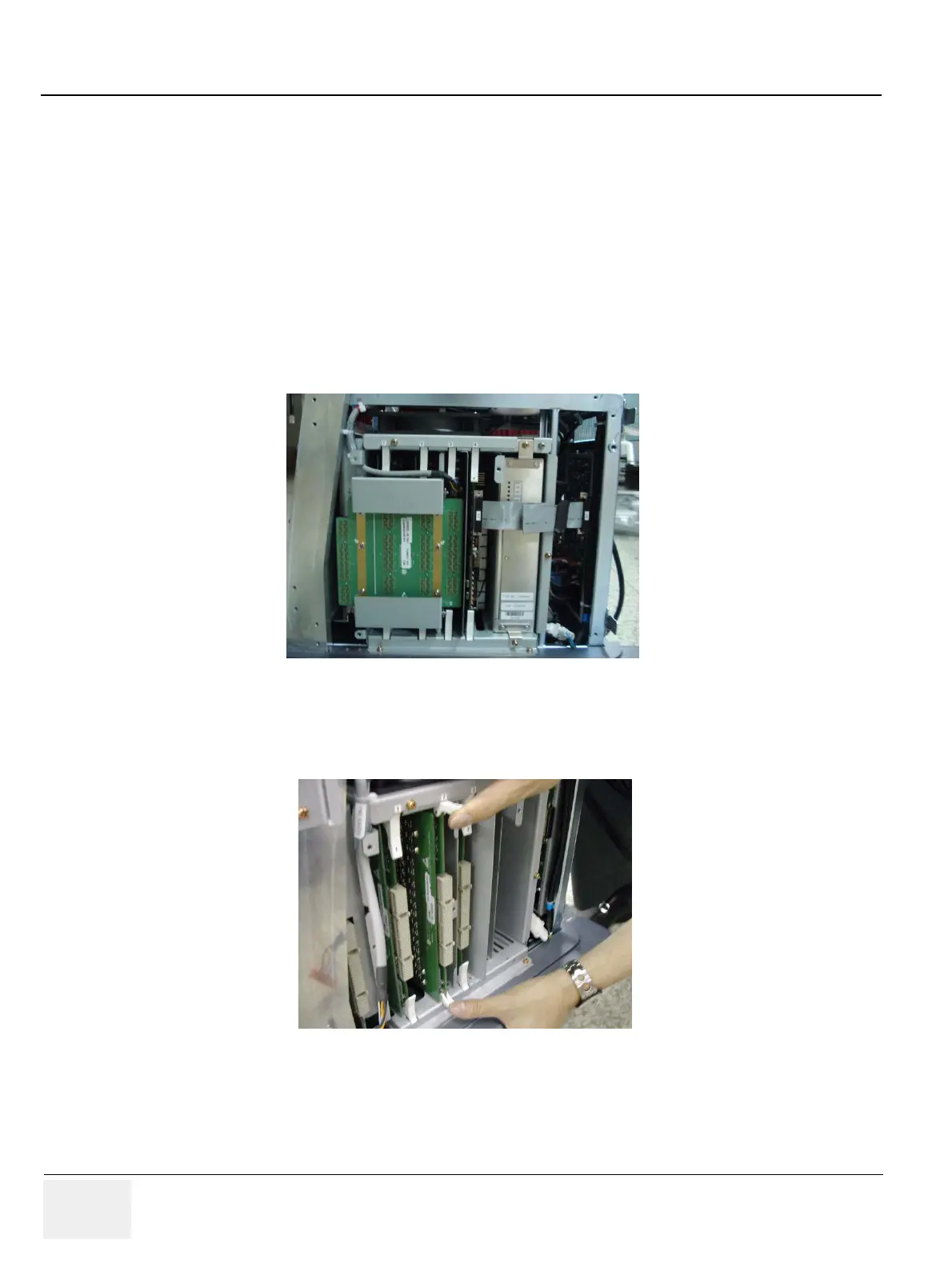

Figure 8-105 Eject RFC Assy

Figure 8-106 DTRX64II Assy
