GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-41
8-2-9 English, Greek, Russian, Swedish, Norwegian A/N Key assy
8-2-9-1 Tools
• Common Phillips screwdrivers
8-2-9-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-9-3 Removal procedure
1.) Remove the Main Keyboard Assy. Refer to the 8-2-6 "Main Keyboard Assy" on page 8-37.
2.) Remove USB PCB by unscrewing 6 screws (1-6) and disconnecting the 6 cables.

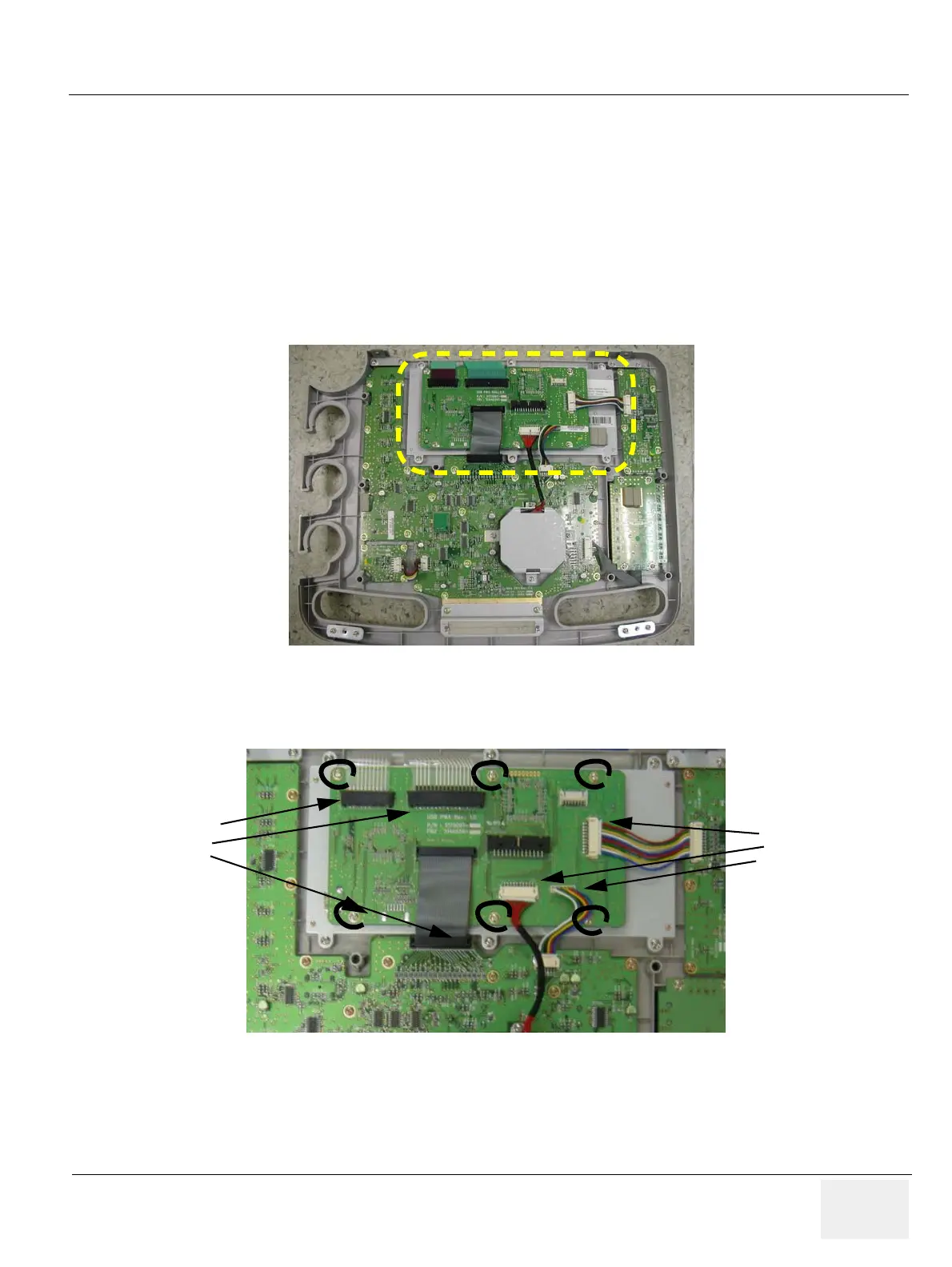

Figure 8-76 A/N Key in keyboard
Figure 8-77 USB PCB
Connectors
1 ~ 3
Connector 3
4~ 6
To Next Page
