DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-52 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-16 Rear Cover
8-2-16-1 Tools
• Common Phillips screwdrivers
8-2-16-2 Preparations
• Shut down the system, and switch off the main breaker.
8-2-16-3 Removal procedure
1.) Remove the Left and Right side covers. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-48
2.) Remove 4 rubber caps and the 4 screws from the rear cover.
3.) Remove the Rear Cover.
4.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-16-4 Mounting Procedure
Install the new parts in the reverse order of removal.

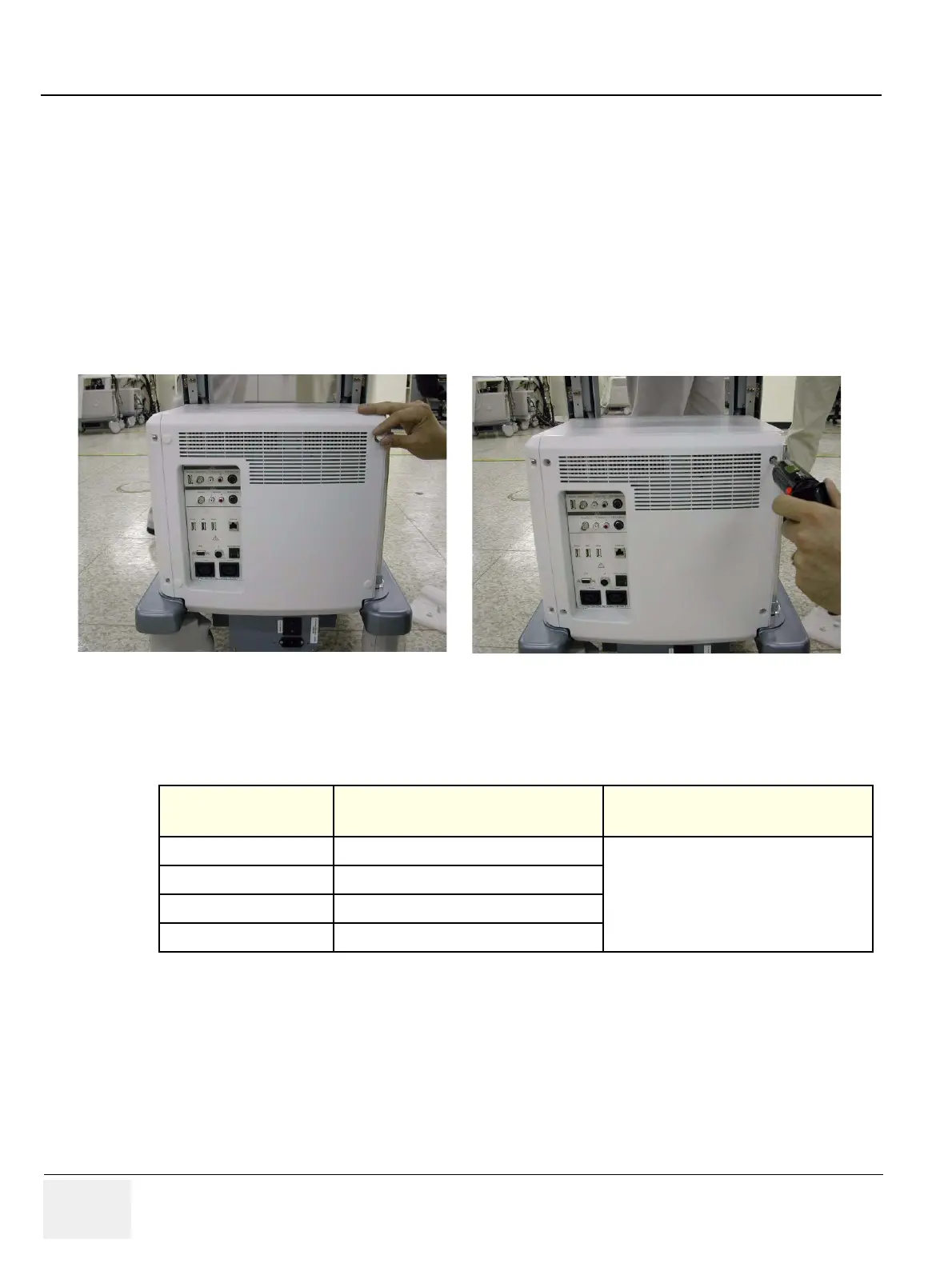

Figure 8-91 4 rubber caps and 4screws on Rear Cover
Table 8-17 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394152, Rev 1+, Section 8-2-16. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
