GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 7 - Page 7-13

Section 7-6

Diagnostics

As described in - Components and Functions (Theory), the service platform uses a web-based user

interface (UI) to provide access to common service components.

The Diagnostic home page displays a listing of test categories consisting of Common Diagnostics, and

LOGIQ™ P6/P6 Pro Diagnostics. Expand the desired main category to select groups or individual tests.

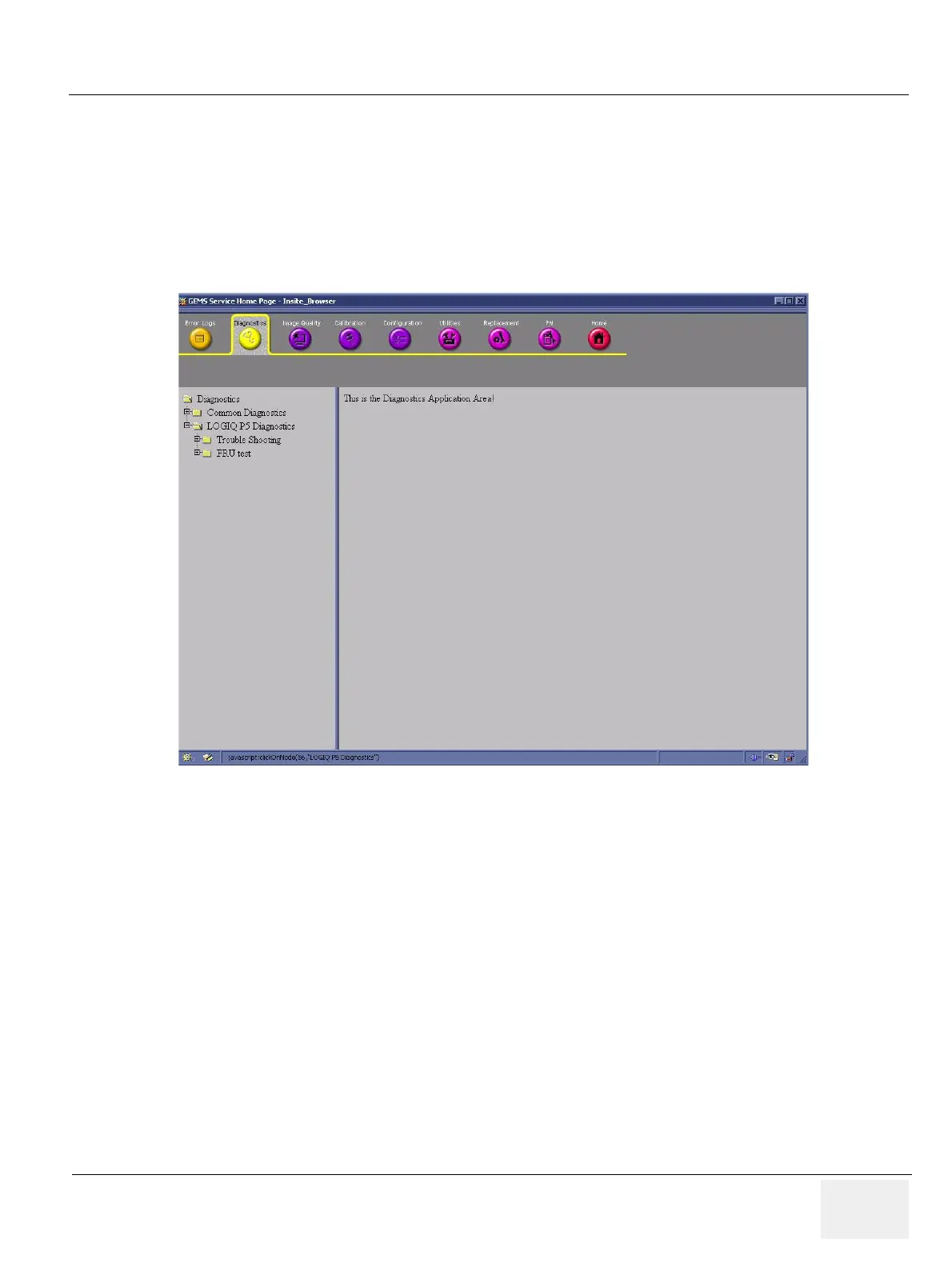

Figure 7-11 Global Service User Interface Diagnostic Screen
