GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-68 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-27 P3RLY/PI128II Assy

8-2-27-1 Tools

• Common Phillips screwdrivers

8-2-27-2 Preparations

• Shut down the system and switch off the main breaker.

8-2-27-3 Removal procedure

1.) Remove the side left and right covers. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-48.

2.) Remove the Front Cover. Refer to the 8-2-15 "Front Cover" on page 8-50.

3.) Remove the RFC Assy. Refer to the 8-2-32 "RFC Assy" on page 8-78.

4.) Unscrew 8 screws (1-8) and remove the metal cover.

5.) Unscrew 6 screws (1~6, white arrow marked).

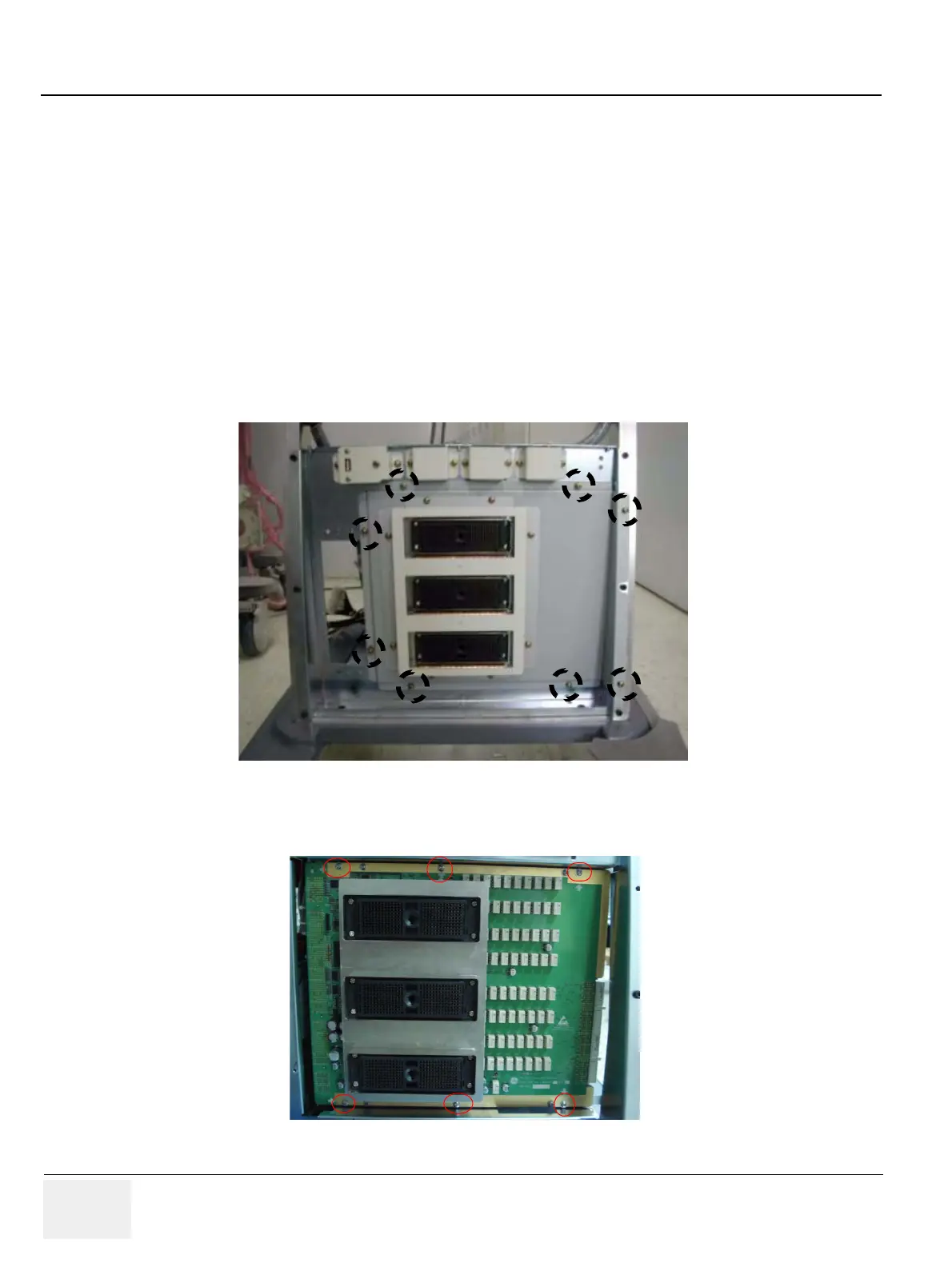

Figure 8-107 P3RLY/PI128II Cover

Figure 8-108 P3RLY/PI128II Assy
