GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-169

8-7-10 Printer VCR DVD Fixture Top installation - UP23MD Printer

1.) Unscrew 2 existing screws from the top cover.

2.) Install Fixture DVD bot bracket on the top cover by screwing 2 screws(2327592, FH M4x14 YEL).

3.) Install color printer to the DVD top bracket by screwing 4 screws(2306562, FH M3x6 YEL).

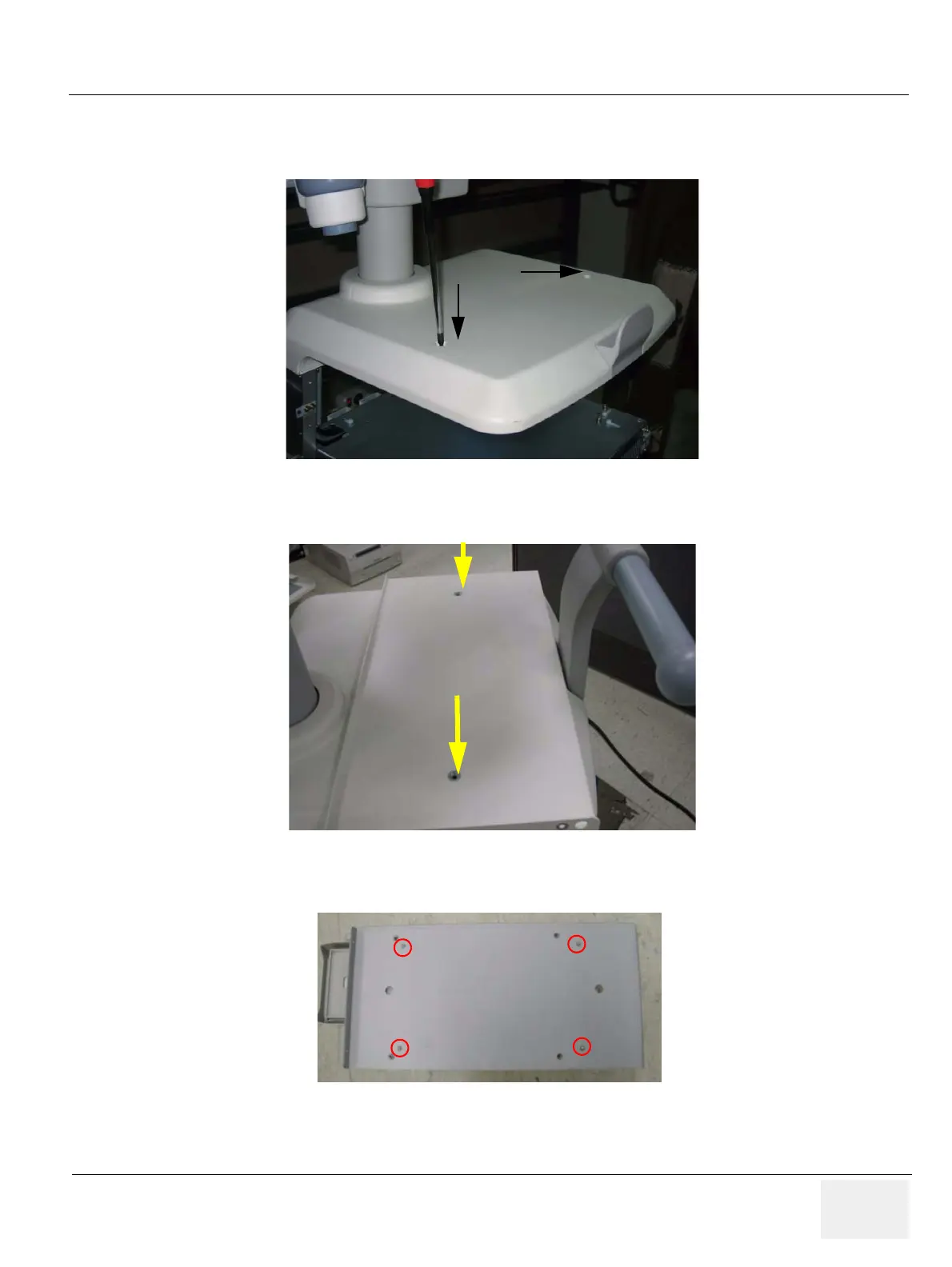

Figure 8-263 Printer VCR DVD Fixture installation top

Figure

8-264 Printer VCR DVD Fixture installation top

Figure 8-265 Printer VCR DVD Fixture installation top
