DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-50 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-15 Front Cover

8-2-15-1 Tools

• Common Phillips screwdrivers

8-2-15-2 Preparations

• Shut down the system and switch off the main breaker.

8-2-15-3 Removal procedure

1.) Remove the Left and Right side covers. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-48

2.) Remove the dummy left and right covers.

3.) Remove the two screws on each side of the back of the front cover.

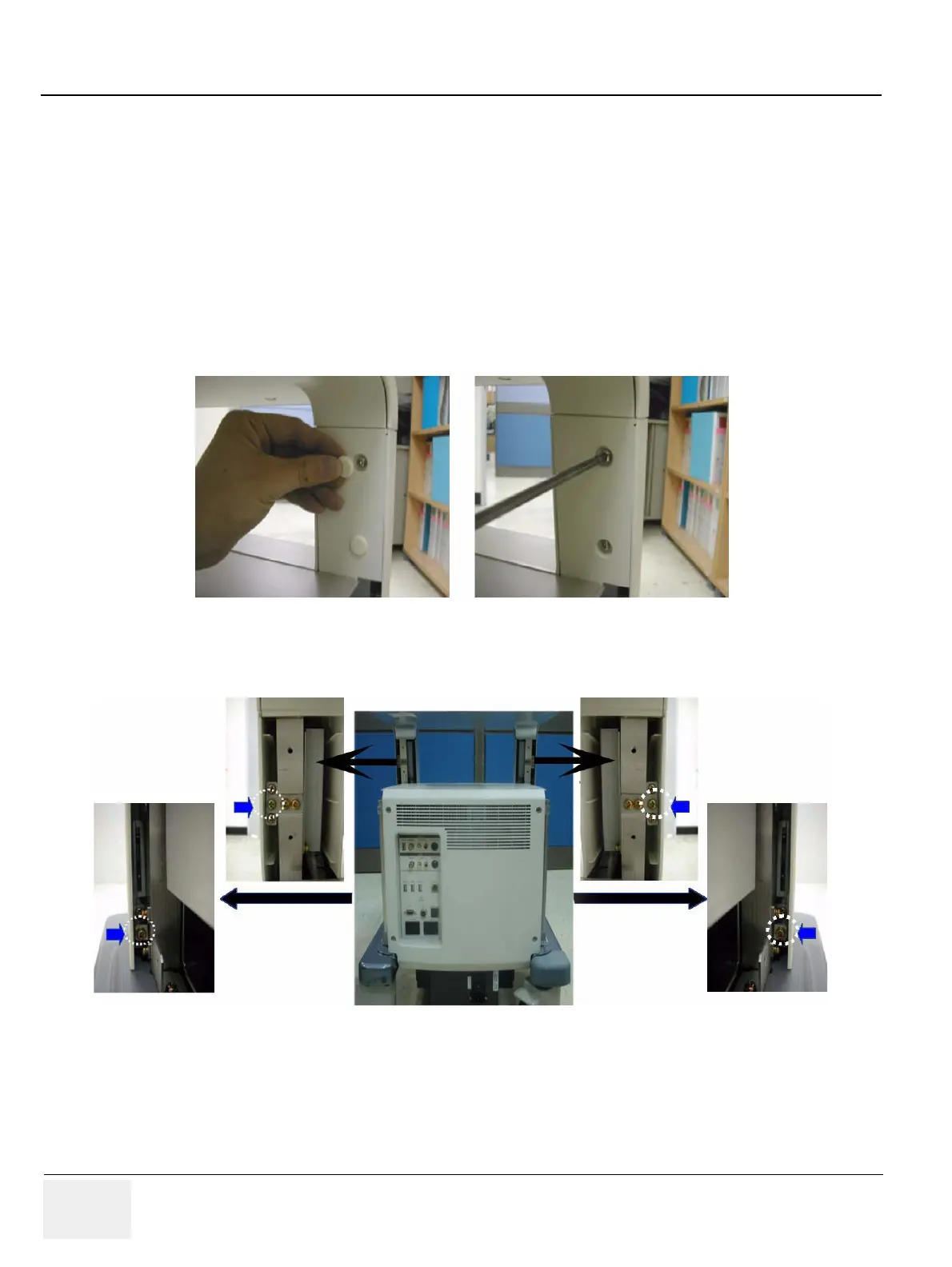

Figure 8-88 Screws of Dummy Cover

Figure 8-89 Screws of the front cover
