GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-149

8-6-2-2 Software Reloading

1.) The Base S/W load starts automatically immediately after boot up

2.) After finishing C: partition reloading, the system restarts automatically.

3.) When the system restarts, an application installation starts automatically.

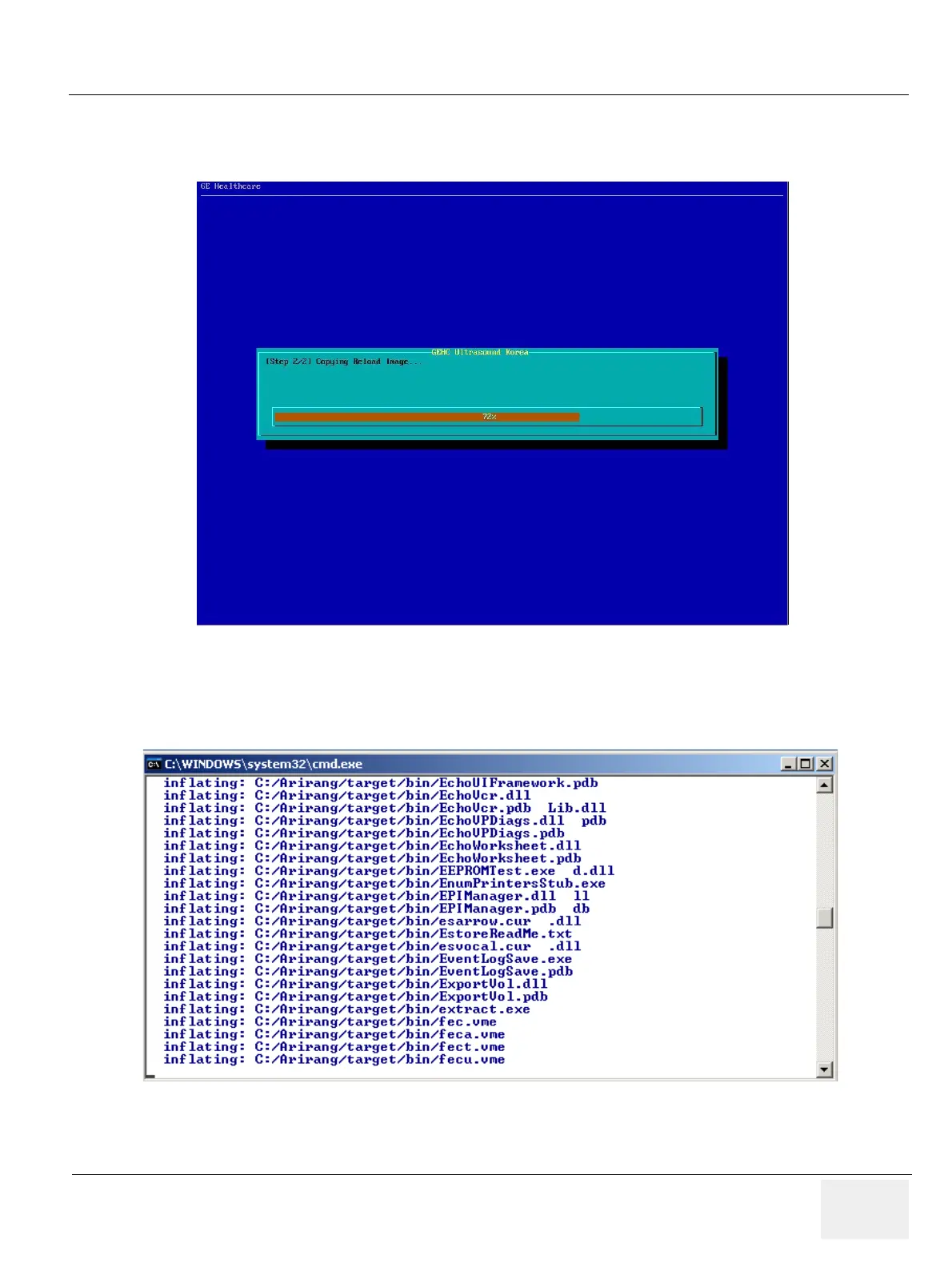

Figure 8-224 Reloading C:\ partition from Reloading Ghost Image

Figure 8-225 Application installation
