GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 5-42 Section 5-1 - Overview

Section 5-10Fast Polling

5-10-1 General

This describes Fast Polling feature that will change the polling rate to 15 seconds for 10 minutes.

5-10-2 Enabling Fast Polling

1.) Right Click on “Connect to GE” icon.

Pressing “OK” will change the polling rate to 15 seconds for 10 minutes.

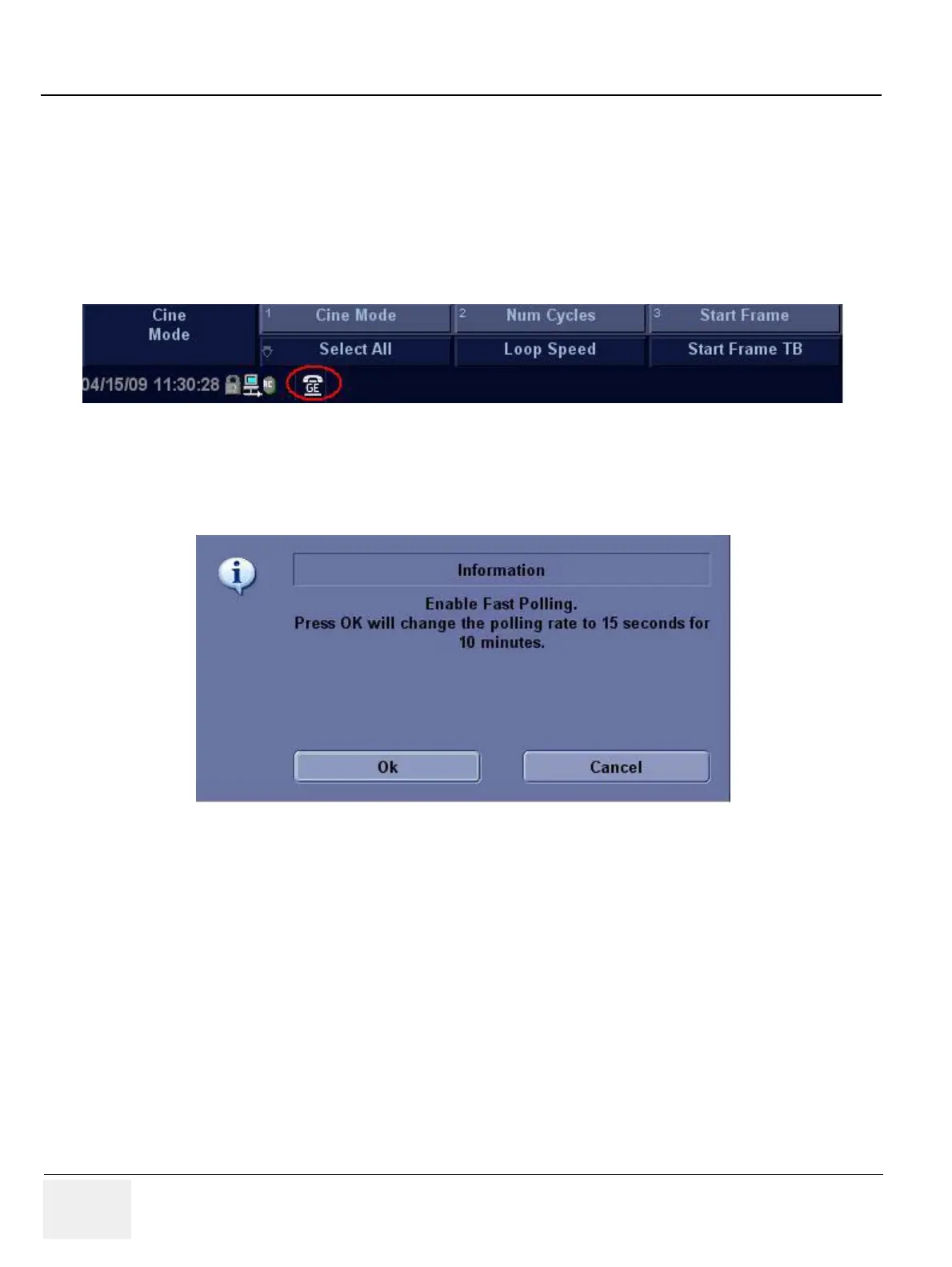

Figure 5-47

Figure 5-48 Agent Configuration
