GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-46 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-12 Sub Keyboard Encoder Knob Set
8-2-12-1 Tools
• Common Phillips screwdrivers
8-2-12-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-12-3 Removal procedure
1.) Remove all the Encoder Knobs from the keyboard.
2.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-12-4 Mounting Procedure
Install the new parts in the reverse order of removal.

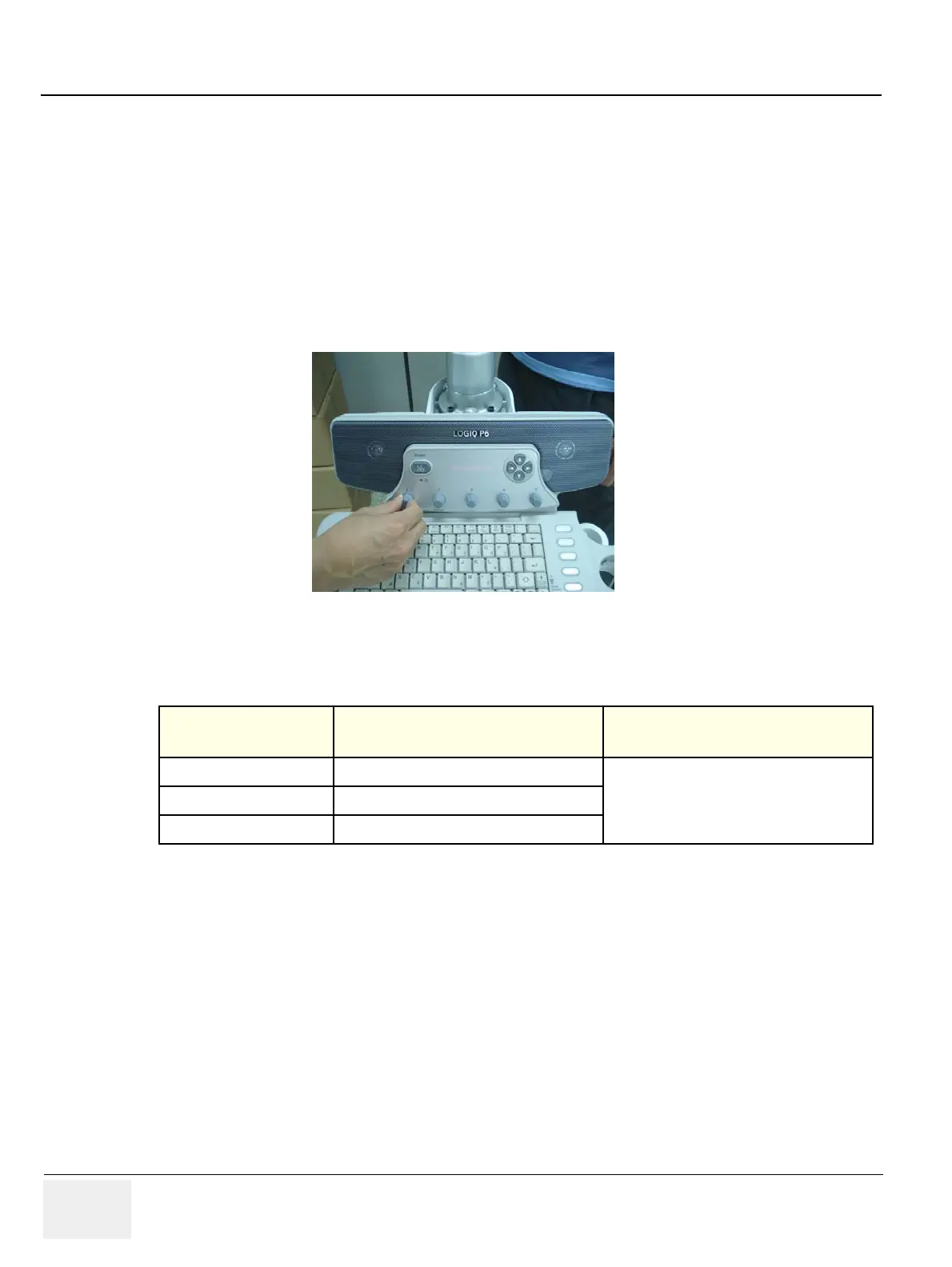

Figure 8-84 Knob in Sub Keyboard
Table 8-13 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394152, Rev 1+, Section 8-2-12. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-7-7
Sub Keyboard Encoder Knob Set validation
