GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-171

8-7-11 Color Printer Fixture Top Installation - UP-D25MD Printer

1.) Unscrew 2 existing screws from the top cover.

2.) Connect the USB cable and Power cable to the Color Printer.

3.) Install Fixture DVD bot bracket on the top cover by screwing 2 screws (2327592, FH M4x14).

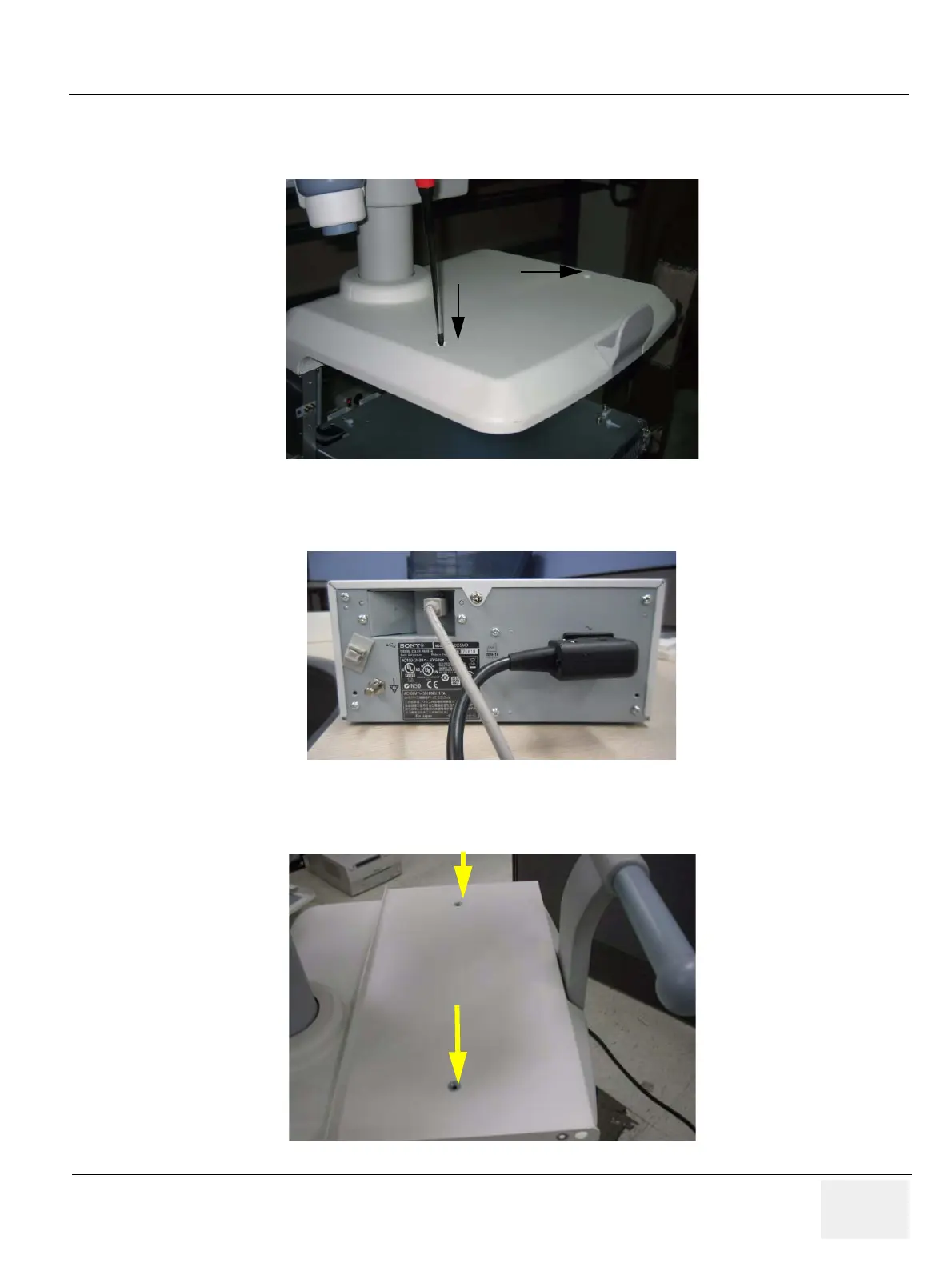

Figure 8-268 Color Printer Fixture Top Installation

igure 8-269 Color Printer Fixture Top Installation

Figure 8-270 Color Printer Fixture Top Installation
