GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-12 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-4 New Articulation arm with cover installation Procedure

8-2-4-1 Tools

• Common Phillips screwdrivers

• Allen/Unbraco wrench

• Stubby screwdriver (Flat tip and Cross tip)

8-2-4-2 Preparations

• Shut down the system and switch off the main breaker.

• Maneuver control console to a suitable position for removing the monitor.

8-2-4-3 Removal procedure

1.) Remove the LCD cable cover.

2.) Unscrew 1 screw (2306565, BH M4x16 WHT) to remove the power cord bracket assembled under

the LCD cable cover.

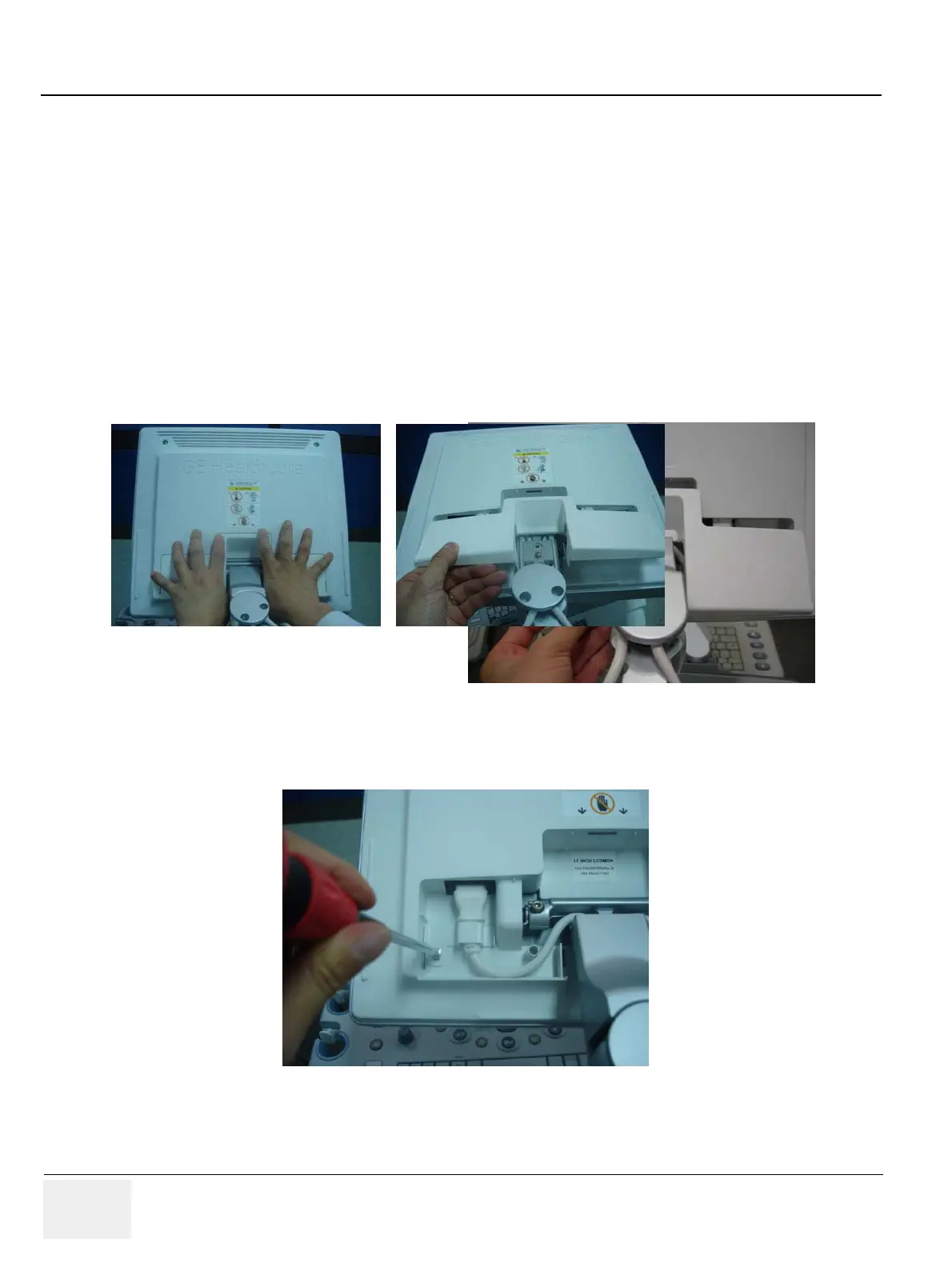

Figure 8-17 Removing the LCD cable cover

Figure 8-18 Removing the power cord bracket
