GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-81
8-2-34 Rear Handle
8-2-34-1 Tools
• Common Phillips screwdrivers
• Allen/Unbraco wrench
8-2-34-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-34-3 Removal procedure
1.) Unscrew 1 screw. Remove the Handle Dummy brkt.
2.) Unscrew 2 screws (1-2) from the back of the rear handle.
3.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-34-4 Mounting Procedure
Install the new parts in the reverse order of removal.

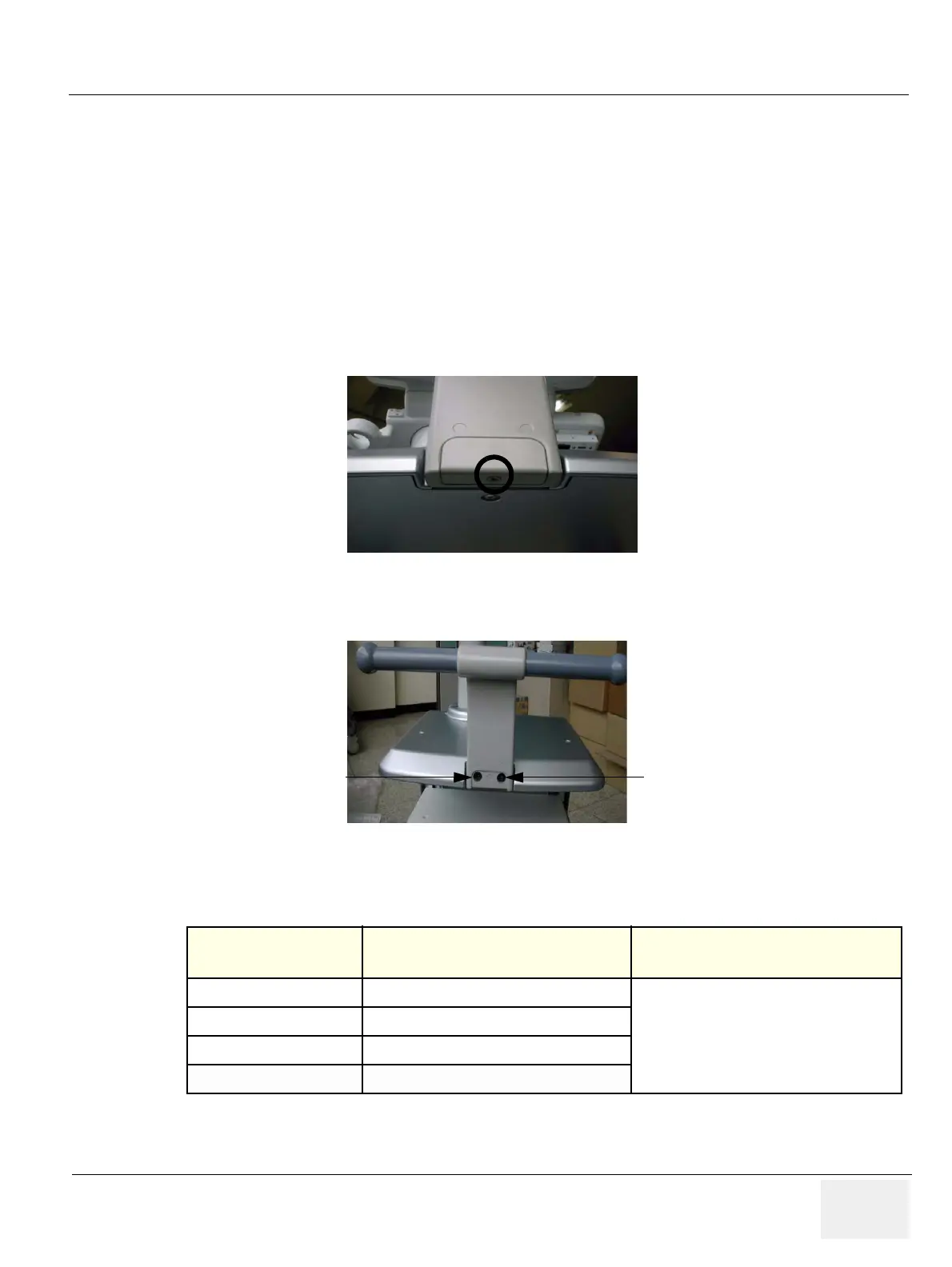

Figure 8-120 Handle Dummy Bracket
Figure 8-121 Rear Handle
Table 8-35 Functional Tests
Service Manual
Section Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394152, Rev 1+, Section 8-2-34. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
(1)
(2)
