GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-177

8-7-13 Printer VCR DVD Fixture Top Installation (MD-3000)

8-7-13-1 VCR Remote Port Configuration

1.) LOGIQ™ P6/P6 Pro control the Mitsubishi MD-3000 VCR through USB. Hence the VCR remote

control port must be configured as USB

2.) Open the remote control module in the VCR.

3.) Unscrew 2 screws on the VCR remote control port panel and out the remote control module from

VCR. Unscrew 1 screw on the module.

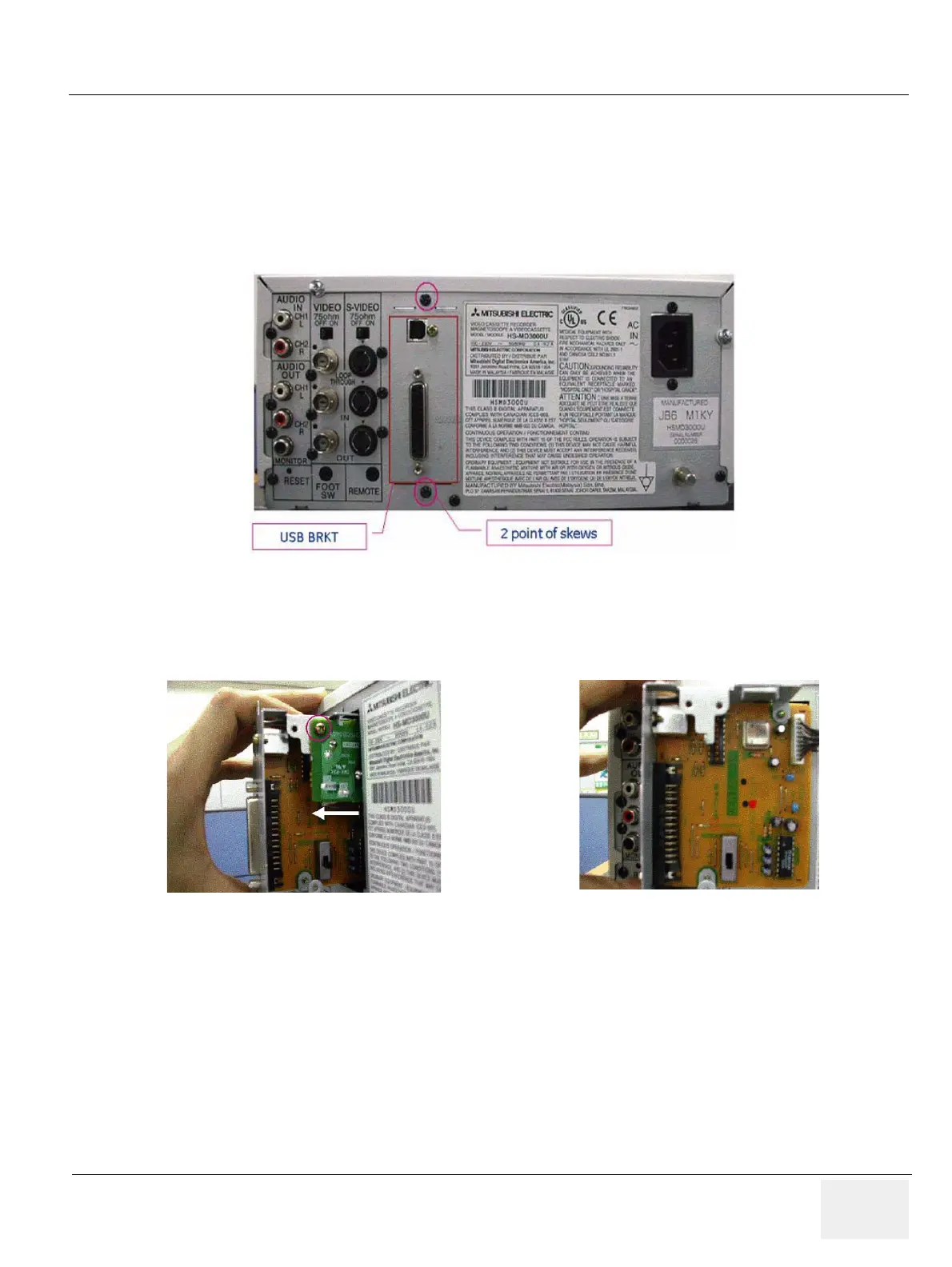

Figure 8-282 VCR Remote Control Panel

Figure 8-283 VCR Remote Control Panel 2
