GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-182 Section 8-7 - Mechanical Option Installation instruction

8-7-14 Printer VCR DVD Fixture Top Installation (MD-800)

1.) Unscrew 2 existing screws from the top cover.

2.) Install Fixture DVD bot bracket on the top cover by screwing 2 screws(2327592, FH M4x14 YEL).

3.) Install Fixture Top bracket on the top cover by screwing 4 screws(2373565, FH M4x20).

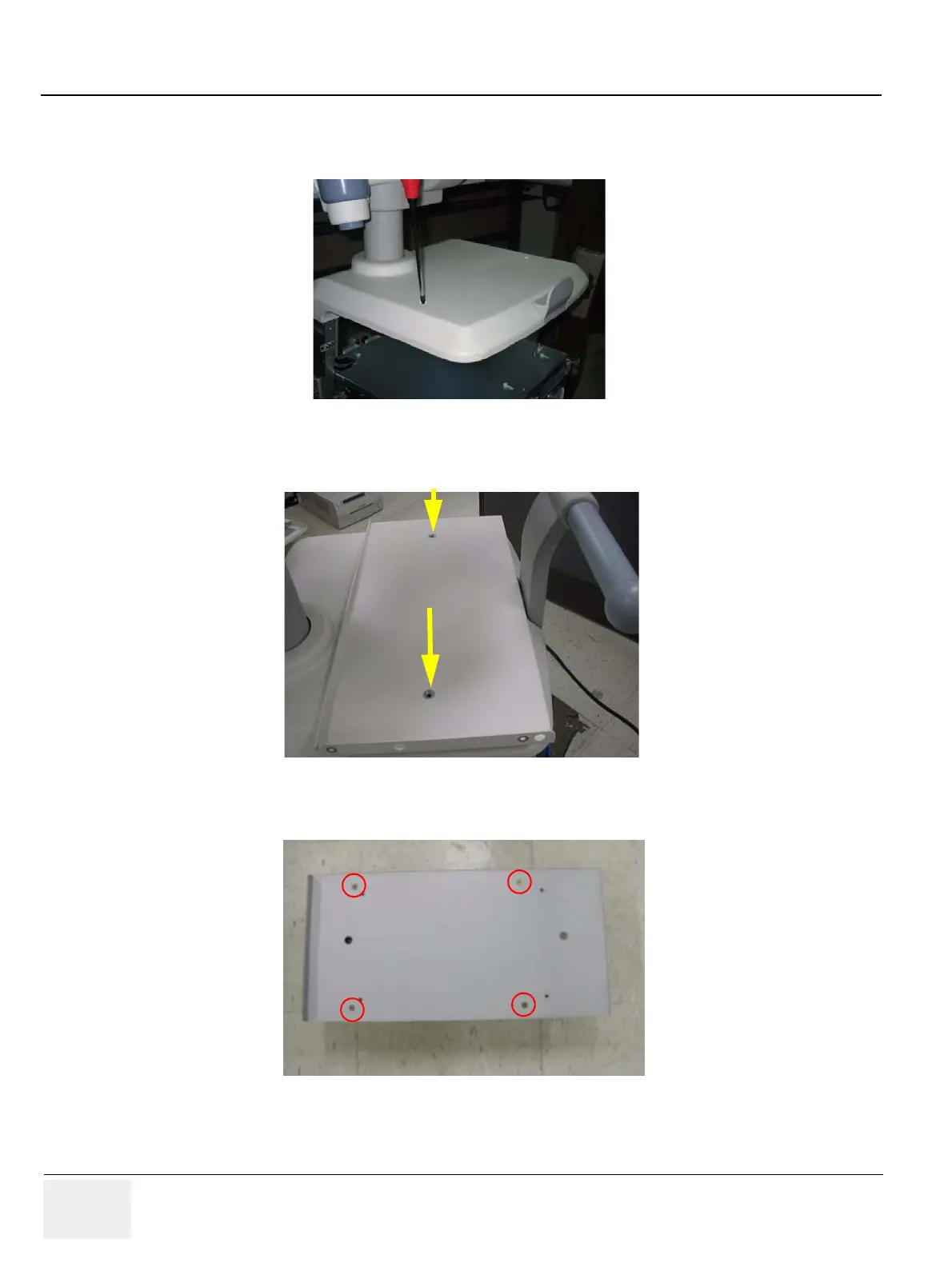

Figure 8-295 Printer VCR DVD Fixture Top installation (LQ MD800)

Figure

8-296 Printer VCR DVD Fixture installation top

Figure 8-297 Printer VCR DVD Fixture Top installation (LQ MD800)
