GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-45

8-2-11-3 Removal procedure (cont’d)

4.) Disconnect 1 connector from the PCB.

5.) Perform the following functional tests. If all are successful, include the debrief script provided below.

8-2-11-4 Mounting Procedure

Install the new parts in the reverse order of removal.

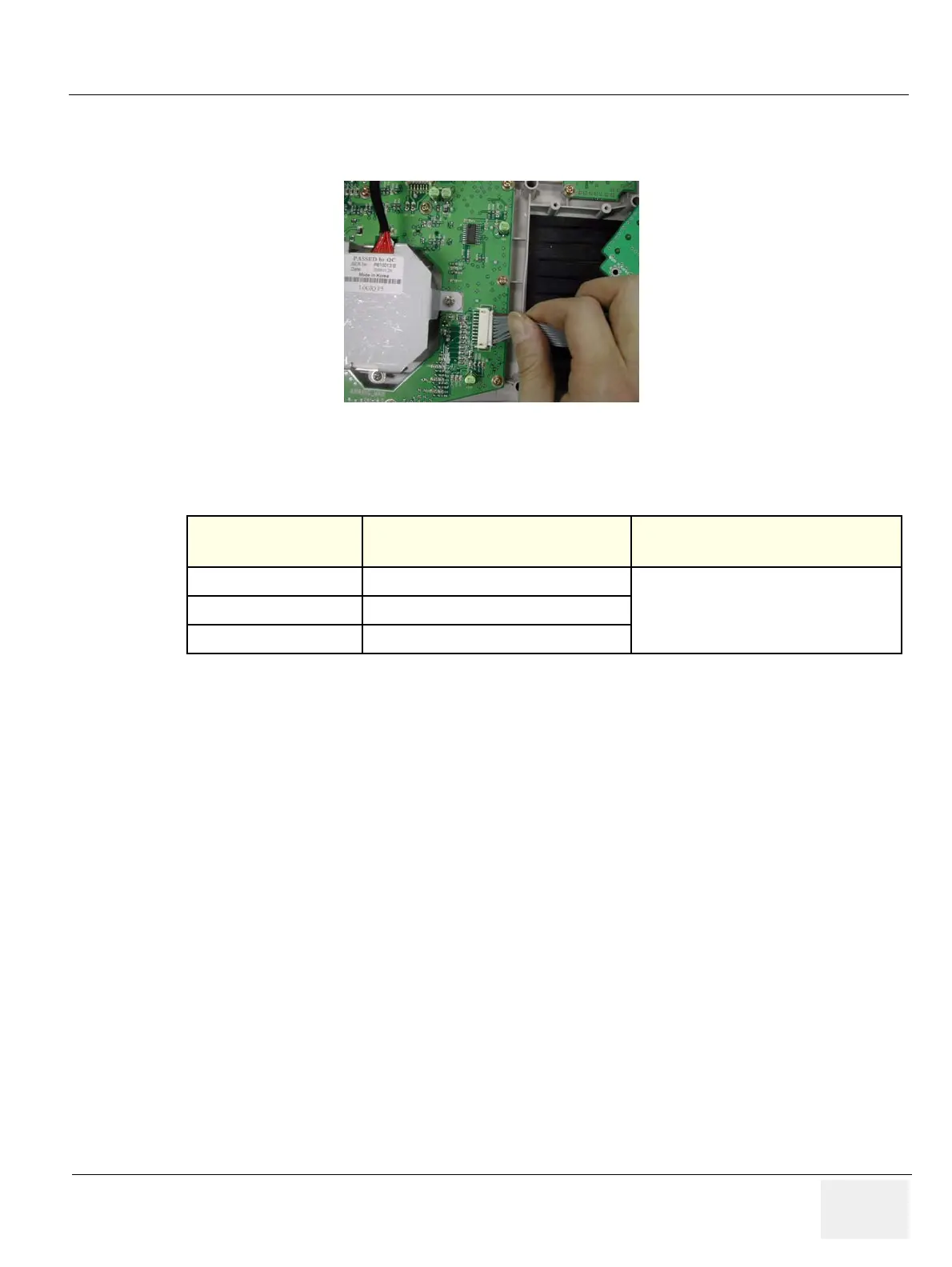

Figure 8-83 TGC Key Connector

Table 8-12 Functional Tests

Service Manual

Section

Functional Test / Diagnostic Test Debrief Script

Section 4-3-1

Power On/Boot Up

“Service Manual, Direction

5394152, Rev 1+, Section 8-2-11. Equipment

passed all required tests and is ready for use. “

Section 4-3-2

Power Off / Shutdown

Section 4-7-6

TGC key assy / TGC Knob Set validation
