GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-158 Section 8-7 - Mechanical Option Installation instruction

8-7-4 Drawer Option installation

1.) Push the drawer from the front to the rear direction.

2.) Unscrew 2 existing screws from the middle cover.

3.) Using the bracket, fix the drawer by screwing 3 screws each of left and right side of the drawer.

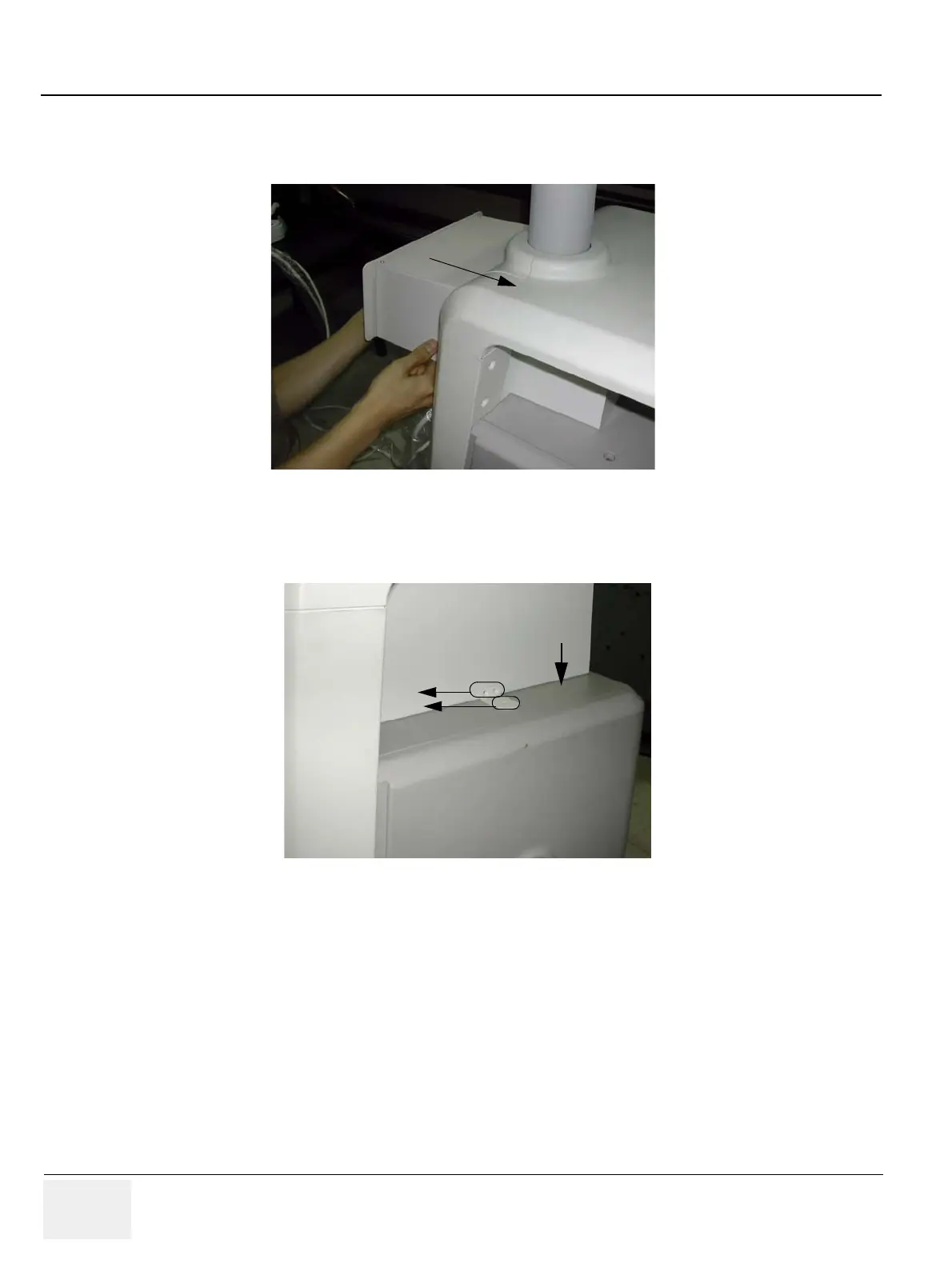

Figure 8-238 Drawer Option Installation

Figure 8-239 Installation of Drawer Option

Middle Cover

2337572

(Screw, FH M3x6 WHT)

5176744

(Screw, BH M4x20 WHT)
