GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-187

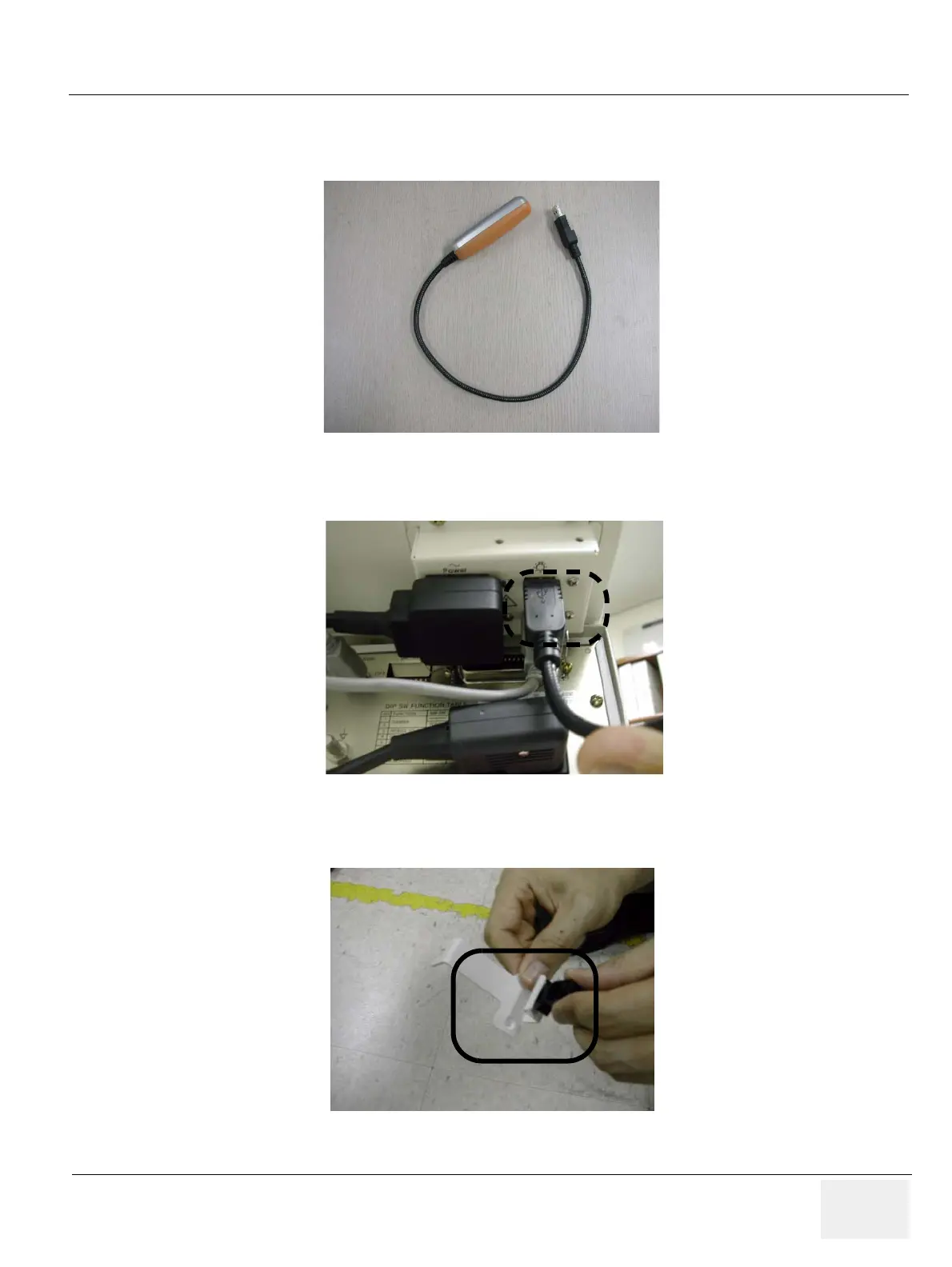

8-7-16 Additional Task Lamp installation

1.) This is the installation instruction of additional task lamp.

2.) Connect the USB connector to the location of light bulb mark.

3.) Install plastic holder to the task lamp bracket.

Figure 8-306 Additional Task Lamp Installation

Figure 8-307 Additional Task Lamp Installation

Figure 8-308 Additional Task Lamp Installation
