GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-57

8-2-21 Neck Front

8-2-21-1 Tools

• Common Phillips screwdrivers

8-2-21-2 Preparations

• Shut down the system and switch off the main breaker.

8-2-21-3 Removal procedure

1.) Remove 1 rubber cap.

2.) Unscrew 1 screw and remove the Neck Front.

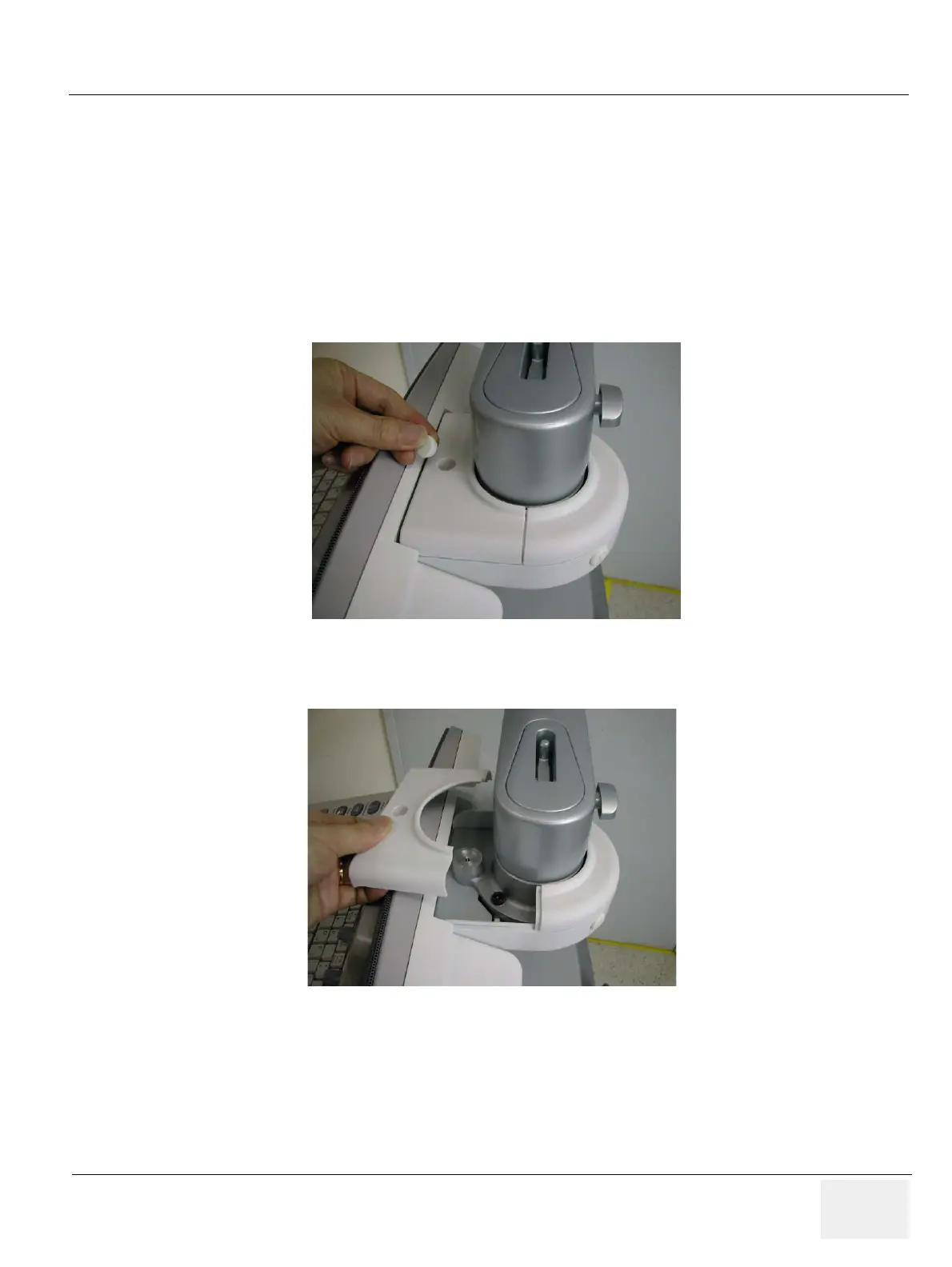

Figure 8-96 rubber cap of neck front cover

Figure 8-97 Open neck front cover
