GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-78 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-32 RFC Assy
8-2-32-1 Tools
• Common Phillips screwdrivers
8-2-32-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-32-3 Removal procedure
1.) Remove the Side Right Cover. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-48.
2.) Remove the EMI Cover R. Refer to the 8-2-24 "EMI Cover L and R" on page 8-63.
3.) Unscrew 2 screws (1,2) and eject the PCB.
4.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-32-4 Mounting Procedure
Install the new parts in the reverse order of removal.

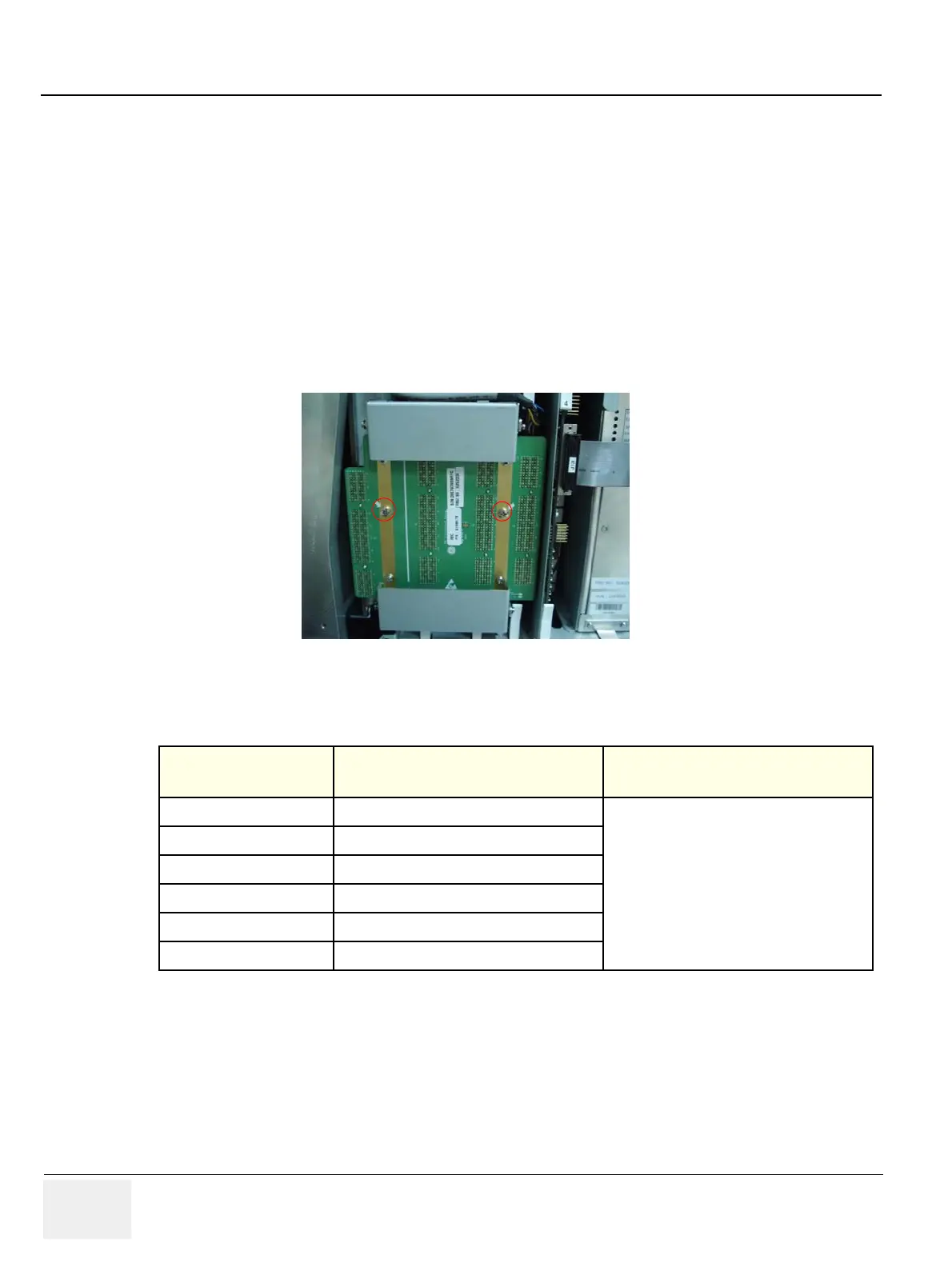

Figure 8-118 RFC Assy
Table 8-33 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394152, Rev 1+, Section 8-2-32. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-9-8
RFC Assy Function Validation Procedure
Section 4-3-4
System B/M-Mode Checks
Section 4-3-5
System CFM and PWD Checks
Section 10-5-2
Functional Checks (See Also Chapter 4)
To Next Page
