ENGINE
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
1-S22
5. PREPARATION
[1] SEPARATING ENGINE FROM TRACTOR
• When separating the engine from the tractor, there is no need to release refrigerant from air conditioner
system.
9Y1211167ENS0019US0

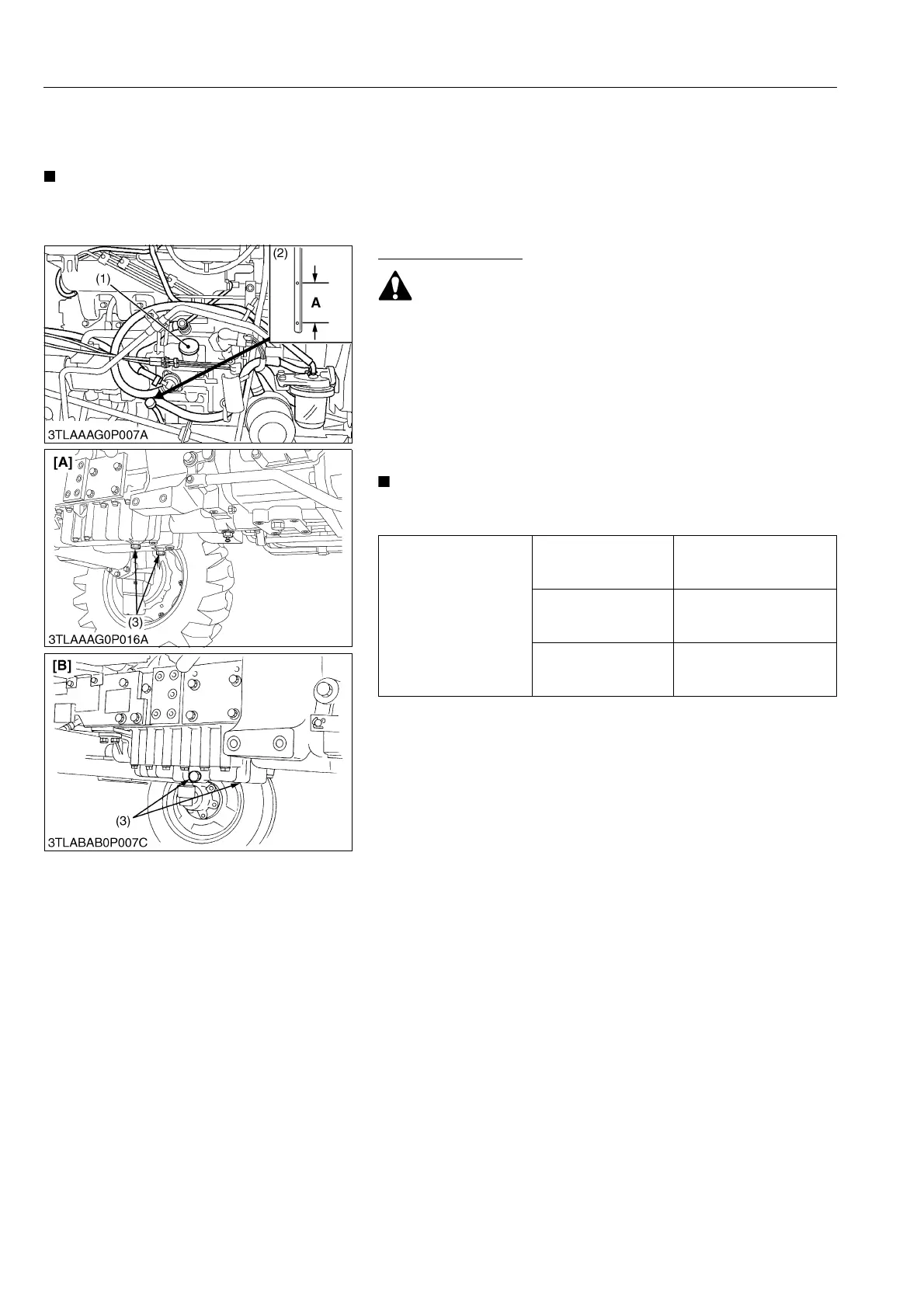

Draining Engine Oil
• Be sure to stop the engine before changing the oil.
• Allow engine to cool down sufficiently, oil can be hot and
can burn.
1. To drain the used oil, remove the drain plug (3) at the bottom of
the engine and drain the oil completely into the oil pan.
All the used oil can be drained out easily when the engine is still
warm.
2. After draining reinstall the drain plug (3).
3. Fill with the new oil up to the upper notch on the dipstick (2).
• Refer to "4. LUBRICANTS, FUEL AND COOLANT" on page
G-10.
9Y1211167ENS0020US0
Engine oil capacity
(with filter)
L3540-II
6.7 L
7.1 U.S.qts
5.9 Imp.qts
L4240-II
8.2 L
8.7 U.S.qts
7.2 Imp.qts
L5040-II
L5240-II
L5740-II
9.4 L
9.9 U.S.qts
8.3 Imp.qts
(1) Oil Inlet
(2) Dipstick
(3) Drain Plug
[A] L4240-II
[B] L3540-II, L5040-II, L5240-II,
L5740-II
A: Oil level is acceptable within this
range.
