ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S69
[11] GAUGES

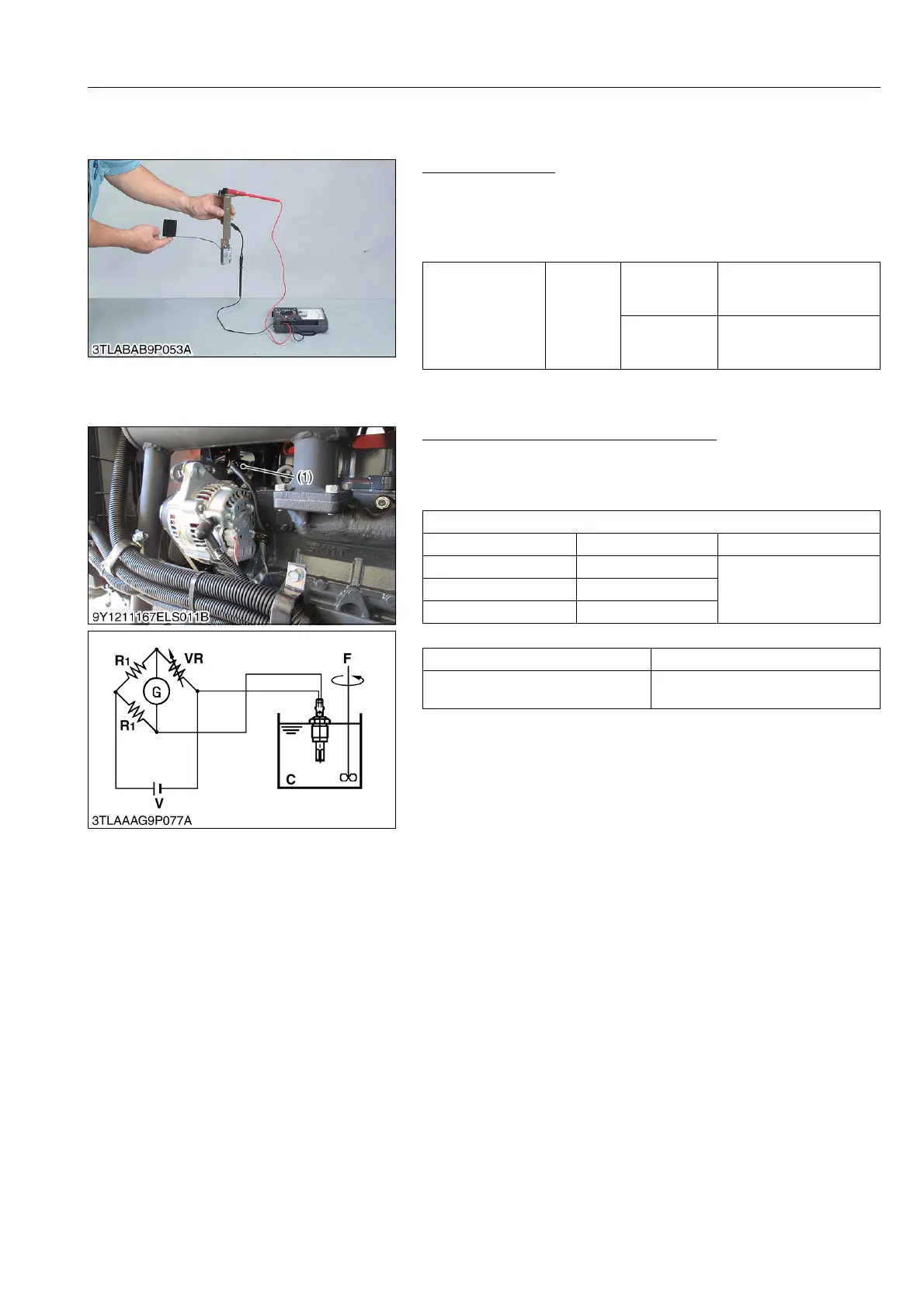

(1) Fuel Level Sensor
Fuel Level Sensor
1) Sensor Continuity
1. Remove the fuel level sensor from the fuel tank.
2. Measure the resistance across the sensor terminal and its body.
3. If the reference value are not indicated, the sensor is faulty.
9Y1211167ELS0091US0
(2) Coolant Temperature Sensor
Coolant Temperature Sensor Continuity
1. Measure the resistance across the sensor terminal and the
chassis.
2. If the measurement is not indicated, the sensor is faulty.
: When galvanometer shows 0 (zero).
: When galvarnometer shows 0 (zero).
9Y1211167ELS0092US0
Resistance
(Sensor terminal –
its body)
Reference
value
Float at
upper-most
position
1.8 to 4.2 Ω
Float at
lower-most
position
106.5 to 113.5 Ω
Characteristics of Thermistor
Temperature Resistance of VR:  Condition
−20 °C (−4 °F) Approx. 18.80 kΩ
(A)40 °C (104 °F) Approx. 1.136 kΩ
100 °C (212 °F) Approx. 0.1553 kΩ
Condition Setting Value
(A)
R1: 54.945 to 55.055 Ω
V: DC 6.9 to 7.1 V
(1) Coolant Temperature Sensor
