STEERING
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
7-M1
1. STRUCTURE

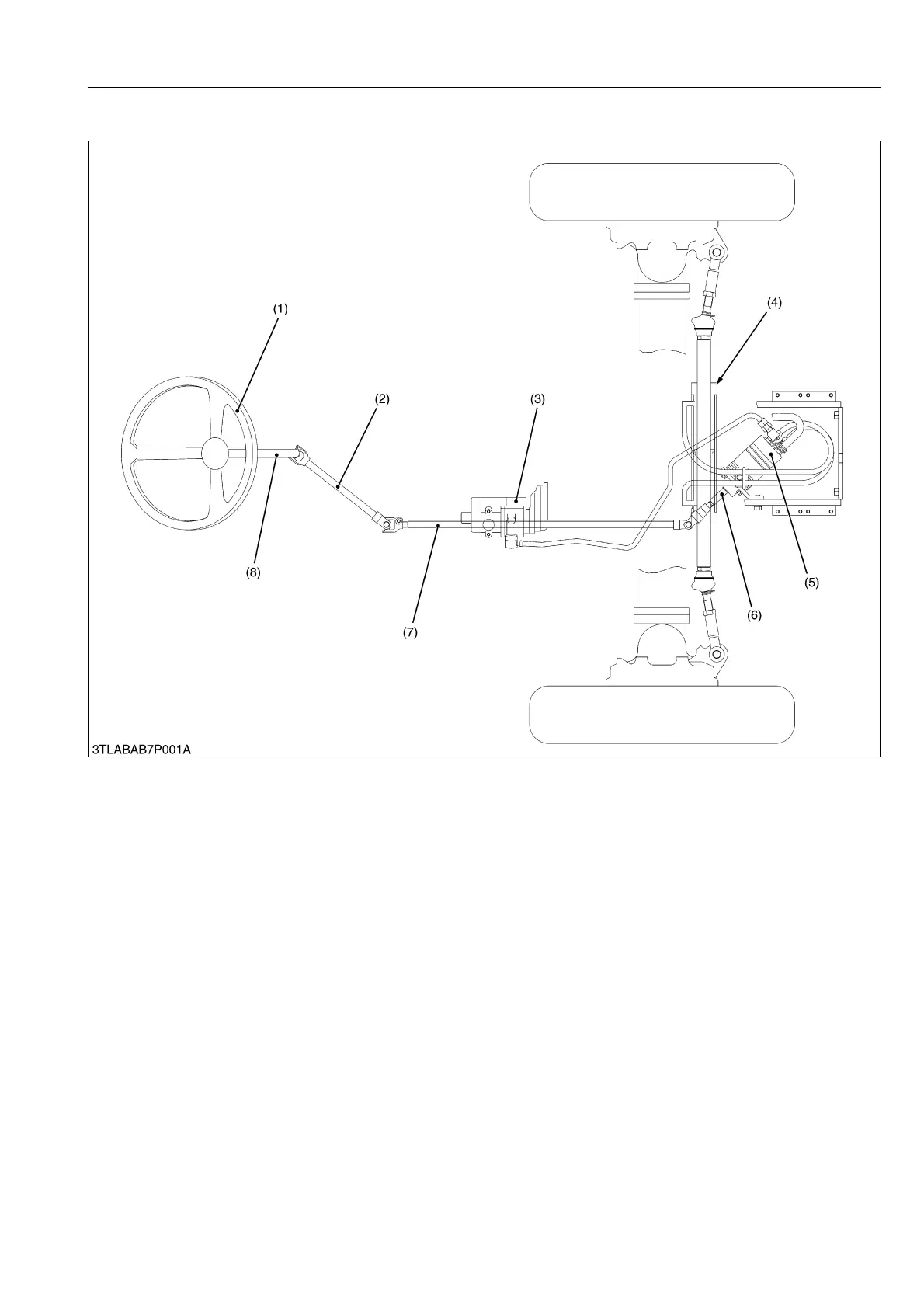

The full hydrostatic type power steering is used on these tractors. This steering system consists of steering wheel,
steering joint shafts, steering controller, steering cylinder and other components shown in the figure.
9Y1211167STM0001US0
(1) Steering Wheel
(2) Steering Joint Shaft 1
(3) Hydraulic Pump
(4) Steering Cylinder
(5) Steering Controller
(6) Steering Joint Shaft 3
(7) Steering Joint Shaft 2
(8) Steering Shaft
