ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S29
(10) Mode "I" (Transmission Model Input Mode) Input the Transmission Model
into Electronic Instrument Panel
• When the electronic instrument panel is replaced, this
operation is required.
• On the HST models, the range gear shift lever sensor must
be adjusted at the same time.
1. While holding down the both switches at once, turn on the main
switch.
2. Select the mode "I".

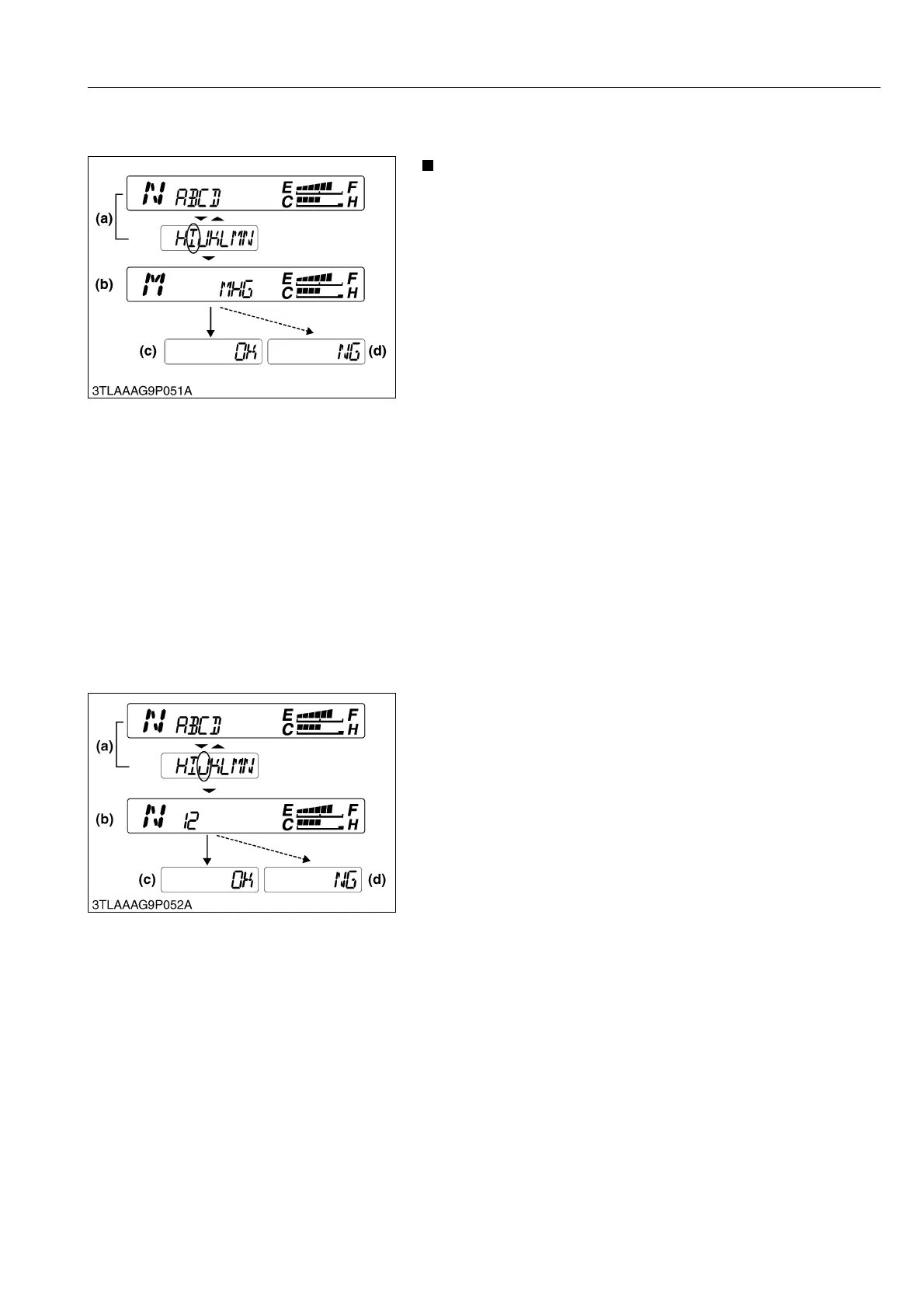

3. "MHG" is displayed (b), and the existing symbol setting is
flashing.
(Reference)
• "M": Manual Transmission Model
• "G": GST Model
• "H": HST Model
4. To change the setting, press the display mode switch. Each
time display mode switch is pressed, the flashing symbol shifts.
And then, hold down switch for more than 2 seconds with the
symbol flashing.
5. "OK" is displayed (c): The tractor model has been input
correctly.
6. If "NG" is displayed (d): The tractor model has not been input
correctly. Repeat the procedure.
9Y1211167ELS0025US0
(11) Mode "J" (Speed Unit Selection Mode) Input the Traveling Speed Unit to
the Electronic Instrument Panel
1. While holding down the both switches at once, turn on the main
switch.
2. Select the mode "J".
3. "12" is displayed (b), and existing number is flashing.
(Reference)
• "1": Traveling speed unit is "mph"
• "2": Traveling speed unit is "km/h"
4. To change the setting, select an appropriate number, and input
to the electronic instrument panel. Each time display mode
switch is pressed, the flashing number shifts. And then, hold
down switch for more than 2 seconds with the number flashing.
5. "OK" is displayed (c): The code number has been input
correctly.
6. If "NG" is displayed (d): The code number has not been input
correctly. Repeat the procedure.
9Y1211167ELS0026US0
(a) Mode Selection Display
(b) Input Display
(c) Correct Preserving Display
(d) Incorrect Preserving Display
(a) Mode Selection Display
(b) Input Display
(c) Correct Preserving Display
(d) Incorrect Preserving Display
