ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-M33
(2) Engine Starting Conditions
When the following conditions become complete,
electric voltage reaches starter AC terminal through
OPC controller or ECU from main switch ST terminal,
and the engine can be started.

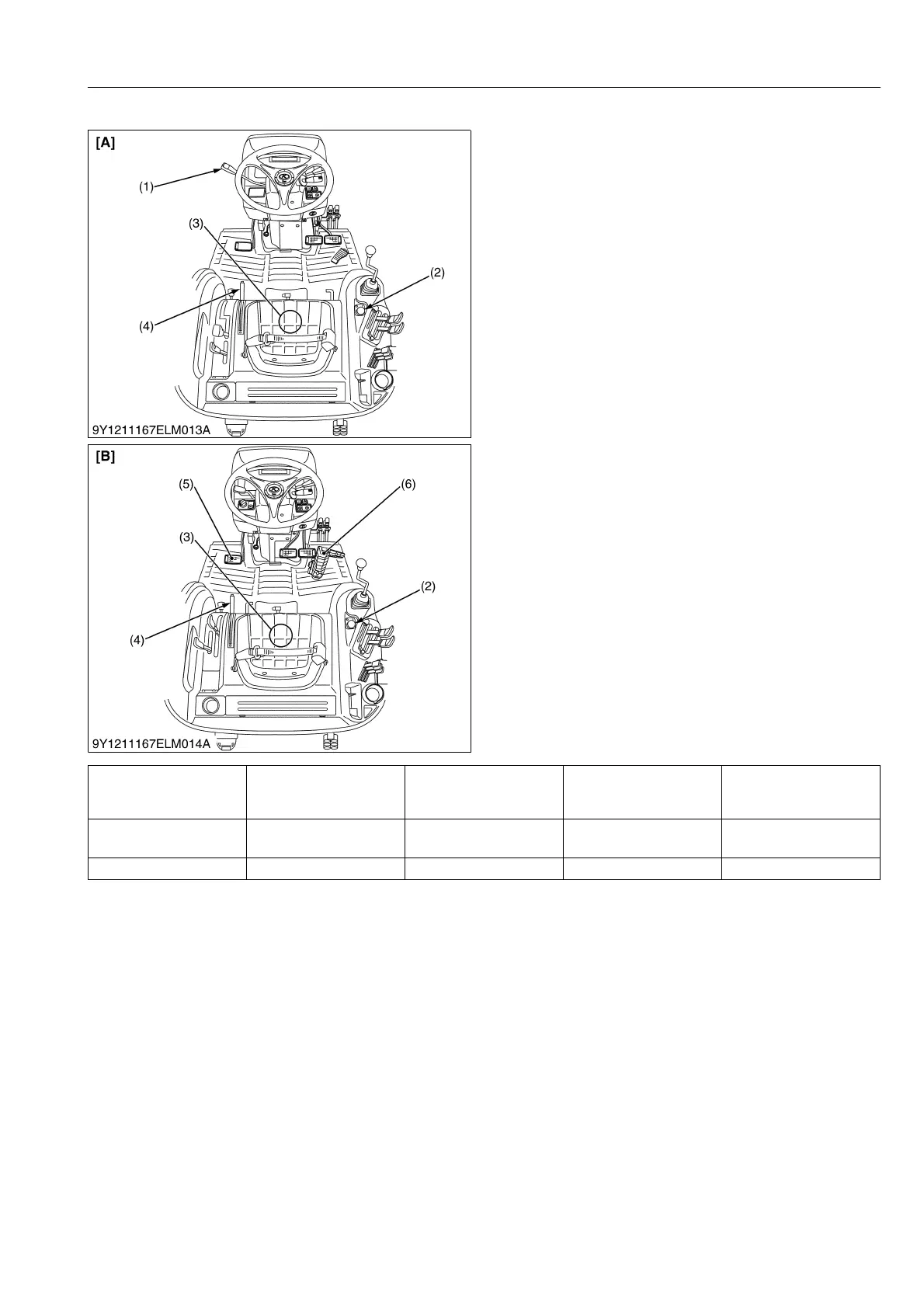

9Y1211167ELM0076US0
(1) Shuttle Shift Lever
(2) PTO Clutch Switch
(3) Seat Switch
(4) Parking Brake Lever
(5) Clutch Pedal
(6) HST Pedal
[A] Manual Transmission and
GST Model
[B] HST Model
Clutch Pedal Switch
(Pedal depressed: ON)
(Pedal free: OFF)
PTO Switch
(Neutral: ON)
(Engaged: OFF)
Shuttle Switch
(Neutral: ON)
(Engaged: OFF)
HST Pedal Sensor
(Neutral: ON)
(Engaged: OFF)
Manual Transmission and
GST Model
–ONON–
HST Model ON ON – ON
KiSC issued 02, 2015 A
