ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S24

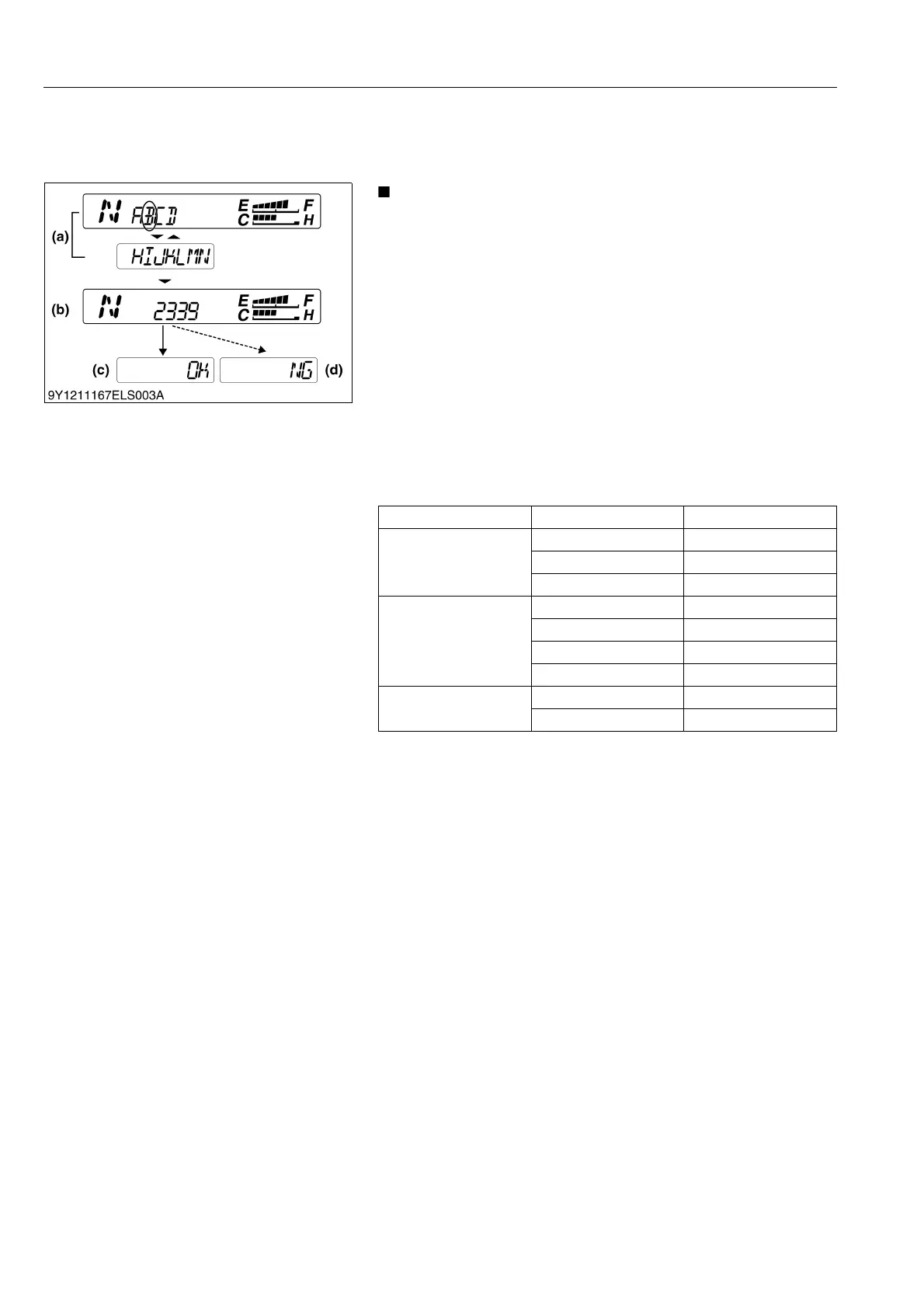

(3) Mode "B" (Traveling Speed Coefficient Input Mode) Input the 4 Digit Tire
Code for Correct Travel Speed to the Electronic Instrument Panel Memory
Panel
NOTE
• When the tire size is changed or electronic instrument
panel is replaced, this operation is required.
1. While holding down the both switches at once, turn on the main
switch.
2. Select the mode "B".
3. "0000" or the existing 4-digit numerical setting is displayed (b).
4. To change the code, select the operation coefficient, referring to
the tractor model and tire size.
(Numeric modification)
• Each time the display mode switch is pressed, the flashing
number shifts. Press the travel speed switch to change the
number.
5. Hold down the display mode switch for more than 2 seconds to
preserve the code in the panel's memory.
6. "OK" is displayed (c): The code has been input correctly.
7. "NG" is displayed (d): Incorrect input. Repeat the procedure.
9Y1211167ELS0018US0
Tractor Model Rear wheel tire size Operation Coefficient
L3540-II
11.2 – 24 2339
12.4 – 24 2330
355/80 – D20 2178
L4240-II
13.6 – 24 2053
13.6 – 26 2141
355/80 – D20 1823
475/65 – D20 1901
L5040-II, L5240-II,
L5740-II
13.6 – 28 2371
475/65 – D20 2021
(a) Mode Selection Display
(b) Input Display
(c) Correct Preserving Display
(d) Incorrect Preserving Display
