TRANSMISSION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
3-M9
3. GLIDE SHIFT TRANSMISSION (GST) MODEL
[1] CHARACTERISTIC AND SYSTEM OUTLINE
In addition to the former GST system that controls
the gear shifting and clutch operation hydraulically, the
GST system of L40 series tractor has the function to
control these operations electrically.
12 forward and 8 reverse speeds can shift only by
operating the main shift lever (GST lever) (4) and shuttle
shift lever (3) without the clutch operation as well as the
former GST system. In addition, the movement and gear
shifting according to the oil temperature and the traveling
speed can be achieved by having electronically
controlled the GST system, and a smoother operation
can be done.
Moreover, because the selected speed and the
traveling speed can be displayed by the liquid crystal
display (LCD) (1) of electronic instrument panel
(Intellipanel) (2), it can do a comfortable tractor
operation. And it is excellent in service because it can
display the error indication with an electronic instrument
panel (2) when the electric wiring is disconnected or
short-circuited.
9Y1211167TRM0015US0

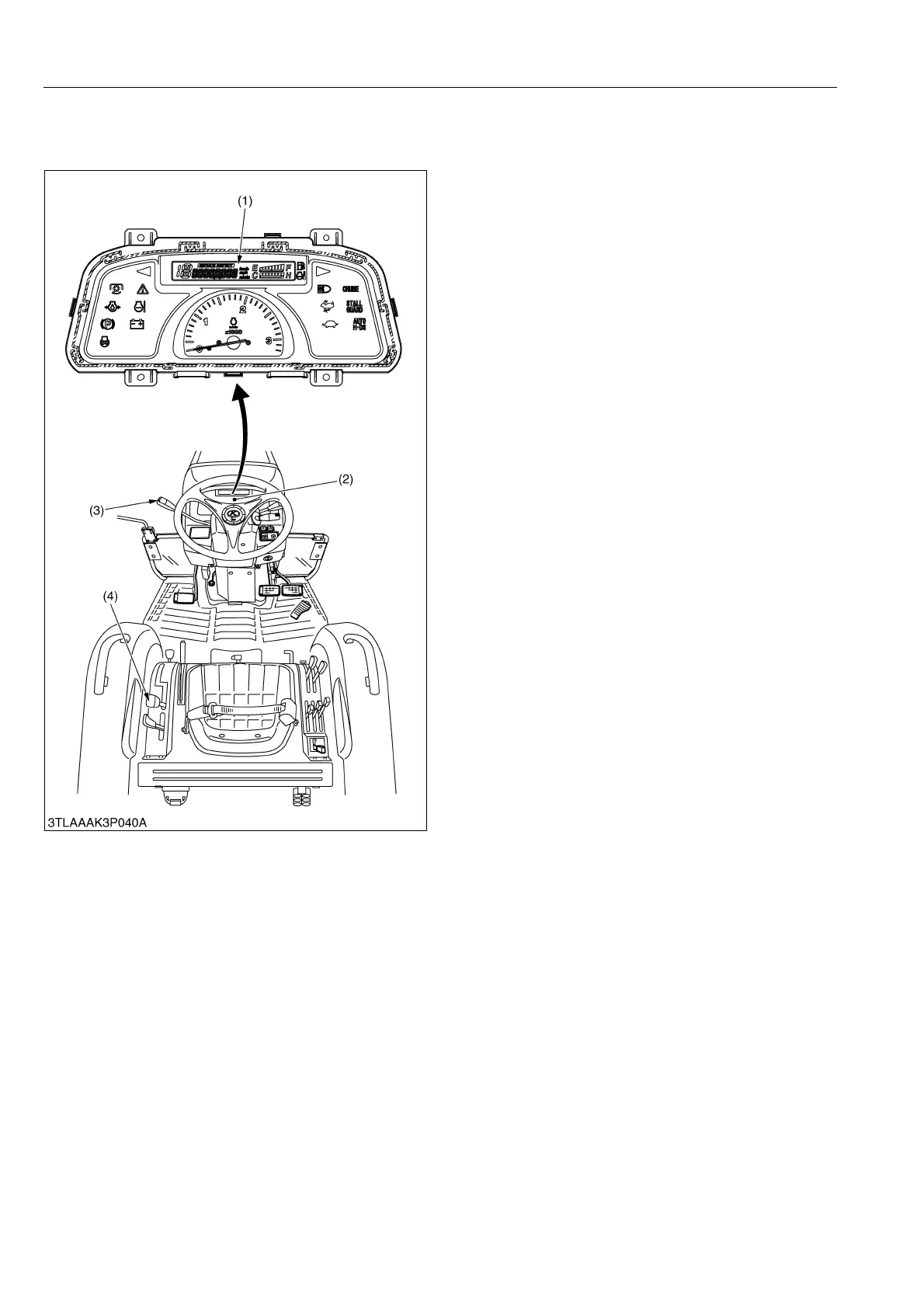

(1) Liquid Crystal Display (LCD)
(2) Electronic Instrument Panel
(Intellipanel)
(3) Shuttle Lever
(4) Main Shift Lever (GST Lever)
