STEERING
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
7-M6
5. STEERING CYLINDER

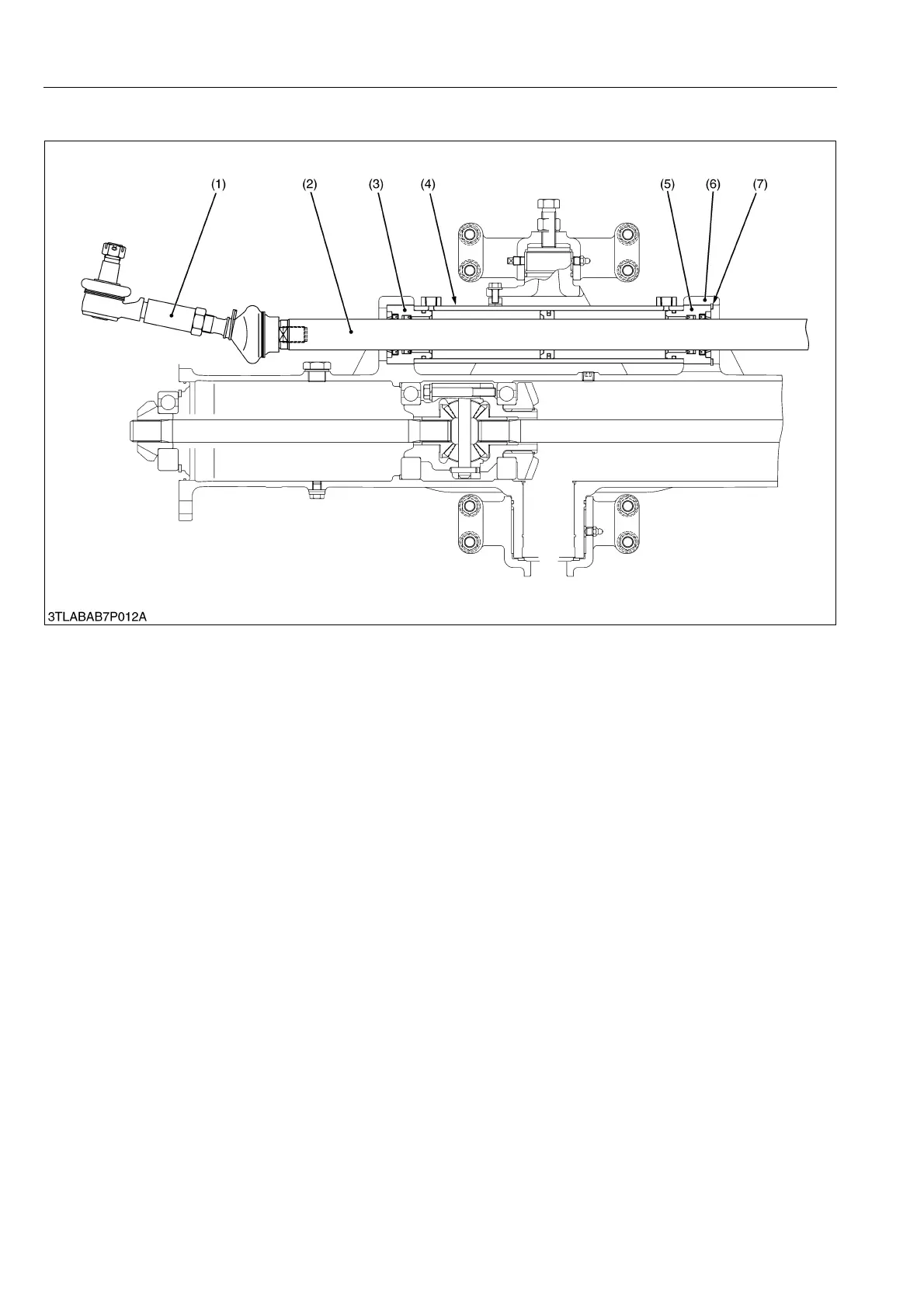

The steering cylinder is single piston both rod double-acting type. This steering cylinder is installed parallel to the
front axle and connected to tie-rods. (The above figure is shown for 4 wheel drive model. Regarding 2 wheel drive
model, please refer to TRACTOR MECHANISM workshop manual.)
The tie-rods connected to both knuckle arm guarantees equal steering movement to both front wheels.
The steering cylinder provides force in both directions. Depending upon direction the steering wheel is turned
pressure oil enters at one end of the cylinder to extend, or the other end to retract it, thereby turning front wheel of
the tractor.
9Y1211167STM0007US0
(1) Tie-rod
(2) Piston Rod
(3) Head Cover
(4) Cylinder Tube
(5) Head Cover
(6) Front Axle Case
(7) Internal Snap Ring
