ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S26
(6) Mode "E" (GST Lever Sensor Fine-adjustment Mode) Setting the GST
Lever's Neutral Position with its Sensor
• As for this fine-adjustment, be sure to set it correctly
because the set state becomes the standard of the control
thereafter.
• When the GST lever sensor, the ECU or the electronic
instrument panel is replaced, this adjustment is required.
1. Set the GST shift lever to Neutral position.
2. While holding down the both switches at once, turn on the main
switch.
3. Select the mode "E".
4. "LEVER" is displayed (b) and "PUSH SW" is displayed (c) for
five seconds.
5. Hold down the display mode switch for more than 2 seconds.
(This preserve the adjusted value to the ECU.)
6. "OK" is displayed (d) on LCD screen to tell that preserving to
ECU has been made correctly. Turn off the main switch to end
the mode.
7. If "NG" is displayed (f), it means the preserving has not been
made correctly (4). Turn off the main switch and repeat the
procedure.
8. If "LEVER" is displayed (b) first and then "ERROR-70" shows
up (e), it means the lever sensor voltage is out of specification.
In this case;
• Check to see that GST lever is at the Neutral position.
• Check the lever sensor voltage in the Test Mode (Mode
"A"). If out of specification, replace the sensor itself.
9Y1211167ELS0021US0

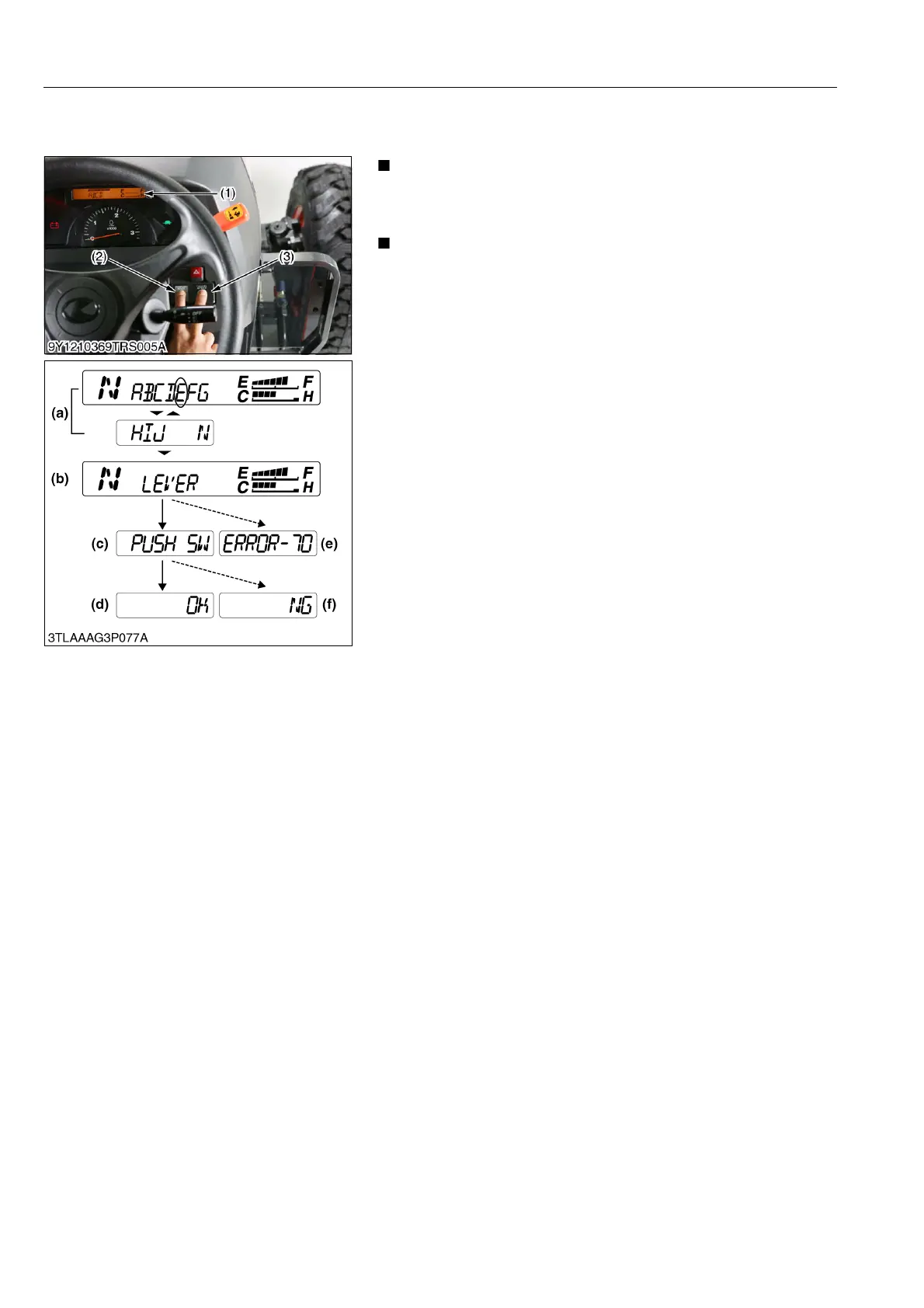

(1) Liquid Crystal Display (LCD)
(2) Display Mode Switch
(3) Travel Speed Switch
(a) Mode Selection Display
(b) Information Display
(c) Adjusting Display
(d) Correct Preserving Display
(e) Error Display
(f) Incorrect Preserving Display
