Kubota WSM L5040-II User Manual

HYDRAULIC SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
8-M3

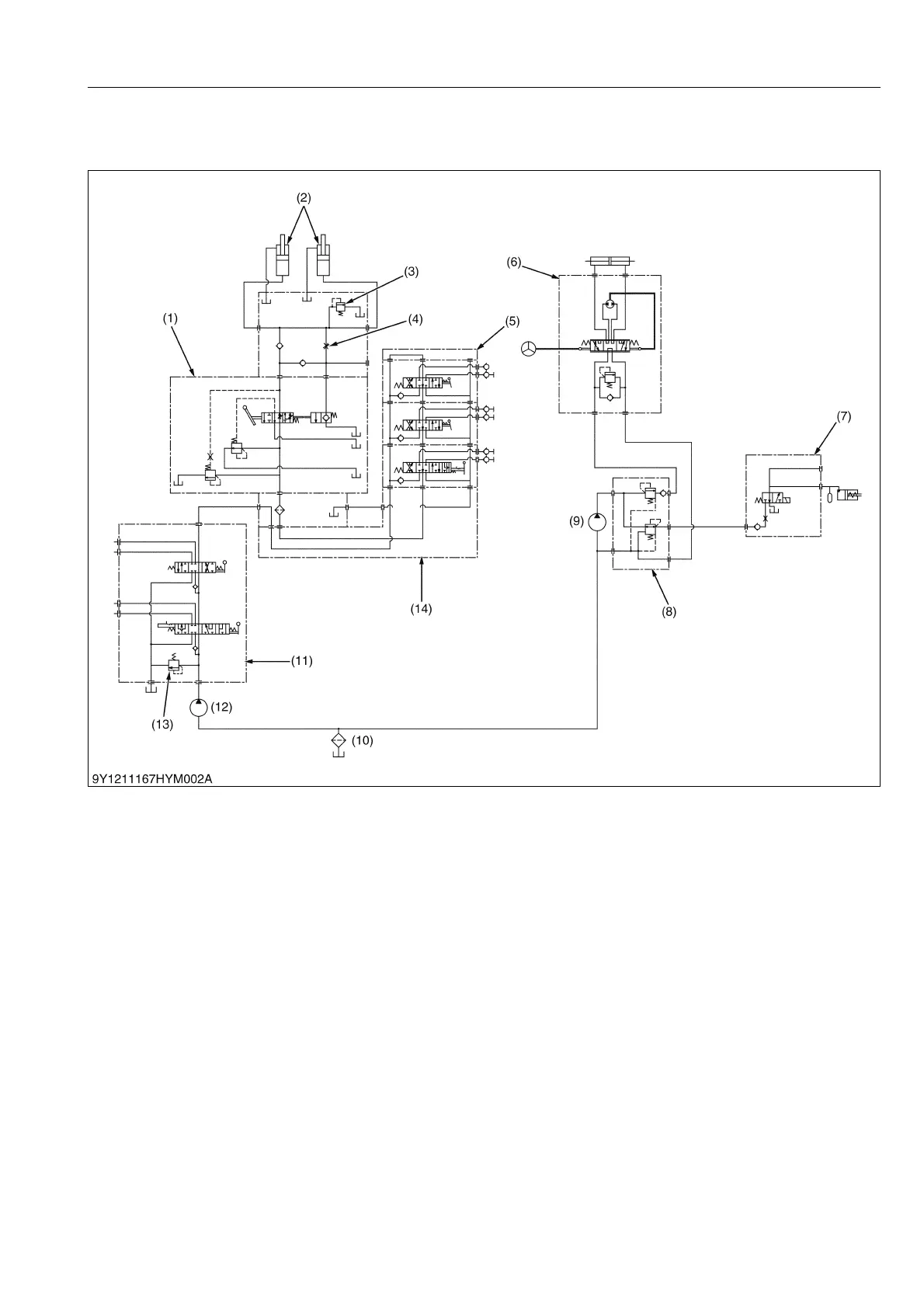

2. HYDRAULIC CIRCUIT
[1] MANUAL TRANSMISSION
Hydraulic oil operates power steering controller (6), PTO clutch valve (7) and 3 point hitch.
9Y1211167HYM0003US0
(1) Position Control Valve
(2) Hydraulic Cylinder
(3) Cylinder Safety Valve
(4) Lowering Speed Adjusting
Valve
(5) Auxiliary Control Valve
(6) Power Steering Controller
(Refer to STEERING Section)
(7) PTO Clutch Valve
(Refer to TRANSMISSION
Section)
(8) Regulating Valve
(Refer to TRANSMISSION
Section)
(9) Hydraulic Pump 2
(10) Oil Filter
(11) Front Loader Control Valve
(12) Hydraulic Pump 1
(13) Relief Valve
(14) Rear Hydraulic Block
KiSC issued 02, 2015 A
