ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S67

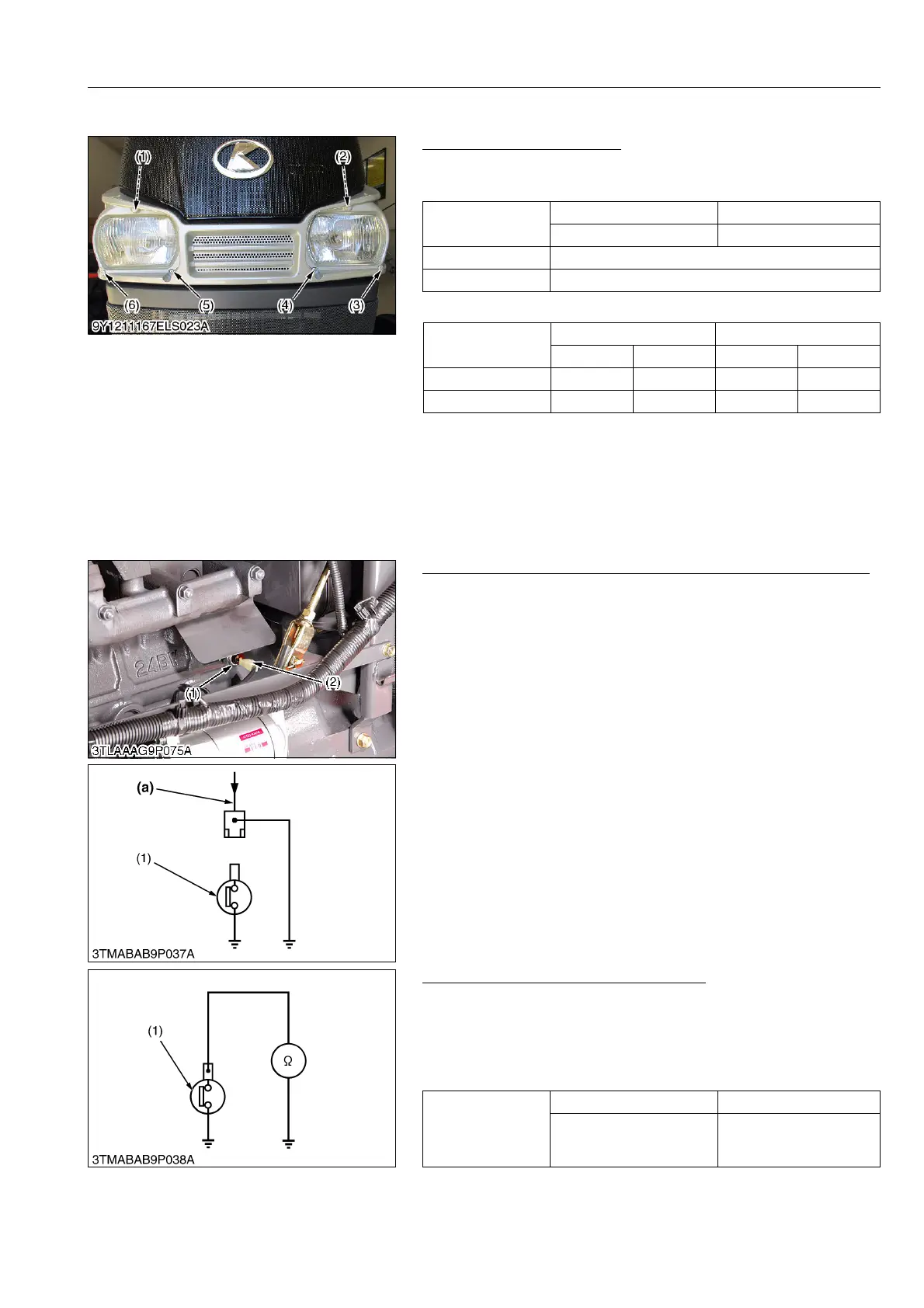

(7) Head Light
Adjustment of Optical Axis
1. To adjust the optical axis of head light (1), refer the table below.
1) Adjustment of Vertical direction
2) Adjustment of Horizontal direction
9Y1211167ELS0096US0
[9] WARNING LAMPS
(1) Checking
Engine Oil Pressure Switch Panel Board and Wiring Harness
1. Disconnect the lead (2) from the engine oil pressure switch after
turning the main switch "OFF".
2. Turn the main switch "ON" and connect a jumper lead from the
lead to the chassis.
3. If the engine oil pressure indicator lamp does not light, the panel
circuit or the wiring harness is faulty.
9Y1211167ELS0087US0
Engine Oil Pressure Switch Continuity
1. Measure the resistance across the switch terminal and the
chassis.
2. If 0 ohm is not indicated in the normal state, the switch is faulty.
3. If infinity is not indicated at pressure over 50 kPa (0.5 kgf/cm
2
,
7 psi), the switch is faulty.
9Y1211167ELS0088US0
For Right For Left
(1) (2)
Clockwise Downward
Counterclockwise Upward
For Right For Left
(5) (6) (3) (4)
Clockwise Left Right Left Right
Counterclockwise Right Left Right Left
(1) Adjusting Nut (for RH)
(2) Adjusting Nut (for LH)
(3) Adjusting Bolt (for LH)
(4) Adjusting Bolt (for LH)
(5) Adjusting Bolt (for RH)
(6) Adjusting Bolt (for RH)
(1) Engine Oil Pressure Switch
(2) Switch Lead
(a) From Oil Pressure Lamp
Resistance
(Switch terminal –
Chassis)
In normal state 0 Ω
At pressure over
approx. 50 kPa
(0.5 kgf/cm
2
, 7 psi)
Infinity
(1) Engine Oil Pressure Switch
To Next Page
