CABIN
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
10-S27

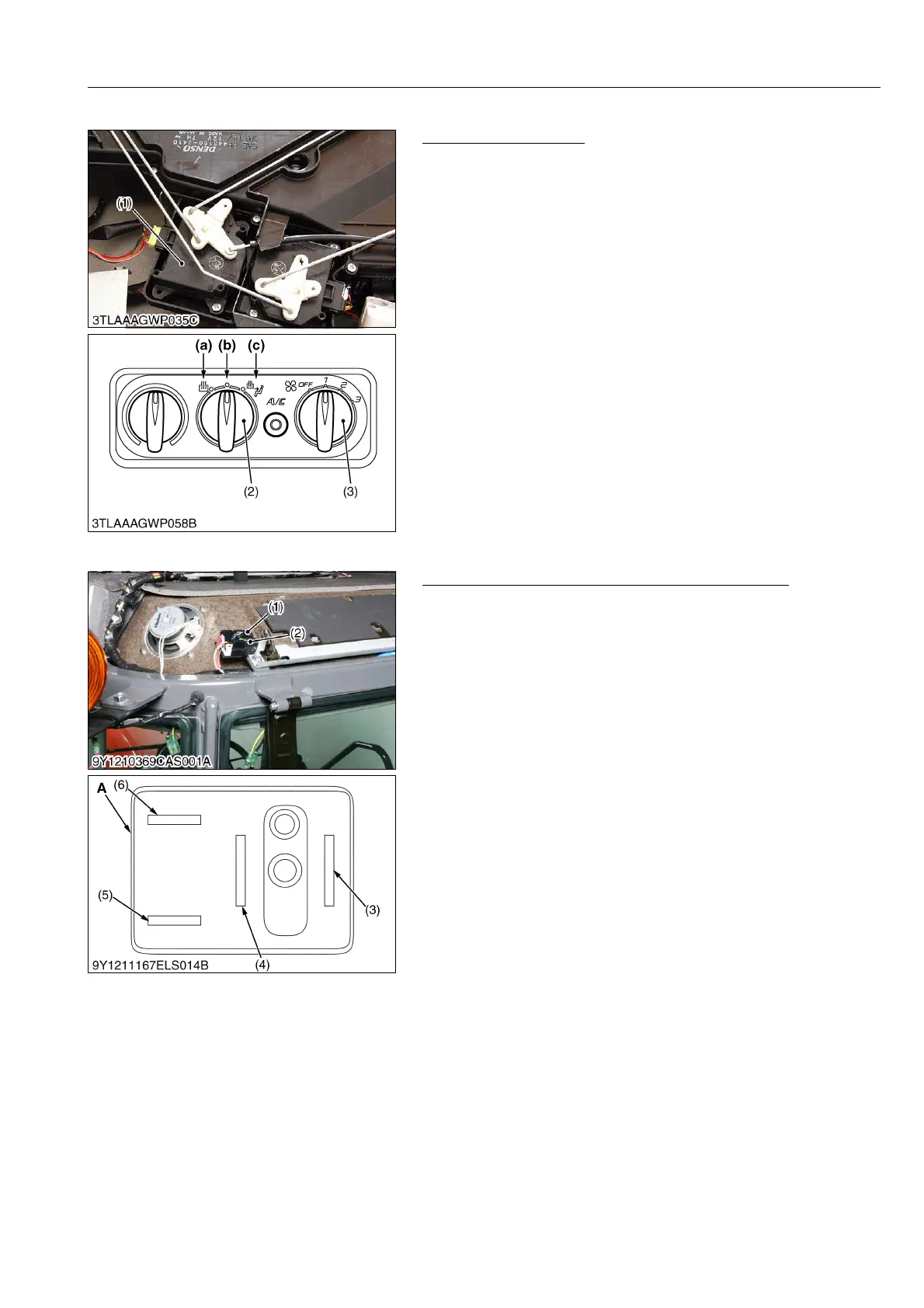

(6) Mode Motor
Mode Motor Checking
1. Check whether the mode switch (2) is damaged. (Refer to "(4)
Control Panel" in this section.)
2. Turn the main switch to "ON" position.
3. Turn the blower switch at 1 position.
4. Turn the mode switch each (a), (b) and (c).
5. Check whether the position where the mode motor (1) is
stopped synchronize with mode switch (2).
6. If the motor does not move, replace it.
9Y1211167CAS0046US0
(7) Air Conditioner Relay and Blower Relay
Checking Air Conditioner Relay and Blower Relay
1. Remove the air conditioner relay and blower relay.
2. Check the resistance between terminal c (5) and terminal d (6).
3. If resistance is clearly different from the table below, the relay is
damaged.
4. Apply battery voltage across terminal c (5) and terminal d (6)
and check for continuity between terminal a (3) and terminal b
(4).
5. If there is no continuity, the relay is damaged.
9Y1211167CAS0047US0
(1) Mode Motor
(2) Mode Switch
(3) Blower Switch
(a) Air is blown from only the
defroster air outlet
(b) Air is blown weaken from the side
air outlets (head) and stronger
from the front air outlets
(c) Air is blown from the front and
side air outlets
(1) Blower Relay
(2) Compressor Relay
(3) Terminal a
(4) Terminal b
(5) Terminal c
(6) Terminal d
A: Relay
KiSC issued 02, 2015 A
