CABIN
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
10-S46
(4) Removing Air Conditioner Pipes
Discharging Refrigerant Gas
Refer to "(1) Discharging the Refrigerant" in this section.
9Y1211167CAS0063US0

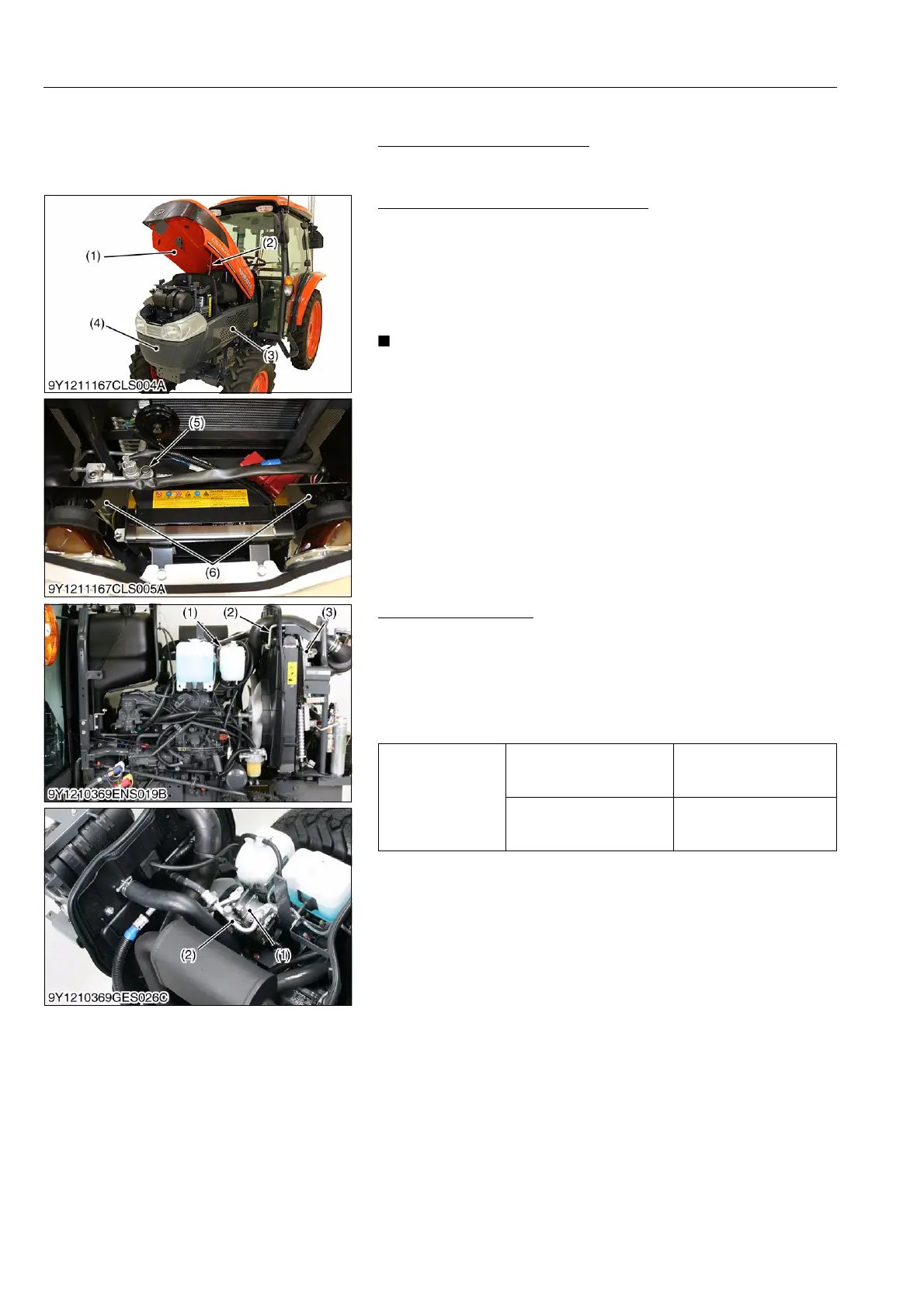

Battery, Front Grill, Skirt and Bonnet
1. Open the bonnet and disconnect the battery negative cable (5).
2. Disconnect the head light connector (6) and remove the front
grill (4).
3. Remove the left and right side skirts (3).
4. Disconnect window washer hose (2).
5. Remove the bonnet (1).
• When disconnecting the battery cords, disconnect the
negative cord first, when connecting, positive cord first.
9Y1211167CLS0007US0
High Pressure Pipe 1
1. Disconnect the high pressure pipe 1 (2) from the compressor (1)
and condenser (3), then cap the open fittings immediately to
keep moisture out of the system.
(When reassembling)
• Apply compressor oil (DENSO ND-OIL 8 or equivalent) to the
O-rings and be careful not to damage them.
9Y1211167CAS0064US0
(1) Bonnet
(2) Window Washer Hose
(3) Skirt
(4) Front Grill
(5) Battery Negative Cable
(6) Head Light Connector
Tightening torque
High pressure pipe 1
mounting screw
(Compressor side)
7.90 to 11.8 N·m
0.806 to 1.20 kgf·m
5.83 to 8.70 lbf·ft
High pressure side 1
retaining nut
(Condenser side)
4.0 to 6.8 N·m
0.41 to 0.69 kgf·m
3.0 to 5.0 lbf·ft
(1) Compressor
(2) High Pressure Pipe 1
(3) Condenser
To Next Page
