ENGINE
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
1-S38

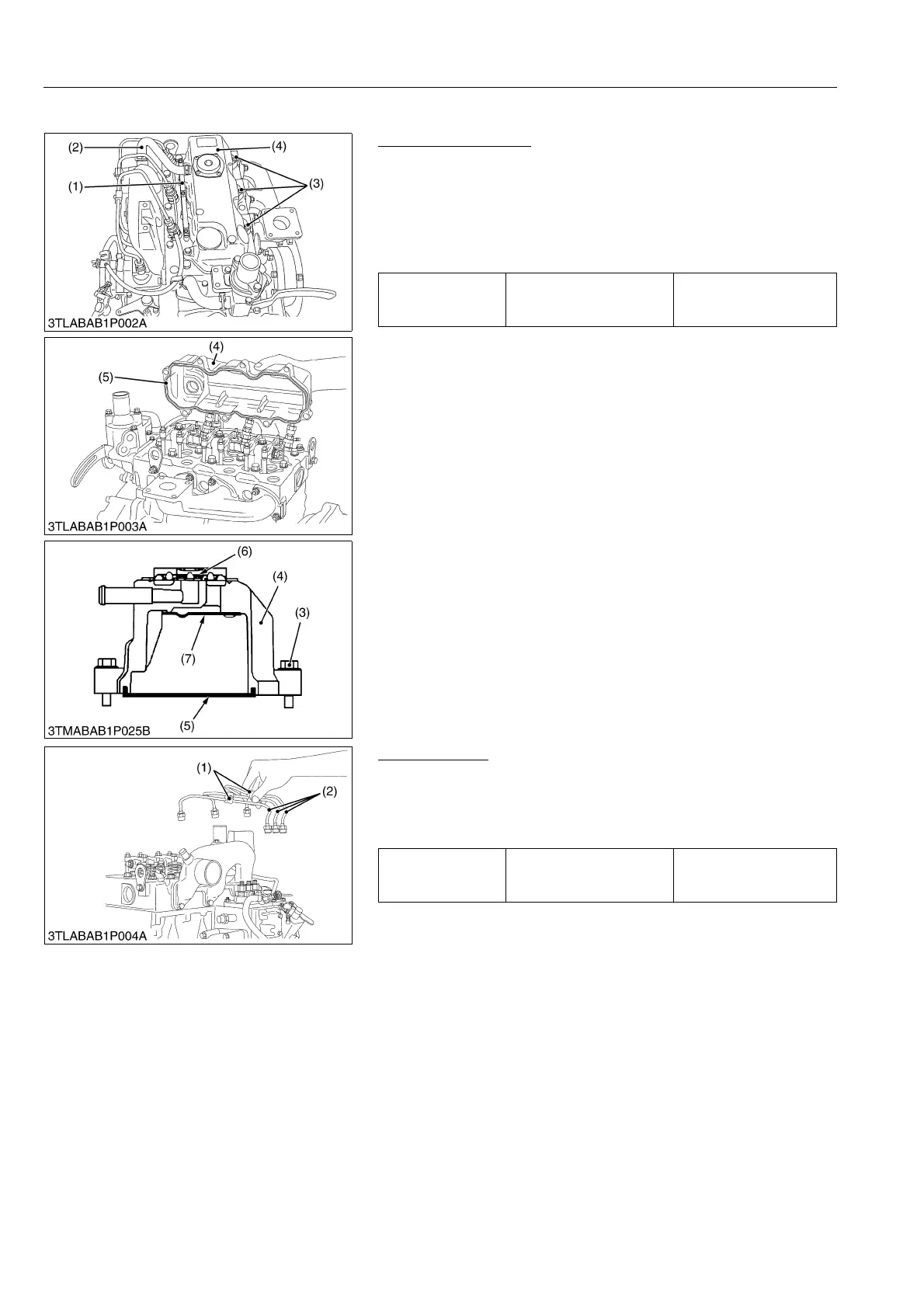

[3] CYLINDER HEAD AND VALVES
Cylinder Head Cover
1. Remove the lead (1).
2. Remove the breather hose (2).
3. Remove the head cover screws (3).
4. Remove the cylinder head cover (4).
(When reassembling)
• Check to see if the cylinder head cover gasket is not damaged.
9Y1211167ENS0029US0
Injection Pipes
1. Loosen the screws on the pipe clamps (1).
2. Remove the injection pipes (2).
(When reassembling)
• Blow out dust inside the pipes.
9Y1211167ENS0030US0
Tightening torque Cylinder head cover screw
9.81 to 11.2 N·m
1.00 to 1.15 kgf·m
7.23 to 8.31 lbf·ft
(1) Lead
(2) Breather Hose
(3) Head Cover Screw
(4) Cylinder Head Cover
(5) Cylinder Head Cover Gasket
(6) Breather Valve
(7) Plate
Tightening torque Injection pipe retaining nut
25 to 34 N·m
2.5 to 3.5 kgf·m
18 to 25 lbf·ft
(1) Pipe Clamp (2) Injection Pipe
To Next Page
