BRAKES
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
5-S4
4. CHECKING AND ADJUSTING

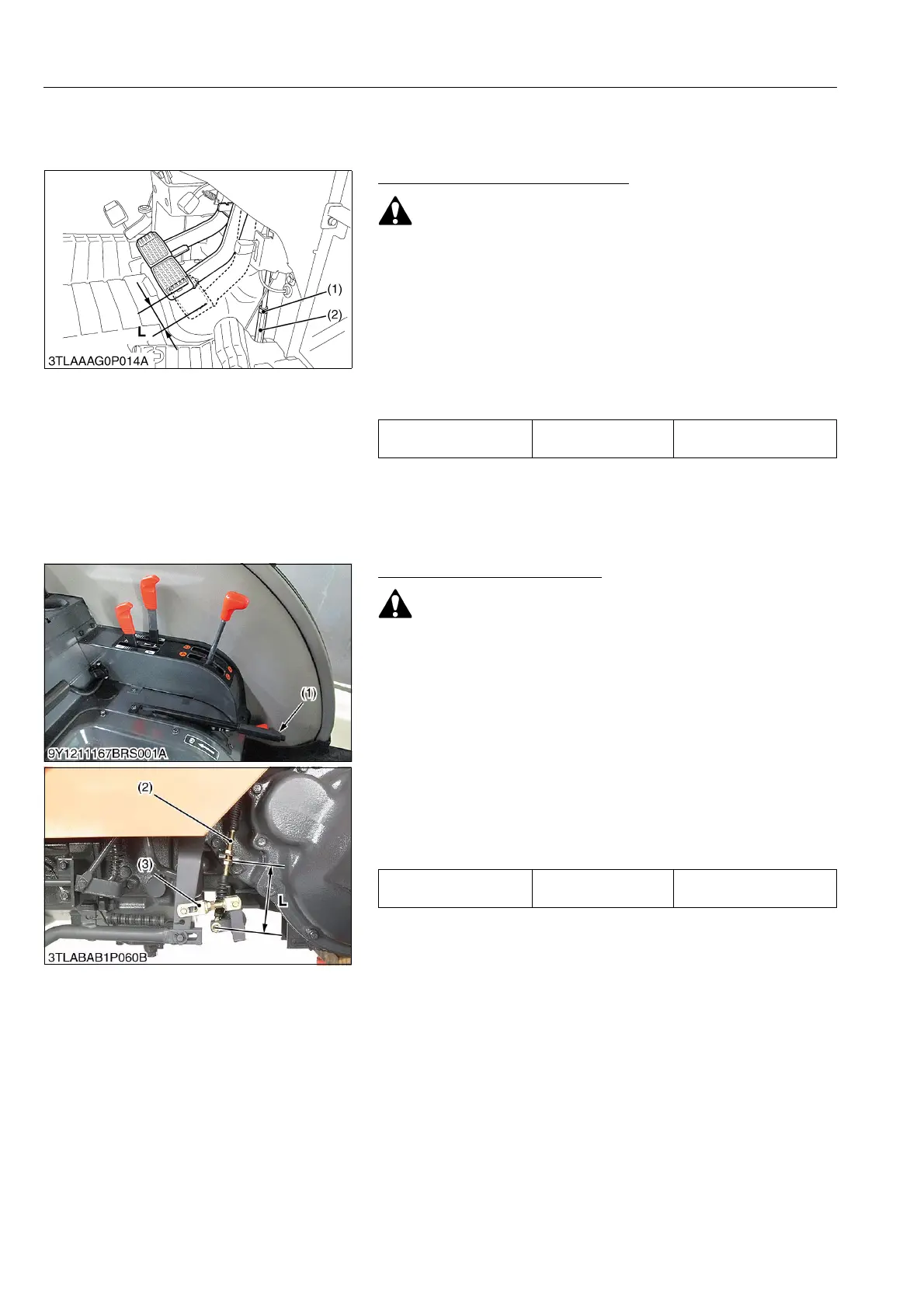

[1] BRAKE PEDAL
Checking Brake Pedal Free Travel
• Stop the engine and chock the wheels before checking
brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel "L"
at top of pedal stroke.
3. If the measurement is not within the factory specifications,
loosen the lock nut (1) and turn the turnbuckle (2) to adjust the
rod length within acceptable limits.
4. Retighten the lock nut (1) securely.
Keep the free travel in the right and left brake pedals equal.
9Y1211167BRS0004US0
[2] PARKING BRAKE LEVER
Parking Brake Lever Free Play
• Stop the engine and chock the wheels before checking
parking brake lever.
1. Release the parking brake lever (1).
2. Measure the length of "L".
3. Make sure there is free play in a right and left parking brake rod
(3).
4. Adjust the parking brake rod (3) length to become the same
when right and left free play is different at that time.
5. Pull the parking lever (1) by one notch. At that time make sure
there is no free play in the parking brake rods.
6. Adjust the parking brake cable (2) if there is free play in the
parking brake rod (3).
(Reference)
9Y1211167BRS0005US0
Brake pedal free travel
"L"
Factory specification
15 to 20 mm
0.59 to 0.79 in.
(1) Lock Nut
(2) Turnbuckle
L: Free Travel
Parking brake cable
length "L"
Factory specification
108 to 112 mm
4.25 to 4.41 in.
(1) Parking Brake Lever
(2) Parking Brake Cable
(3) Parking Brake Rod
