BRAKES
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
5-S5
5. DISASSEMBLING AND ASSEMBLING
[1] BRAKE PEDAL

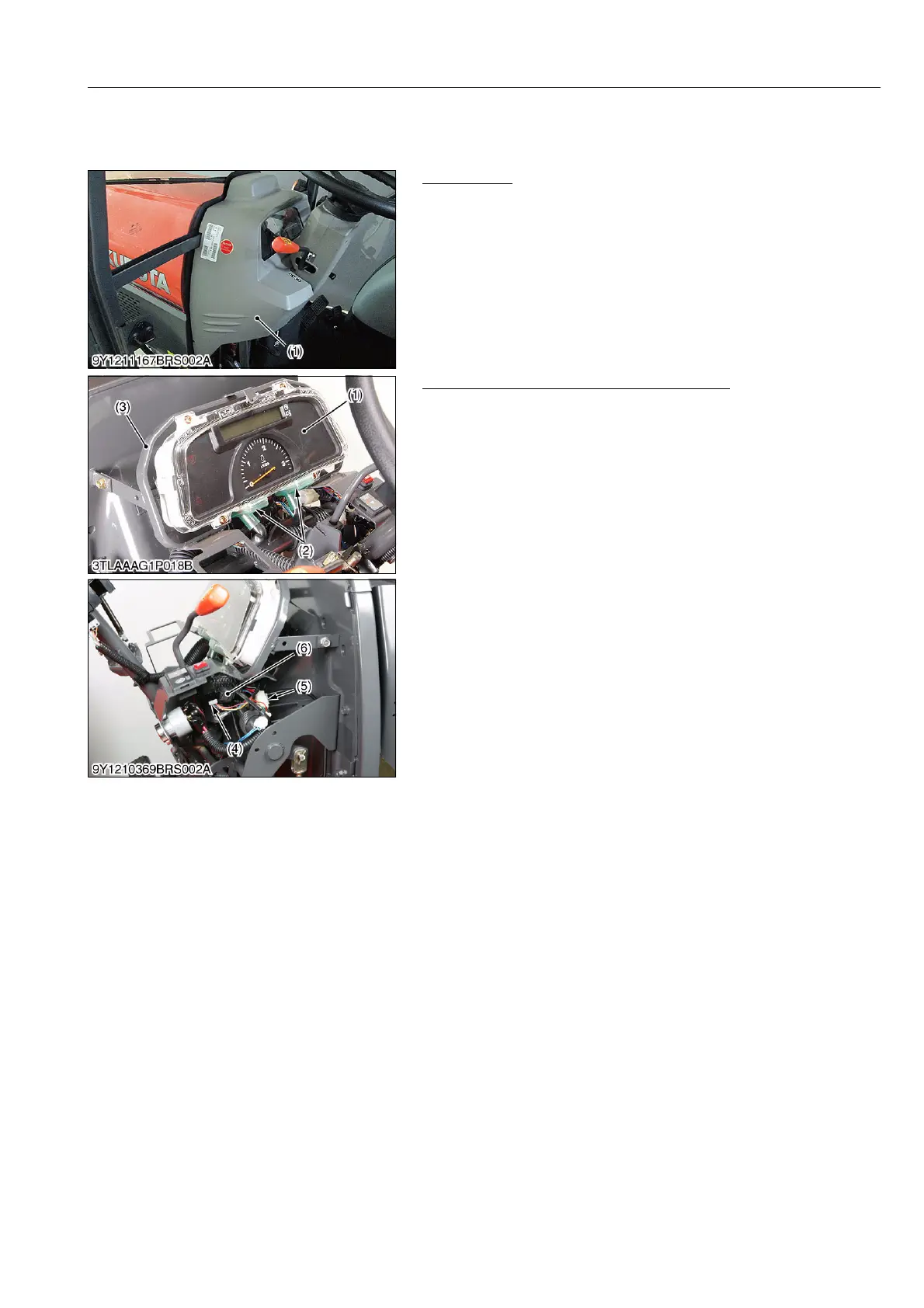

Panel Cover
1. Remove the panel cover (1).
9Y1211167BRS0006US0
Meter Panel (Electronic Instrument Panel)
1. Disconnect the hazard switch connector (4), main switch
connector (5) and mode switch connector (6).
2. Remove the meter panel (1) with panel frame (3) as a unit.
9Y1211167BRS0007US0
(1) Panel Cover
(1) Meter Panel
(2) Panel Connector
(3) Panel Frame
(4) Hazard Switch Connector
(5) Main Switch Connector
(6) Mode Switch Connector
KiSC issued 02, 2015 A
