ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S60

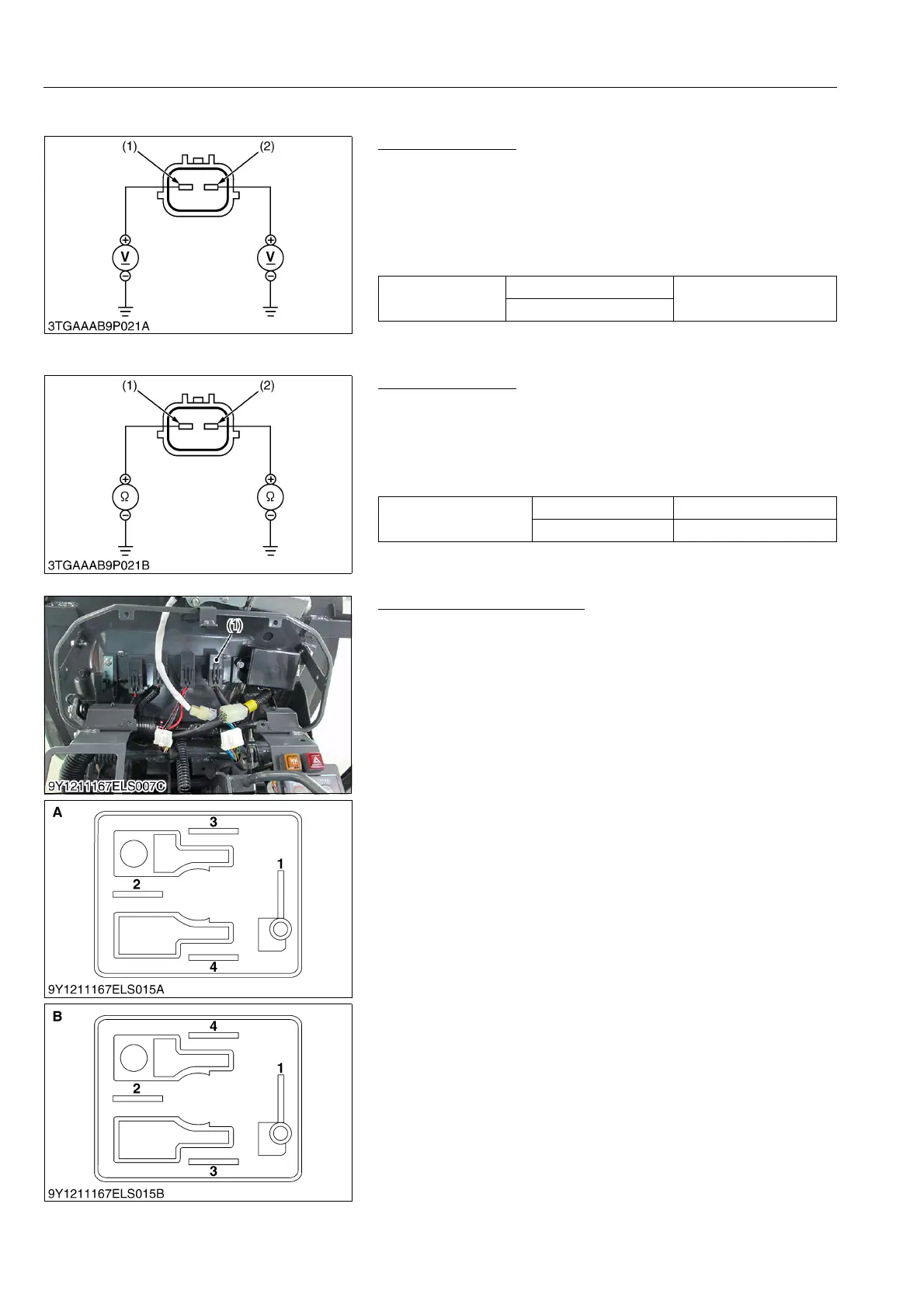

(5) Engine Stop Solenoid
Connector Voltage
1. Disconnect the 2P connector from engine stop solenoid.
2. Turn the main switch key to the "ON" position.
3. Measure the voltage between the terminal 1, terminal 2 and
body.
4. If the voltage differs from the battery voltage, the wiring harness
or main switch is faulty.
9Y1211167ELS0072US0
Stop Solenoid Coil
1. Disconnect the 2P connector from engine stop solenoid.
2. Measure the resistance between the terminal 1, terminal 2 of
engine stop solenoid and body.
3. If resistance differs from the factory specifications, the coil is
faulty.
WSM000001ELS0013US0
Engine Stop Solenoid Relay
1) Connector Voltage
1. Turn the main switch off.
2. Disconnect the engine stop solenoid relay (1).
3. Measure the voltage across the terminal 1 (Positive) and
chassis (Negative).
4. If the voltage differs from the battery voltage, the wiring harness
is faulty.
5. Turn the main switch on.
6. Measure the voltage across the terminal 3 (Positive) and
chassis (Negative).
7. If the voltage differs from the battery voltage, the wiring harness
is faulty.
2) Engine Stop Solenoid Relay
1. Remove the engine stop solenoid relay.
2. Apply battery voltage across terminals 1 and 2, and check for
continuity across terminals 3 and 4.
3. If continuity is not established across terminal 3 and 4, replace
the engine stop solenoid relay.
9Y1211167ELS0073US0
Voltage
Terminal 1 – Body
Approx. battery voltage
Terminal 2 – Body
(1) Terminal 1 (2) Terminal 2
Resistance
Terminal 1 – Body Approx. 0.375 Ω
Terminal 2 – Body Approx. 15.6 Ω
(1) Terminal 1 (Pulling Coil) (2) Terminal 2 (Holding Coil)
(1) Engine Sop Solenoid Relay A: Connector of Wire Harness Side
B: Connector of Engine Stop
Solenoid Relay
To Next Page
