CABIN
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
10-S43

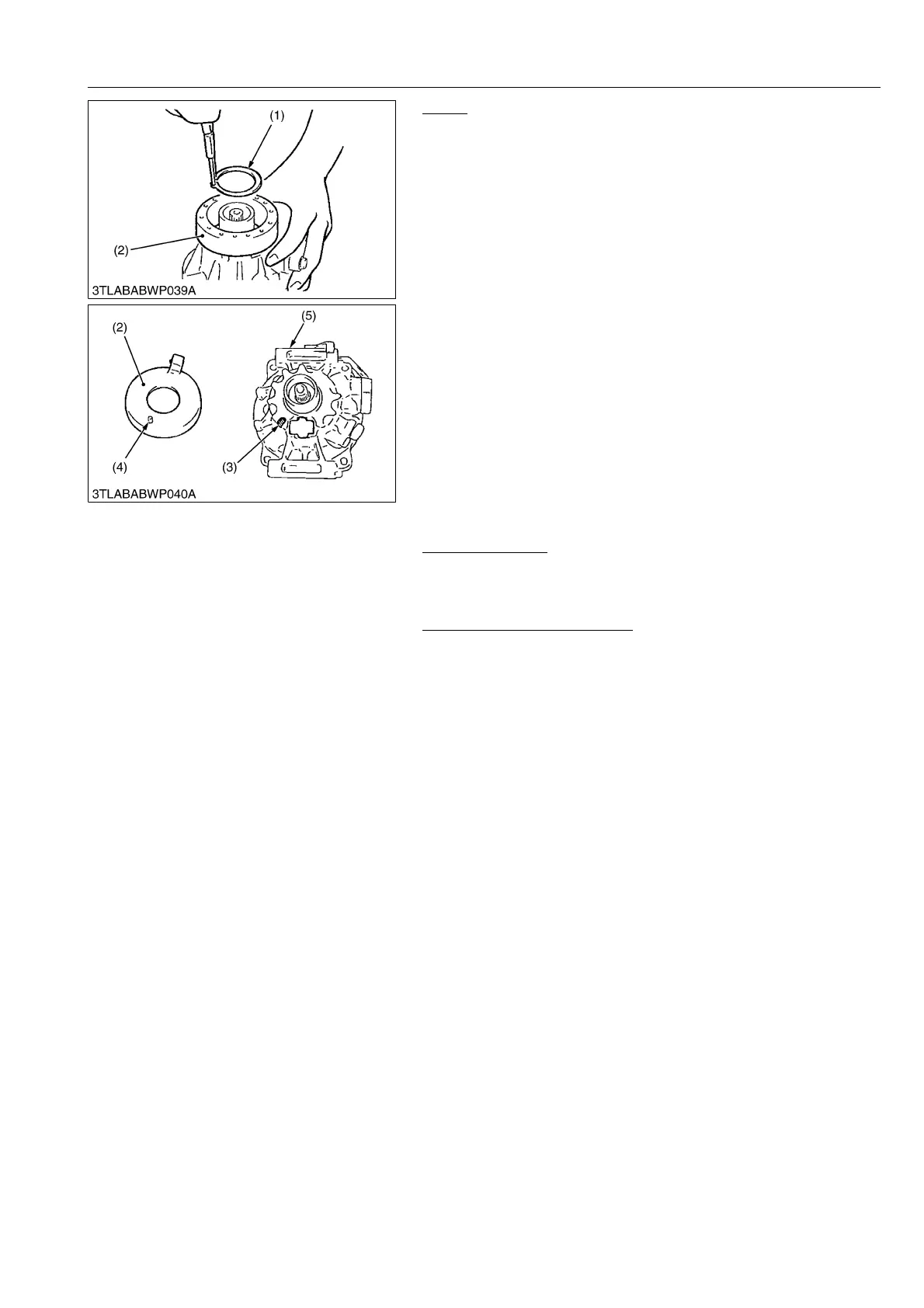

Stator
1. Remove the lead wire from compressor body.
2. Remove the external circlip (1).
3. Remove the stator (2).
(When reassembling)
• Do not use the circlip again.
• Assemble the circlip for the tapered side to become outside of
front housing.
• The width of expanding of circlip is set is boss of shaft as a
minimum.
• Match and assemble the concave part (3) of the front housing
(5) and the pin (4) of stator.
9Y1211167CAS0056US0
(3) Removing Air Conditioner Unit
Draining Coolant
Refer to "[2] DISASSEMBLING AND ASSEMBLING" in this
section.
9Y1211167CAS0057US0
Discharging Refrigerant Gas
Refer to "[2] DISCHARGING, EVACUATING AND CHARGING"
of "5. CHECKING AND CHARGING REFRIGERANT CYCLE" in
this section.
9Y1211167CAS0058US0
(1) External Circlip
(2) Stator
(3) Concave Part
(4) Pin
(5) Front Housing
To Next Page
