ENGINE
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
1-S43

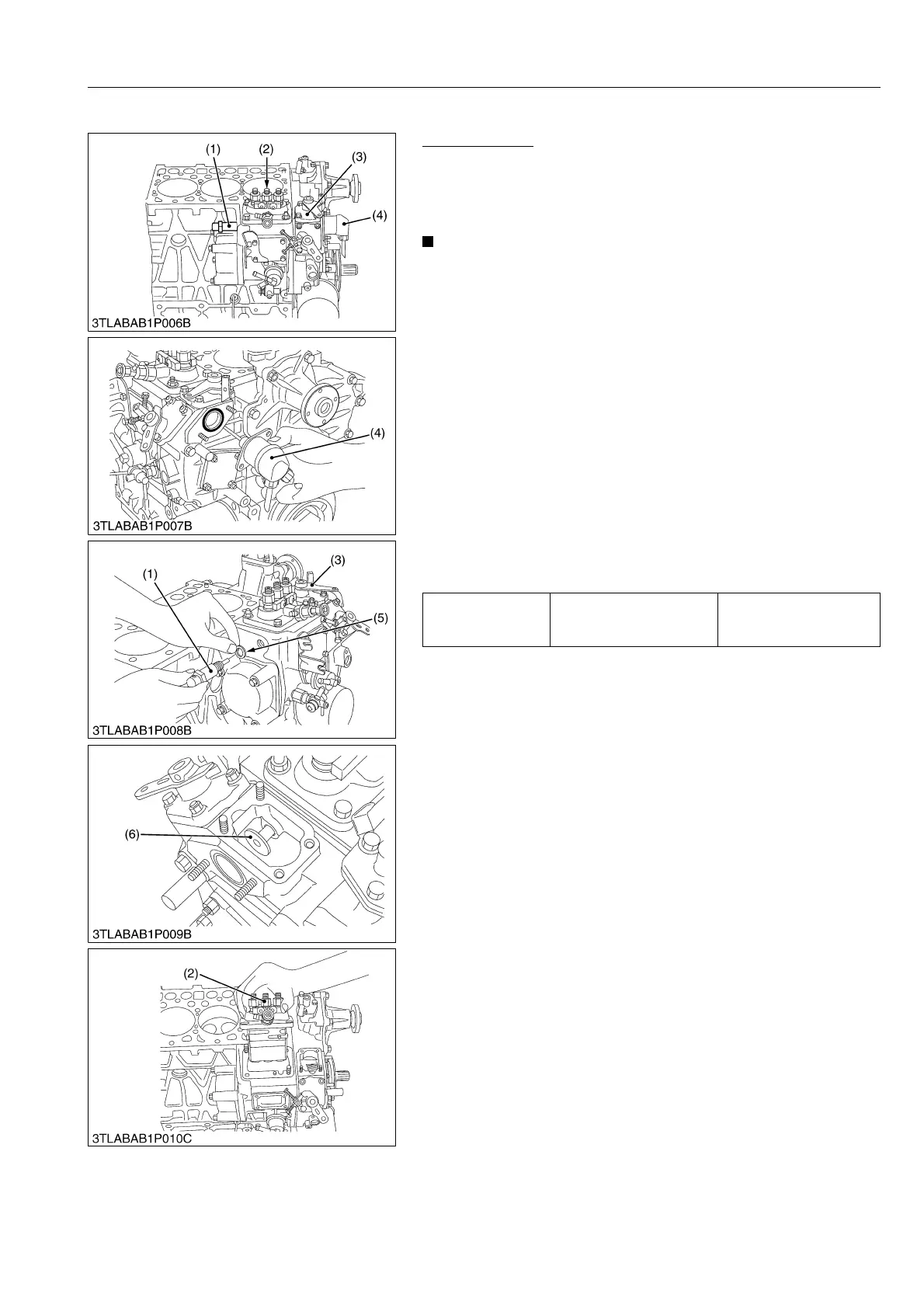

[4] TIMING GEARS, CAMSHAFT AND FUEL CAMSHAFT
Injection Pump
1. Remove the stop solenoid (4) and the hi-idling body (1).
2. Remove the engine stop lever (3) and the stop solenoid guide
(6).
3. Remove the fuel injection pump assembly (2).
• Before removing the injection pump assembly (2), be sure
to remove the stop solenoid (4), hi-idling body (1), engine
stop lever (3) and stop solenoid guide (6).
(When reassembling)
• Before attaching the stop solenoid (4), the hi-idling body (1) and
the stop solenoid guide (6), install the injection pump first into
position.
• Replace the hi-idling body gasket (5) with a new one.
• Before fitting the stop lever (3) to the gear case, install the stop
solenoid guide (6) first into position. Then attach the stop lever
and use it to see if it functions well.
• Before fitting the idling limiter in place, attach the stop solenoid
guide (6) and the engine stop lever (3) in their respective
positions.
• When installing the stop solenoid (4), be careful to keep the
O-ring in place.
• Be sure to insert the push rod of the stop solenoid into the hole
at the center of the solenoid guide (6).
9Y1211167ENS0037US0
Tightening torque Hi-idling body
45 to 49 N·m
4.5 to 5.0 kgf·m
33 to 36 lbf·ft
(1) Hi-idling Body
(2) Injection Pump Assembly
(3) Stop Lever
(4) Stop Solenoid
(5) Hi-idling Body Gasket
(6) Stop Solenoid Guide
To Next Page
