CABIN
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
10-S48
(5) Removing Heater Hoses
Battery, Front Grill, Skirt and Bonnet
Refer to "[2] DISASSEMBLING AND ASSEMBLING" in this
section.
9Y1211167CAS0067US0
Draining Coolant
Refer to "[2] DISASSEMBLING AND ASSEMBLING" in this
section.
9Y1211167CAS0068US0

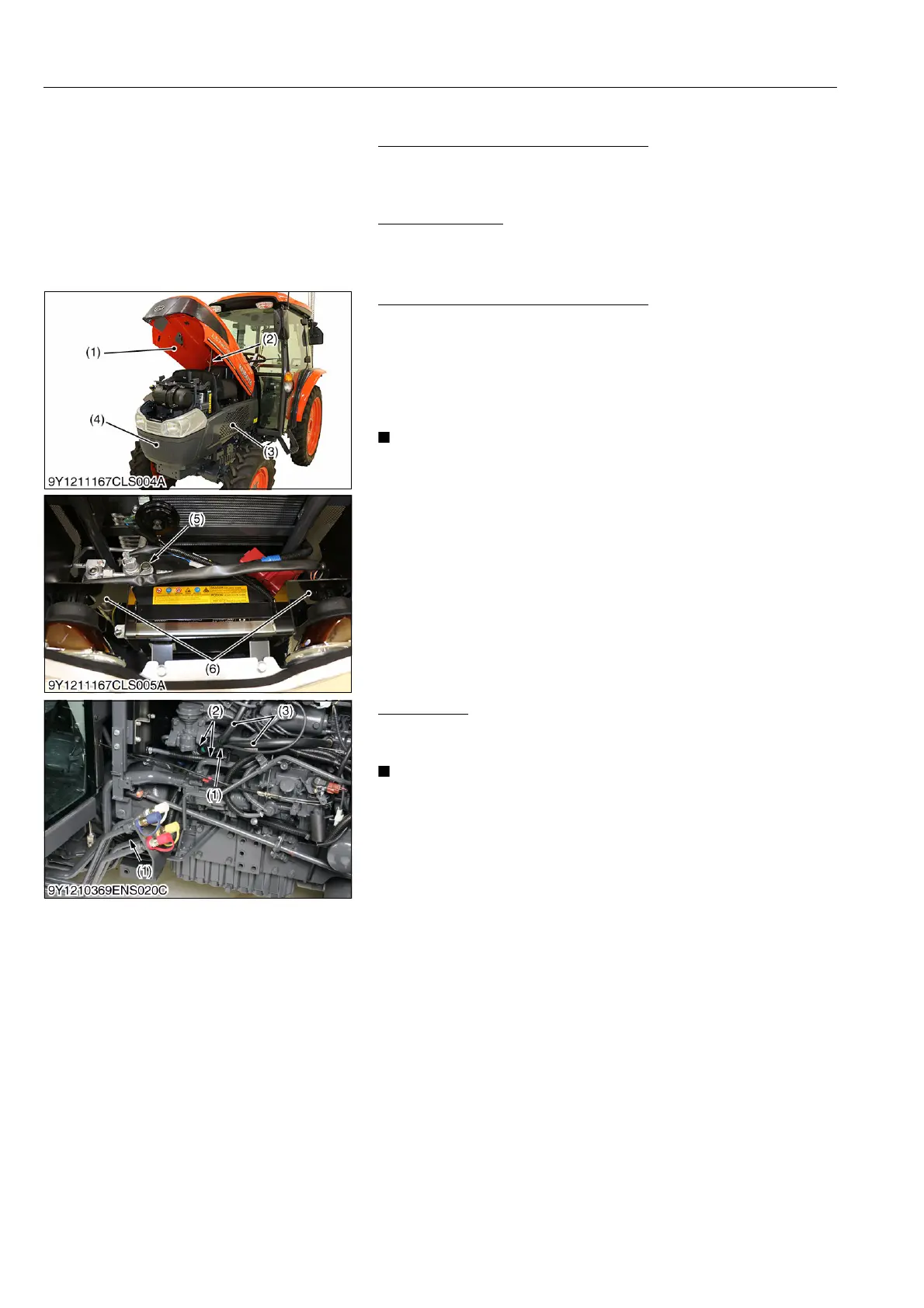

Battery, Front Grill, Skirt and Bonnet
1. Open the bonnet and disconnect the battery negative cable (5).
2. Disconnect the head light connector (6) and remove the front
grill (4).
3. Remove the left and right side skirts (3).
4. Disconnect window washer hose (2).
5. Remove the bonnet (1).
• When disconnecting the battery cords, disconnect the
negative cord first, when connecting, positive cord first.
9Y1211167CLS0007US0
Hose Clamp
1. Remove the hose bands (1).
2. Remove the hose clamp (2).
• Before disconnecting the heater hoses (3), put the parting
marks on the hoses for marking proper reconnecting.
3. Disconnect the heater hoses (3), then remove them under the
cabin.
(When reassembling)
• Connecting the heater hoses at their original position.
9Y1211167CAS0069US0
(1) Bonnet
(2) Window Washer Hose
(3) Skirt
(4) Front Grill
(5) Battery Negative Cable
(6) Head Light Connector
(1) Hose Band
(2) Hose Clamps
(3) Heater Hoses
