ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-M23

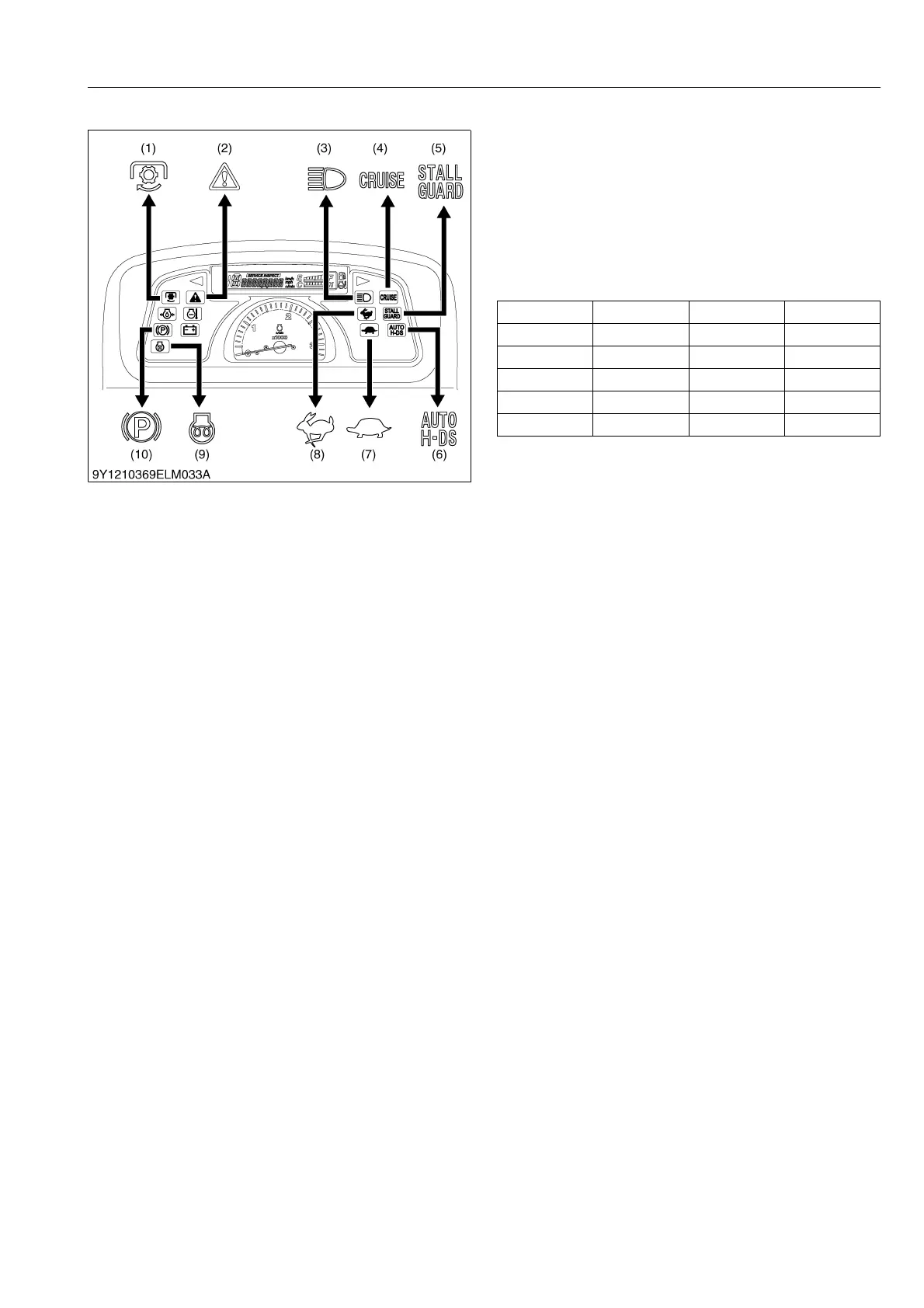

(5) Lamp Control
In this electronic instrument panel, the control of
various monitor lamps shown in figure are equipped in
addition to warning lamps.
(1) Rear PTO Lamp
If the PTO switch is "ON" position, PTO switch is
turned on, and monitor lamp will come on.
(2) Warning Lamp
If the error below are indicated, the warning lamp will
blink.
(3) High Beam Indicator Lamp
If the head light switch is turned to High beam
position, the indicator lamp comes on.
(4) Cruise Lamp (HST Model Only)
If the cruise control lever is at speed set position, the
cruise lamp will come on.
(5), (6) Stall Guard Lamp Auto H-DS Lamp (HST
Model Only)
If the HST mode select switch is pushed, and stall
guard lamp and Auto H-DS lamp will come.
(7) H-DS Low Range Speed Lamp
If the H-DS lever is pushed down, the H-DS low
speed lamp will come on.
(8) H-DS High Range Speed Lamp
If the H-DS lever is pushed up, the H-DS high speed
range lamp will come on.
(9) Glow Indicator Lamp
If the main switch is turned to "ON" position, the
glow indicator lamp comes on, and goes off
automatically when preheating is completed.
(10) Parking Brake Lamp
If the parking brake is applied, parking brake switch
is turned on and monitor lamp will come on.
9Y1211167ELM0060US0
ERROR-00 ERROR-61 ERROR-80 ERROR-87
ERROR-20 ERROR-62 ERROR-81 ERROR-90
ERROR-30 ERROR-63 ERROR-82 ERROR-91
ERROR-40 ERROR-64 ERROR-83 ERROR-92
ERROR-50 ERROR-65 ERROR-84 ERROR-93
ERROR-60 ERROR-66 ERROR-85 ERROR-94
To Next Page
