ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S37

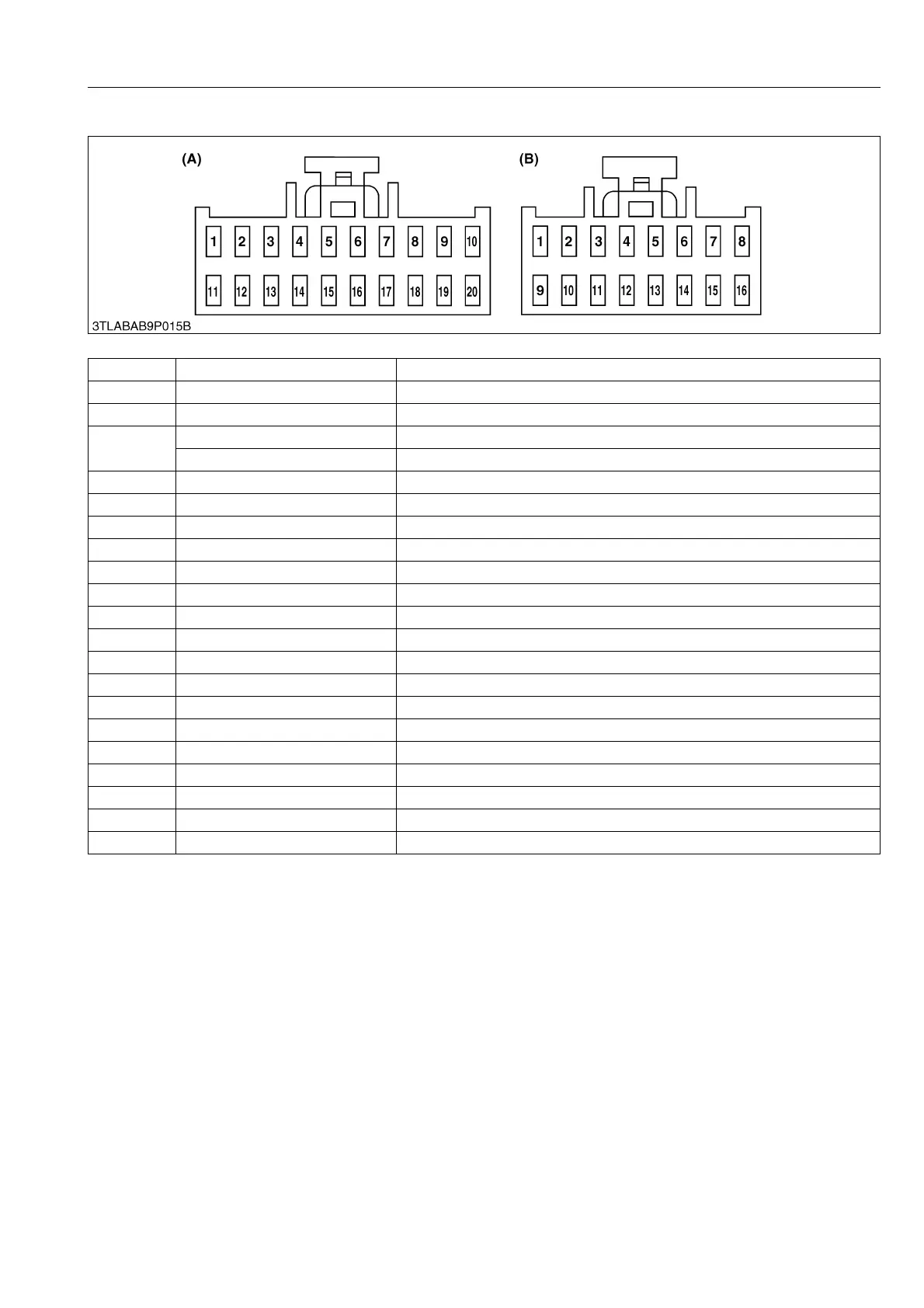

(2) Checking by Electronic Instrument Panel Connector
(A) Connector A (20P Connector) of Wire Harness Side
No. Color of wiring Terminal Name
1 –
2 Green / White Mid PTO (HST)
3
Black / Yellow Shuttle switch (Manual transmission, GST)
Orange / Black Clutch pedal switch (HST)
4 –
5 Black / Red PTO switch
6 –
7 Brown / Yellow Hi-beam
8 Blue Travel speed switch
9 Light green / Black Display mode switch
10 –
11 Black / Red Glow relay
12 Green / Blue Turn signal switch LH
13 Black / White Turn signal switch RH
14 Black / White Main switch ST
15 Blue / White 2 stage PTO switch (Manual transmission)
16 –
17 –
18 White / Red Charge
19 –
20 Blue Oil switch
