STEERING
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
7-S8

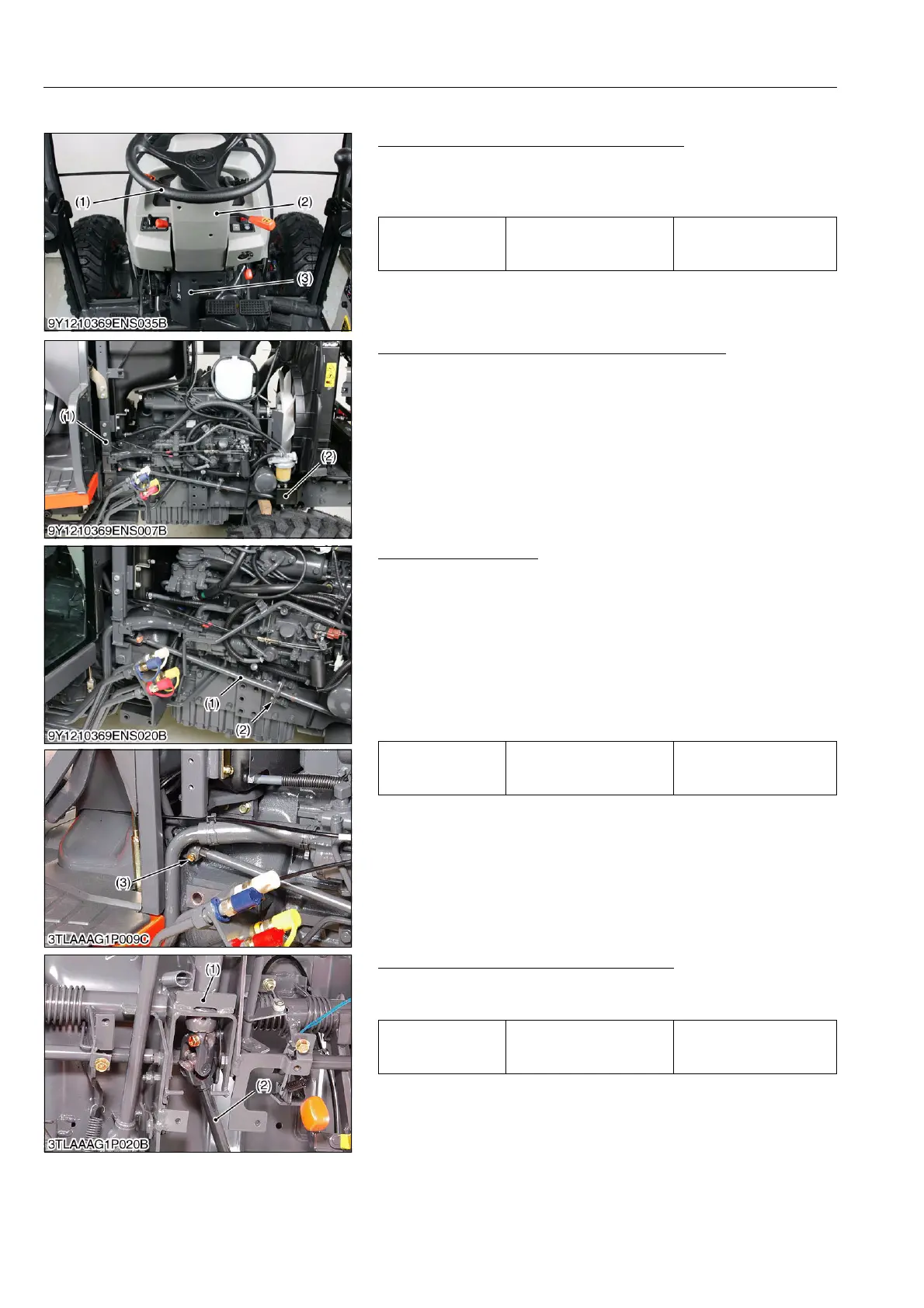

[3] STEERING LINKAGE
Steering Wheel and Steering Post Covers
1. Remove the steering wheel (1).
2. Remove the steering post covers (2), (3).
(When reassembling)
9Y1211167STS0010US0
Side Skirt, Fuel Tank Frame Support and Cover
1. Open the bonnet.
2. Remove the side skirt RH.
3. Remove the fuel tank frame support (1) and cover (2).
9Y1211167STS0011US0
Steering Joint Shaft 2
1. Remove the screw (3) and steering joint shaft support mounting
screw.
2. Remove the steering joint shaft 2 (1).
(When reassembling)
• Tighten the steering joint shaft support mounting screw after
adjusting the position of steering joint shaft support (2) for
smooth rotation of the steering wheel.
• Be sure to insert the screw (3) to the notch of the steering joint
shaft 2 (1).
9Y1211167STS0012US0
Steering Joint Shaft 1 and Steering Post
1. Remove the steering joint shaft 1 (2).
2. Remove the steering post (1).
9Y1211167STS0013US0
Tightening torque
Steering wheel mounting
nut
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
(1) Steering Wheel
(2) Steering Post Cover 1
(3) Steering Post Cover 2
(1) Fuel Tank Frame Support (2) Cover
Tightening torque Steering joint shaft screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Steering Joint Shaft 2
(2) Steering Joint Shaft Support
(3) Screw
Tightening torque Steering joint shaft screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Steering Post (2) Steering Joint Shaft 1
KiSC issued 02, 2015 A
