GENERAL
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
G-38

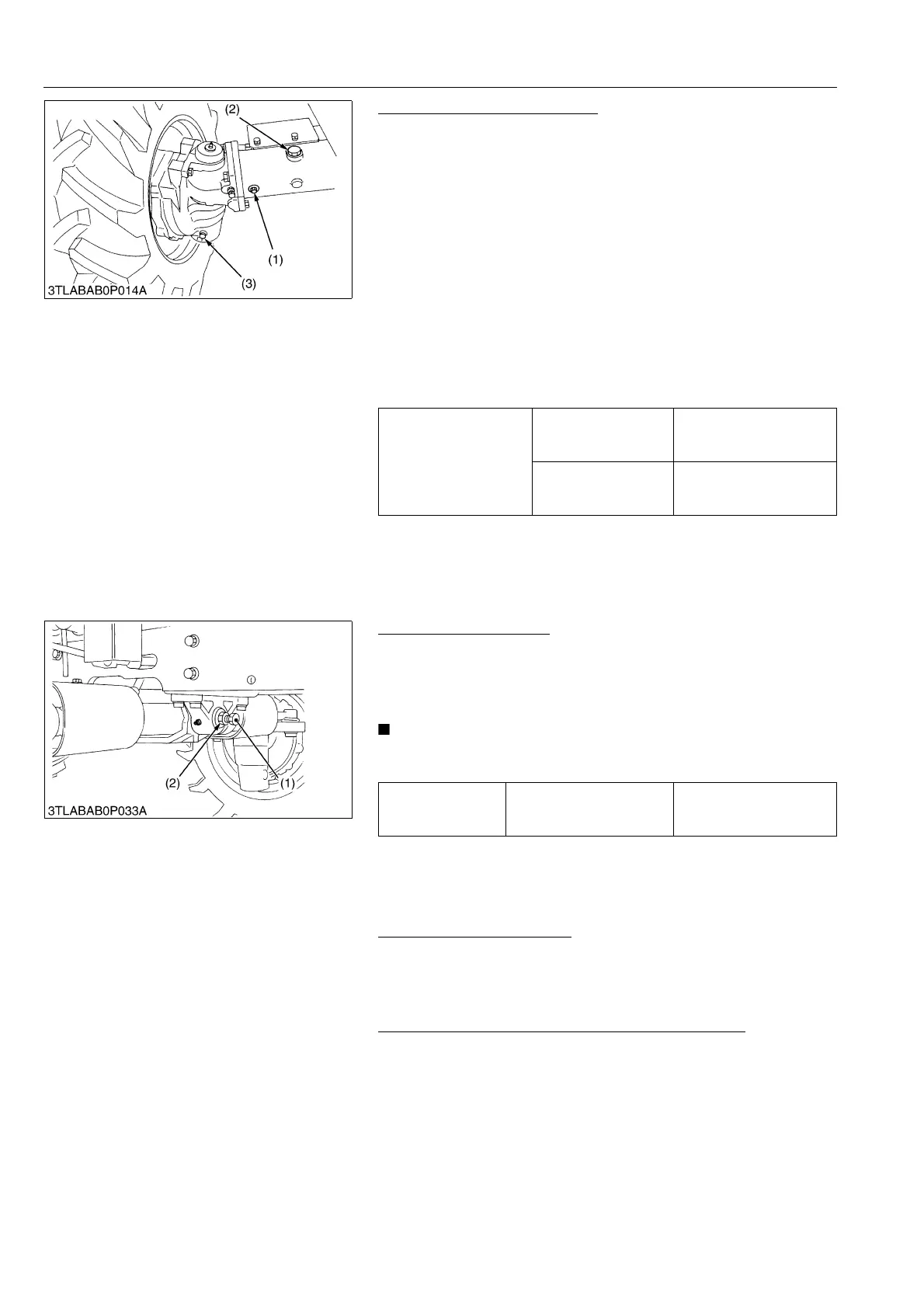

Changing Front Axle Case Oil
1. To drain the used oil, remove the right and left drain plugs (3)
and filling plug (2) at the front axle case and let out the oil
completely into the oil pan.
2. After draining, reinstall the drain plugs (3).
3. Gently pour new oil through the filling port. Required oil
quantities are written in the table below. Make sure to pour
specified amounts. If oil overflows before pouring any of the
specified amounts, wait a couple of minutes and try again.
4. After filling, reinstall the filling plug (2).
5. Run the vehicle a few minutes in order for the oil to flow through
the front axle case.
6. Remove the oil level check plug and check to see if the oil flows
out of its port. If not, add the oil through the filling port until it
flows out of the oil level check port.
7. Reinstall and tighten the oil level check plug (1) and filling (2).
9Y1211167GEG0052US0
[7] CHECK POINT OF EVERY 600 HOURS
Adjust Front Axle Pivot
1. Loosen the lock nut (2), tighten the adjusting screw (1) until
seated, then tighten the adjusting screw (1) with an additional
1/6 turn.
2. Retighten the lock nut (2).
• If the axle pivot pin adjustment is not correct, front wheel
vibration can occur causing vibration in the steering wheel.
9Y1211167GEG0053US0
[8] CHECK POINT OF EVERY 800 HOURS
Checking Valve Clearance
1. Refer to "1. ENGINE" servicing section.
9Y1211167GEG0054US0
[9] CHECK POINT OF EVERY 1500 HOURS
Checking Fuel Injection Nozzle Injection Pressure
1. Refer to "1. ENGINE" servicing section.
9Y1211167GEG0055US0
Front axle case oil
capacity
L3540-II
L4240-II
6.5 L
6.9 U.S.qts
5.7 Imp.qts
L5040-II
L5240-II
L5740-II
6.0 L
6.3 U.S.qts
5.3 Imp.qts
(1) Check Plug
(2) Filling Plug
(3) Drain Plug
Tightening torque Lock nut
59 to 98.0 N·m
6.0 to 10.0 kgf·m
44 to 72.3 lbf·ft
(1) Adjusting Screw (2) Lock Nut
