STEERING
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
7-S7

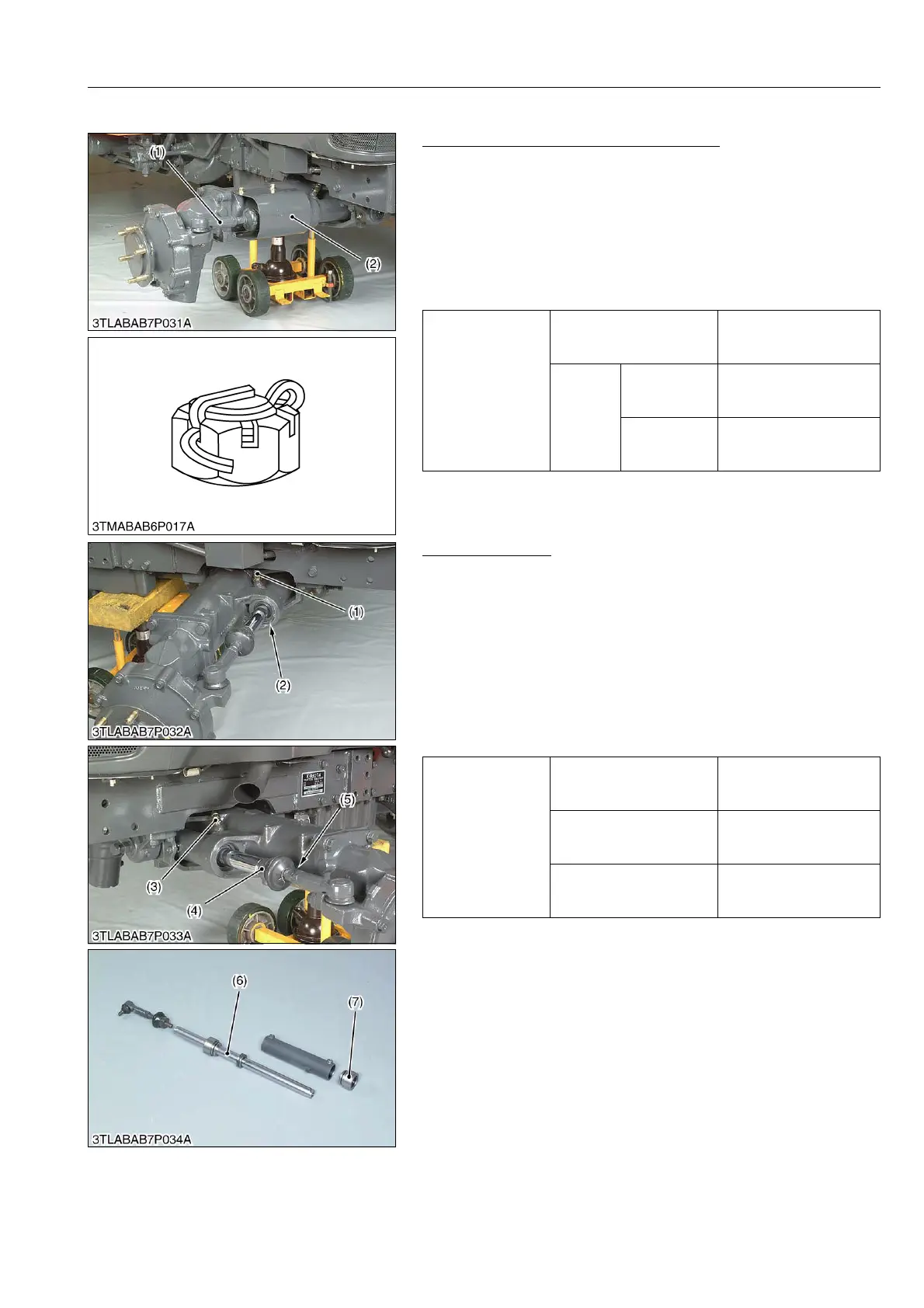

[2] STEERING CYLINDER
Front Wheel, Cylinder Cover and Tie-rod
1. Place a disassembly stand under the engine and support it with
a jack.
2. Remove the front wheel and cylinder cover (2).
3. Pull out the cotter pin and remove the tie-rod end slotted nut.
4. Disconnect the tie-rod (1).
(When reassembling)
• After tightening the tie-rod end slotted nut to the specified
torque, install a cotter pin as shown in the figure.
9Y1211167STS0008US0
Steering Cylinder
1. Disconnect the power steering hoses (1), (3) and remove the
elbows.
2. Disconnect the tie-rod joint LH (4).
3. Remove the internal snap ring (2).
4. Remove the steering cylinder to the left.
5. Remove the head cover (7) and draw out the cylinder rod (6).
(When reassembling)
• Apply transmission fluid to the oil seal and O-ring.
• Apply liquid lock (Three Bond 1342B or equivalent) to the thread
of tie-rod joint (4).
9Y1211167STS0009US0
Tightening torque
Front wheel mounting nut
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
Tie-rod
end
slotted
nut
L3540
40 to 45 N·m
4.0 to 4.6 kgf·m
29 to 33 lbf·ft
L4240, L5040,
L5240, L5740
157 to 176 N·m
16.0 to 18.0 kgf·m
116 to 130 lbf·ft
(1) Tie-rod (2) Cylinder Cover
Tightening torque
Power steering hose
retaining nut
25 to 29 N·m
2.5 to 3.0 kgf·m
18 to 21 lbf·ft
Tie-rod joint
167 to 196 N·m
17.0 to 20.0 kgf·m
123 to 144 lbf·ft
Tie-rod joint lock nut
167 to 196 N·m
17.0 to 20.0 kgf·m
123 to 144 lbf·ft
(1) Power Steering Hose RH
(2) Internal Snap Ring
(3) Power Steering Hose LH
(4) Tie-rod Joint
(5) Lock Nut
(6) Cylinder Rod
(7) Head Cover
To Next Page
