ENGINE
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
1-S27

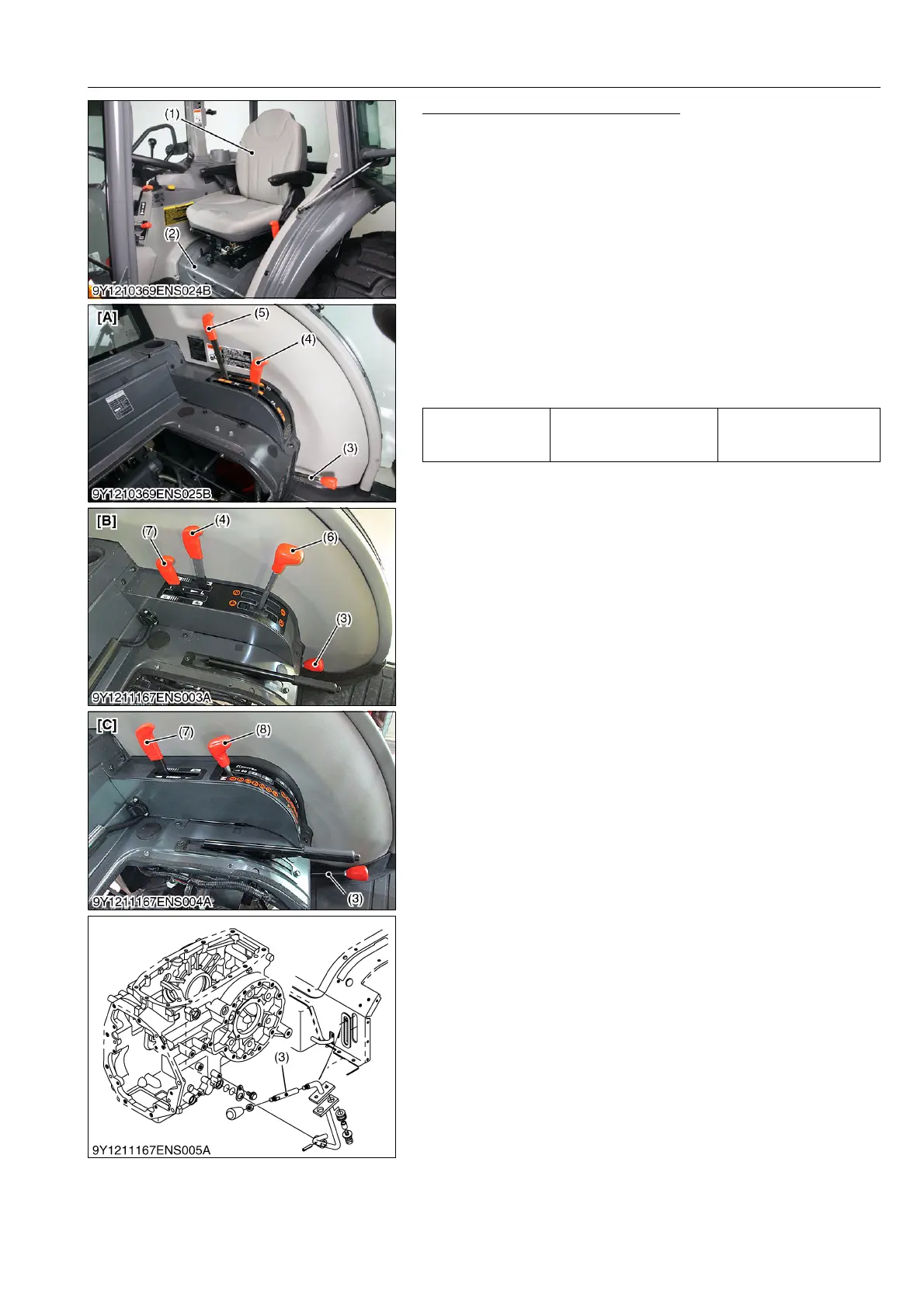

Seat, Seat Bracket and Lever Grips
1. Remove the seat switch connector.
2. Remove the seat (1).
3. Remove the seat bracket (2).
4. Remove the front wheel drive lever (3).
(HST Model)
5. Remove the grip for range gear shift lever (4).
6. Remove the grip for cruise lever (5).
(Manual Transmission Model)
5. Remove the grip for range gear shift lever (4).
6. Remove the grip for main gear shift lever (6).
7. Remove the grip for creep lever (7).
8. Remove the grip for PTO speed change lever.
(GST Model)
5. Remove the grip for creep lever (7).
6. Remove the grip for GST lever (8).
9Y1211167CLS0010US0
Tightening torque
Seat bracket mounting
bolts and nuts
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Seat
(2) Seat Bracket
(3) Front Wheel Drive Lever
(4) Range Gear Shift Lever
(5) Cruise Lever
(6) Main Gear Shift Lever
(7) Creep Lever
(8) GST Lever
[A] HST Model
[B] Manual Transmission Model
[C] GST Model
